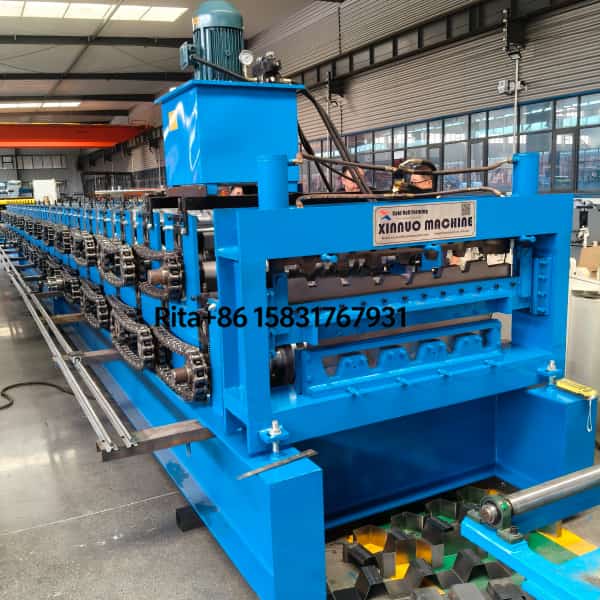

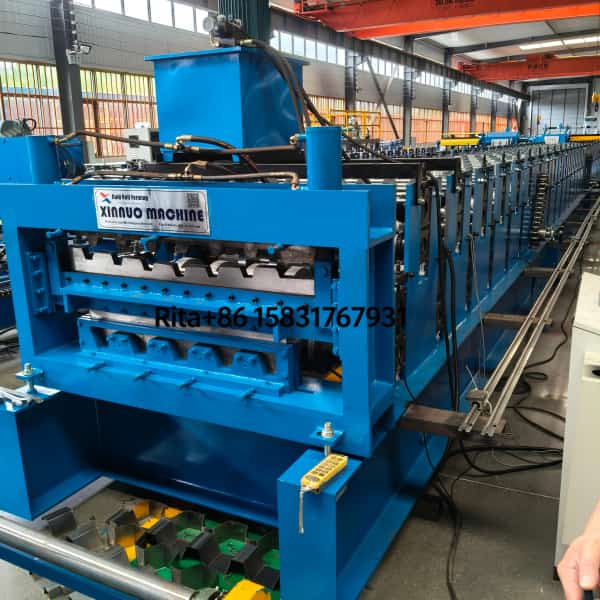

Automatic Double Layer Metal Floor Deck Roll Forming Machine / Galvanized Steel Deck Sheet Making Machine
1. Product Overview
The Automatic Double Layer Metal Floor Deck Roll Forming Machine, also known as Galvanized Steel Deck Sheet Making Machine, is a high-efficiency, multi-functional cold roll forming equipment independently developed and manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd. As a core product in the company’s complete roll forming equipment portfolio, this machine is specially designed for the mass production of high-strength metal floor deck sheets widely used in high-rise buildings, steel structure workshops, commercial complexes, and industrial construction projects. Integrating rolling forming, hydraulic cutting, automatic feeding, and intelligent control functions, the equipment realizes one-time continuous molding of double-layer metal floor deck panels, effectively solving the problems of low efficiency, high labor cost, and unstable product precision in traditional single-layer floor deck production equipment.
Manufactured in strict accordance with international quality management systems and industrial manufacturing standards, our double layer metal floor deck roll forming machine has become a mainstream popular equipment in the global building materials machinery market. Different from complex industrial production equipment, this floor deck making machine features simple operation, intelligent full-automatic production, and low failure rate, making it extremely suitable for novice investors and new entrepreneurs in the construction material processing industry. Whether for small-scale processing factories, medium-sized building material production enterprises, or project-oriented supporting production needs, this equipment can perfectly adapt to diverse production scenarios, with flexible production capacity and low entry threshold, bringing stable and high return on investment for beginners.
2. Core Product Advantages & Market Popularity
In the global construction and building materials market, metal floor deck sheets are indispensable core materials for modern steel structure buildings, widely used in floor bearing, load-bearing support, and building structural reinforcement. Supported by the booming global new construction, old building renovation, and new energy industrial plant construction industries, the market demand for galvanized steel floor deck sheets has maintained steady growth, driving the continuous popularity of our automatic double layer floor deck roll forming machine worldwide. Up to now, Xinnuo’s floor deck forming equipment has been sold and applied in 145 countries and regions across the globe, covering Southeast Asia, Europe, Africa, South America, and the Middle East, and has gained unanimous recognition and wide praise from global customers.
One of the most prominent advantages of this equipment is its novice-friendly investment attribute. Most traditional industrial roll forming machines require professional operation skills and complex debugging processes, which brings high threshold obstacles for new investors. In contrast, our double layer metal floor deck making machine adopts an integrated modular design and full intelligent automatic control system. The whole production process from raw material feeding, rolling forming, shaping to fixed-length cutting is fully automated, requiring only one ordinary worker to complete simple start-stop and parameter monitoring work. The equipment is equipped with a humanized operation interface, with simple parameter setting and intuitive operation logic, realizing zero-threshold operation for new users.
In addition to simple operation, the equipment also has outstanding advantages in production efficiency and product quality. The double-layer integrated design realizes simultaneous or switching production of two types of floor deck sheets, greatly improving production efficiency and enriching product types for investors. The formed metal floor deck panels have uniform specifications, smooth surface, high structural strength, and excellent load-bearing performance, fully meeting the national and international building structure load-bearing standards. Rely on stable mechanical performance and durable structural design, the equipment has a long service life and low daily maintenance cost, which can effectively reduce the later operation cost for investors and improve overall economic benefits.
3. Professional Manufacturing & International Quality Certification
Hebei Xinnuo Roll Forming Machine Co., Ltd. is a professional and experienced manufacturer focusing on cold roll forming equipment R&D, production and sales. With years of industry accumulation, the company has formed a complete product system covering construction roll forming equipment, new energy supporting equipment, warehousing profile equipment, and metal processing production lines. Our product lineup includes roof roll forming machines, C/Z purlin machines, sandwich panel lines, light steel keel machines, cable tray production lines, photovoltaic bracket lines, and floor deck roll forming machines, covering all core production needs of the construction and new energy industries.
All our equipment including the double layer galvanized steel deck sheet making machine strictly follows international quality production standards. The whole production process from raw material selection, precision processing, assembly debugging to factory inspection implements standardized management. The equipment has passed multiple authoritative international certifications including CE, ISO, and TUV SÜD, which fully guarantees the safety, stability and compliance of the equipment in global market sales and local use. Whether it is mechanical structural stability, production safety performance, or product forming precision, all indicators have reached the international advanced level, helping customers smoothly pass local market access inspections and expand global business.
4. Equipment Working Principle & Structural Features

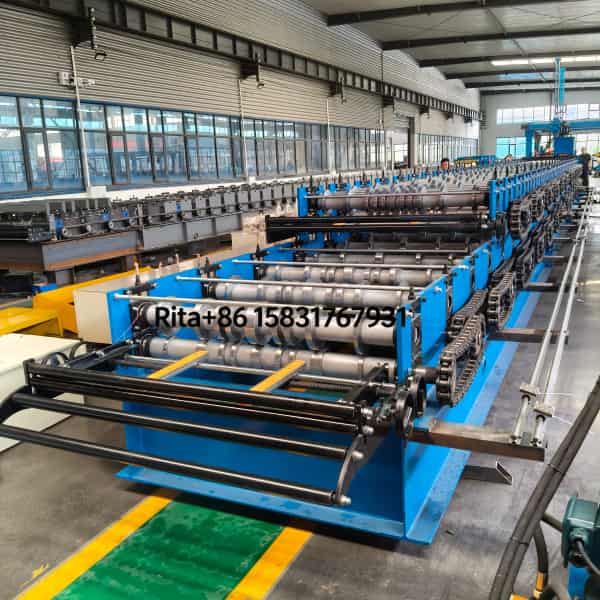

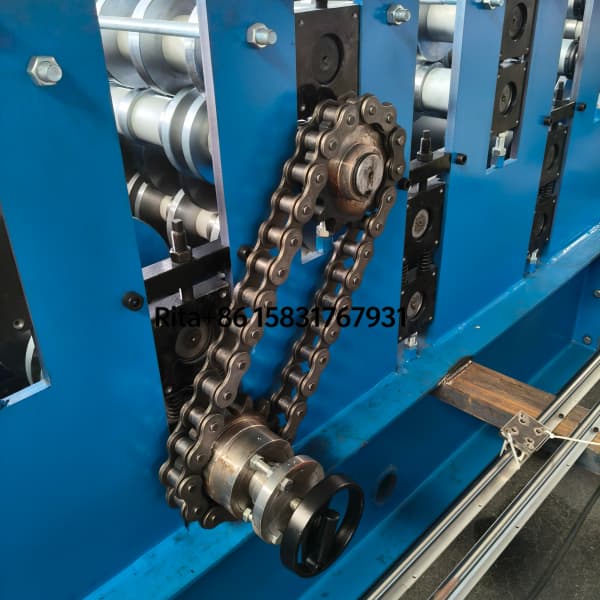

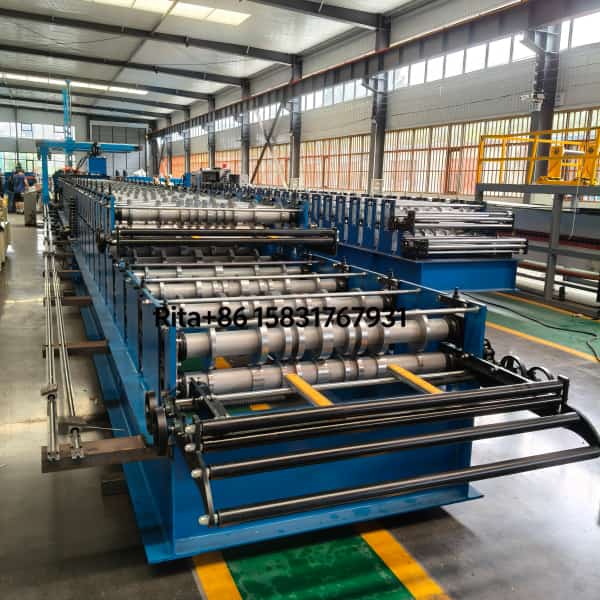

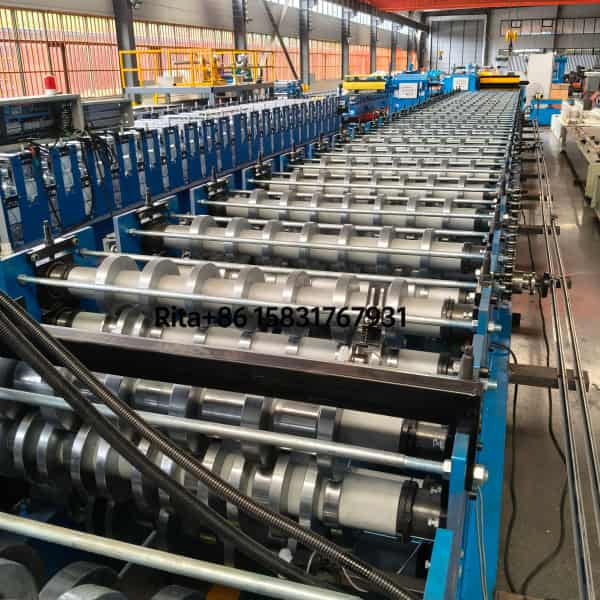

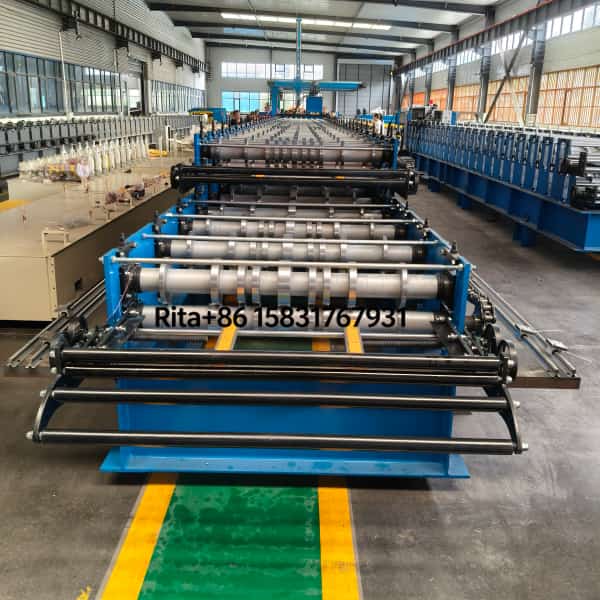

This automatic double layer floor deck roll forming machine is composed of multiple core components including automatic feeding system, precision rolling forming system, hydraulic cutting system, transmission system, and intelligent computer control system. The whole production flow is smooth and efficient. First, the raw galvanized steel coil is placed on the feeding rack, and the automatic feeding part realizes stable and uniform raw material conveying, avoiding material deviation and jamming problems during production. Then the steel sheet enters the multi-group rolling forming rollers, which gradually press and shape the metal sheet according to the set floor deck profile specification.

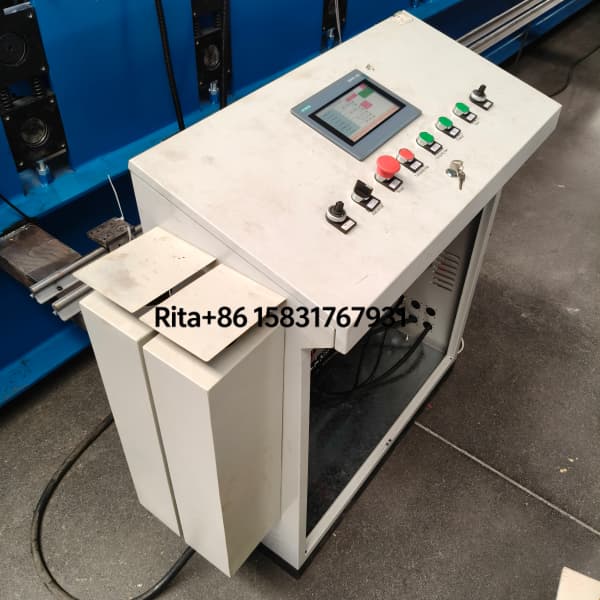

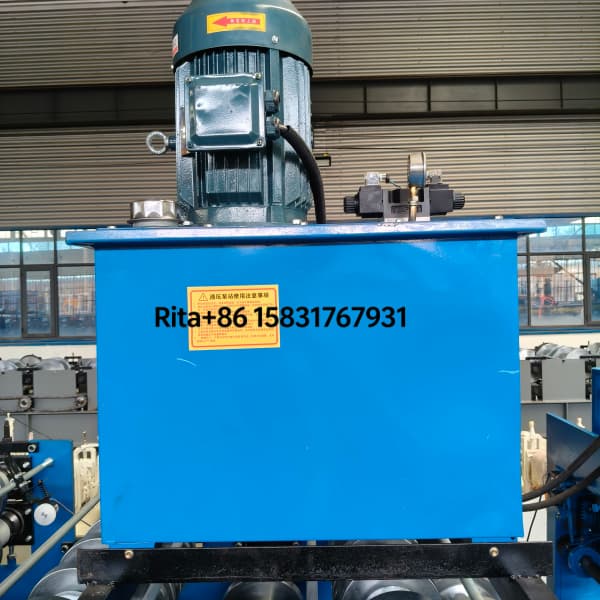

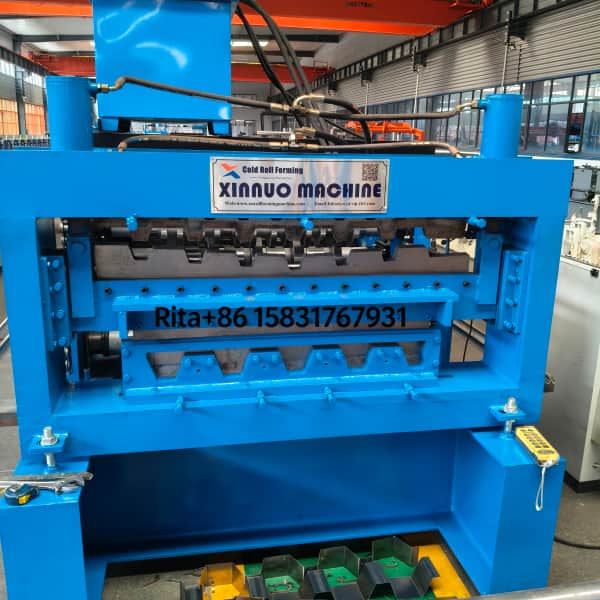

After the completion of rolling forming, the hydraulic cutting system performs fixed-length precise cutting according to the preset size parameters, ensuring that the size of each floor deck sheet is consistent and the incision is flat and burr-free. The whole production process is centrally controlled by the computer control cabinet, which supports parameter presetting, automatic counting, fault alarm, and data storage functions. The intelligent control system can accurately adjust production speed, forming size and cutting length, realizing high-precision and high-efficiency batch production.
5. Technical Parameter Table
|
Technical Item
|
Parameter Specification
|
|
Equipment Name
|
Automatic Double Layer Metal Floor Deck Roll Forming Machine / Galvanized Steel Deck Sheet Making Machine
|
|
Applicable Raw Material
|
Galvanized steel sheet, color steel sheet
|
|
Material Thickness Range
|
0.8mm - 1.5mm
|
|
Forming Speed
|
8 - 15m/min (adjustable)
|
|
Cutting Mode
|
Full-automatic hydraulic fixed-length cutting
|
|
Control System
|
PLC computer intelligent control, touch screen operation
|
|
Hydraulic System Pressure
|
10 - 12MPa
|
|
Forming Precision
|
±0.5mm
|
|
Equipment Power
|
15KW - 22KW (customizable)
|
|
Voltage Specification
|
380V/50Hz/3Phase (customizable)
|
|
Equipment Dimension
|
6500mm*1300mm*1600mm
|
|
Equipment Weight
|
3800KG
|
|
Certification
|
CE, ISO, TUV SÜD Certified
|
|
Application Fields
|
High-rise buildings, steel structure workshops, industrial plants, commercial buildings load-bearing floor deck production
|
6. After-sales Service & Global Support
As a professional global roll forming equipment supplier, Xinnuo provides one-stop full-cycle service for all customers. For this double layer floor deck roll forming machine, we provide free equipment installation guidance, operation training, technical debugging, and long-term after-sales maintenance service. Our professional technical team can provide remote online guidance and overseas on-site service support to solve equipment operation and maintenance problems for global customers in a timely manner. With stable equipment performance, professional technical support and perfect after-sales system, our machines have maintained high customer reputation and repeated purchase rate in 145 countries and regions, becoming the preferred floor deck forming equipment for global building material investors.
