C Z Purlin Roll Forming Machine with PLC Control System
The C Z Purlin Roll Forming Machine with PLC Control System is designed to produce C purlins and Z purlins for steel structure buildings, warehouses, workshops, factories and industrial construction projects. It adopts automatic roll forming, hydraulic cutting and PLC control to realize stable production, accurate length positioning and consistent purlin quality.
This C Z purlin roll forming machine is very popular in the global construction steel market. It is especially suitable for new investors who want to enter the steel structure material business. The machine can produce both C purlins and Z purlins on one production line, which helps customers save equipment investment and improve production flexibility.
As a professional manufacturer in the field of cold roll forming equipment, Hebei Xinnuo Roll Forming Machine Co., Ltd. provides reliable machinery solutions for construction, new energy, warehousing and steel structure projects. Xinnuo’s product portfolio includes roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines and metal embossing machines. Xinnuo equipment has been exported to 145 countries and regions, and the company follows international quality standards with CE, ISO and TUV SÜD certifications.
Product Overview
C purlins and Z purlins are important structural components in steel structure buildings. They are widely used for roof support, wall support and steel frame construction. The C Z purlin roll forming machine can automatically form steel coils into finished purlins with required width, height, thickness and length.
The production line usually includes a decoiler, feeding guide device, roll forming system, PLC control system, hydraulic cutting device and finished product table. The PLC control system allows operators to set purlin length, quantity and production parameters easily, making the machine suitable for both experienced factories and new investors.
Key Features
- C and Z purlin production: One machine can produce both C purlins and Z purlins.
- PLC control system: Supports automatic length setting, counting and production control.

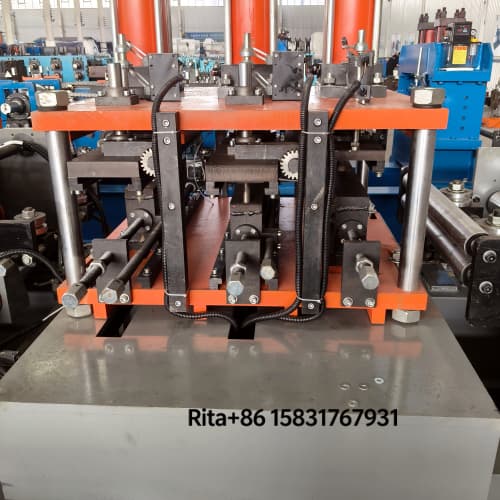

- Hydraulic cutting: Provides clean cutting and stable length accuracy.
- Automatic size adjustment: Purlin width and height can be adjusted according to customer requirements.

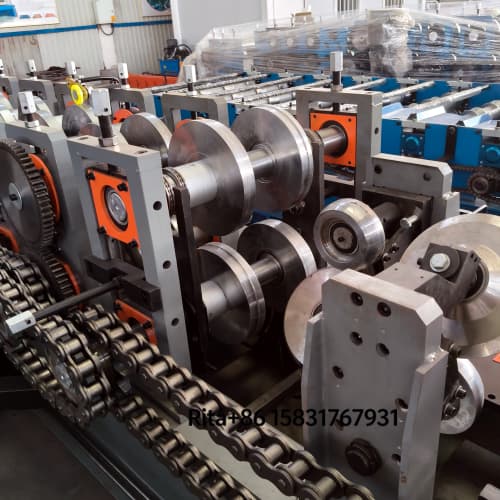

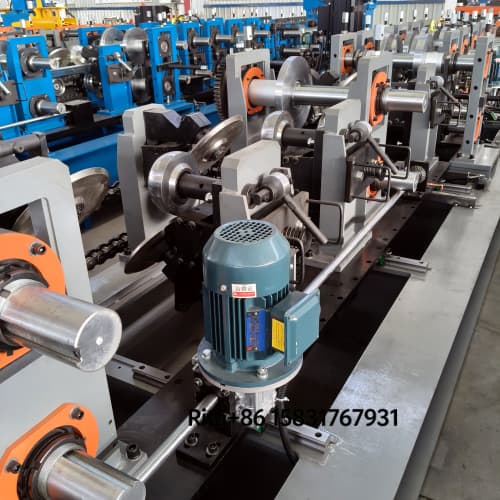

- Stable roll forming: Multi-pass roll forming ensures smooth profile shaping.
- Wide application: Suitable for steel structure buildings, warehouses, workshops and industrial projects.
- Export-ready quality: Manufactured under international quality management with CE, ISO and TUV SÜD certifications.
- Suitable for new investors: Practical design and stable performance make it suitable for first-time buyers in the global construction steel market.
Machine Structure

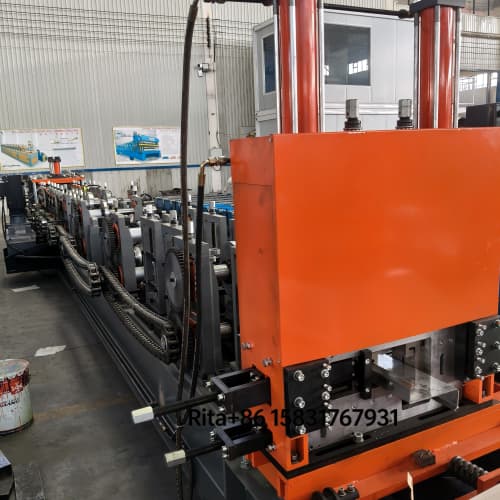

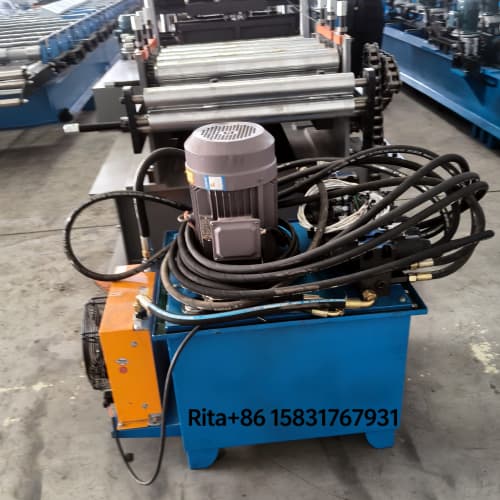

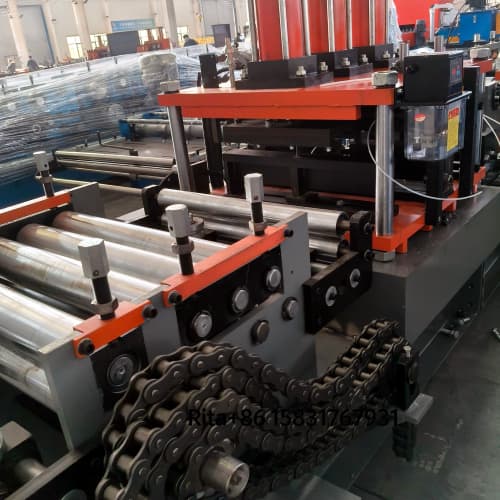

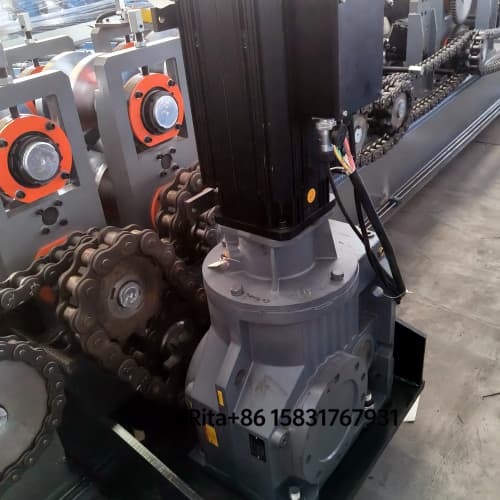

The C Z purlin roll forming machine with PLC control system mainly includes a decoiler, material feeding device, roll forming station, PLC electric control cabinet, hydraulic system and cutting unit. The machine layout can be adjusted according to customer workshop size and production requirements.
Technical Parameters
| Item | Specification |
|---|---|
| Machine Name | C Z Purlin Roll Forming Machine with PLC Control System |
| Suitable Material | Galvanized steel coil, cold rolled steel coil |
| Material Thickness | 1.5–3.0 mm (can be customized) |
| Purlin Type | C purlin and Z purlin |
| Purlin Width | About 100–300 mm (depends on model) |
| Purlin Height | About 80–300 mm (depends on model) |
| Forming Speed | About 8–15 m/min |
| Control System | PLC control with touch screen |

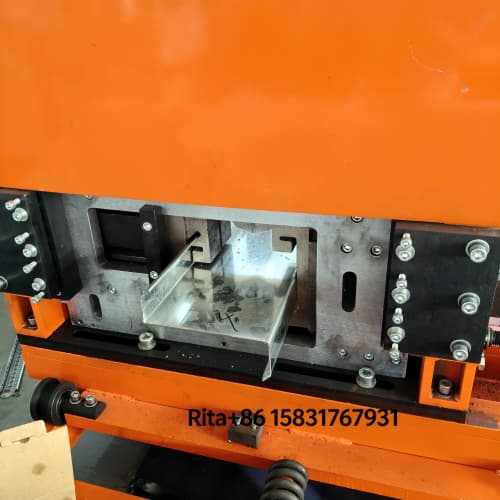

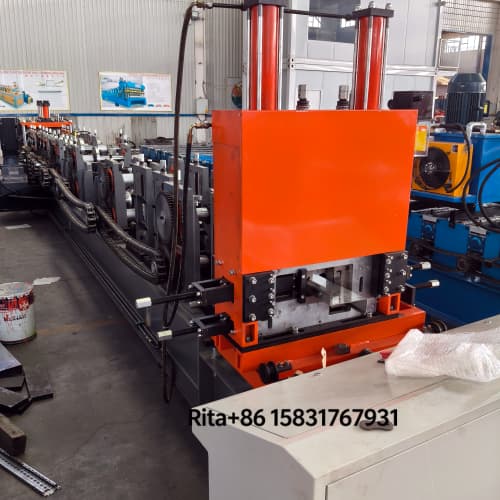

| Cutting Method | Hydraulic cutting |
| Roller Material | 45# steel with chrome plating |
| Main Frame | H steel and steel plate welded structure |
| Voltage | 380V, 3-phase, 50Hz (customizable) |
| Total Power | About 11–15 kW (subject to final design) |
| Application | Steel structure buildings, warehouses, workshops and industrial projects |
Note: The above parameters are reference data. Final specifications can be confirmed according to customer purlin size, material thickness, production speed and workshop layout.
Applications
This C Z purlin roll forming machine with PLC control system is widely used in:
- Steel structure building projects
- Warehouse and workshop construction
- Factory roof and wall support systems
- Industrial building steel frame projects
- Light steel structure construction
- Construction steel material production
Why Choose Xinnuo
Hebei Xinnuo Roll Forming Machine Co., Ltd. focuses on cold roll forming equipment and has rich experience in exporting machinery worldwide. The company provides professional technical support, machine debugging guidance and after-sales service for overseas customers. With stable performance, practical design and international certifications, Xinnuo C Z purlin roll forming machines help customers improve production efficiency and expand their local construction steel business.
