CE Certification Three Layer Roof Wall Panel Machine
Delivery time is: 45 working days.
Payment method:
TT,40% deposit, and the remaining balance shall be paid before delivery.
Warranty period : one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
whatsapp:+86 15831767931
Email:rita@hbxinnuorollforming.com
Hebei Xinnuo Roll Forming Machine Co.,ltd is a professional, reliable manufacturer specializing in full-series cold roll forming equipment. Our complete product portfolio covers nearly all core demands of metal processing and construction industries, including roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door frame forming machines, floor decking roll formers, cable tray production lines, photovoltaic bracket forming lines, storage shelf column equipment, metal slitting lines, cut-to-length cutting lines, colored stone coated roof panel machines, metal embossing machines, and diversified customized roll forming machinery. Our production lines can perfectly match manufacturing scenarios across construction engineering, new energy photovoltaic industry, warehousing and logistics storage fields, bringing high-efficiency metal forming solutions for global factory owners.
After years of overseas market layout, Xinnuo’s cold roll forming equipment has been exported to more than 145 countries and regions all over the world. Every machine gains consistent high praise and trust from global clients by virtue of ultra-stable running performance, mature production technology and thoughtful full-cycle professional after-sales service. To guarantee consistent product quality meeting global market access standards, our whole production system strictly complies with international quality management specifications, and all core machines have passed authoritative global certifications including CE, ISO 9001 and TUV SÜD, which eliminates all barriers for cross-border sales and factory registration for overseas investors.
The CE Certification Three Layer Roof Wall Panel Machine is one of our most popular multi-functional cold roll forming equipment developed independently by Xinnuo technical team. Different from single-layer metal tile forming machines, this three-in-one integrated forming unit can produce three different specifications of metal roof sheets and wall panels within one single machine set, greatly saving factory workshop space, reducing equipment purchasing cost and lowering manual operation labor input for metal sheet processing factories. It integrates uncoiling, material guiding, multi-pass roller forming, hydraulic fixed-length cutting, finished product output into one automatic production line, realizing fully unattended continuous production after parameter setting on the control terminal.
This three layer roof wall panel roll forming machine has become a mainstream hot-selling model in global metal building materials market, covering Southeast Asia, Africa, South America, Middle East, Eastern Europe and Central Asia markets. For new entrepreneurs who just step into metal tile processing business, this equipment is the most cost-effective investment project with multiple prominent advantages. Firstly, the three-layer integrated design avoids the need to purchase three separate single-layer machines, which greatly cuts down initial investment budget for novice investors with limited startup funds. Secondly, our machine adopts simplified human-computer operation logic; workers without rich mechanical operation experience can master complete production operation within half a day after simple training, lowering the threshold of labor recruitment and production management for new factories.
Thirdly, the finished metal roof and wall panels produced by this machine have wide market demand. Metal color steel tiles, wall cladding panels are essential materials for factory workshops, agricultural barns, residential villas, temporary container houses, photovoltaic supporting buildings, logistics warehouses, so new investors can quickly open local sales channels and realize stable capital return. In addition, Xinnuo provides one-stop supporting services for every new buyer, including factory layout planning, machine installation guidance, on-site technical training, long-term spare parts supply and remote fault troubleshooting support, completely solving all worries for startup investors who lack overseas mechanical operation experience.

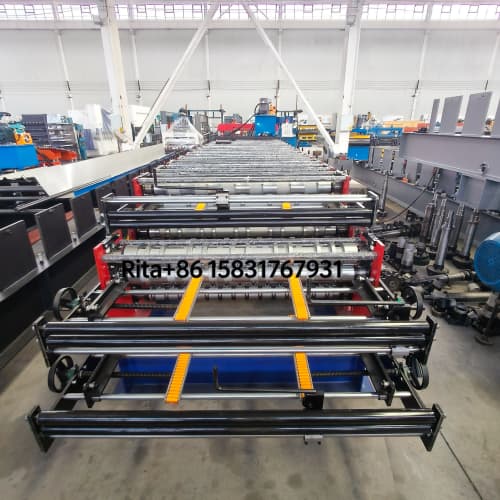

The front-end feeding module is equipped with heavy-duty hydraulic uncoiler with 5-ton loading capacity, which fits galvanized steel coil, color coated steel coil, aluminum alloy coil with inner diameter 450-550mm and outer diameter up to 1600mm. Double guide rollers are installed on the feeding platform to fix raw steel strips, effectively prevent sheet scratch and deviation during conveying, ensuring neat and parallel entering of raw materials into the forming host, and uniform size of finished panels.

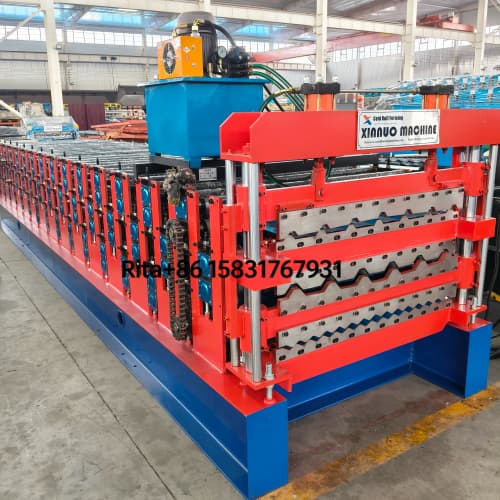

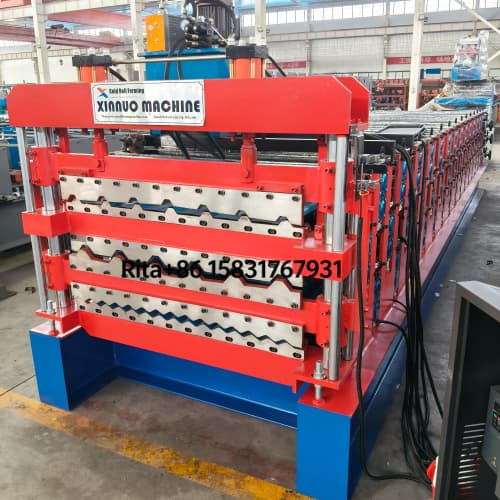

The forming host adopts medium plate integral welding structure, with high hardness 45# steel chrome-plated forming rollers and 40Cr solid main shaft, which features strong wear resistance and long service life. Multiple groups of forming roller stations are arranged inside the machine to complete three types of roof and wall panel profiling at one time. Chain transmission mode ensures stable sheet conveying speed without slipping or jamming during continuous high-speed production.

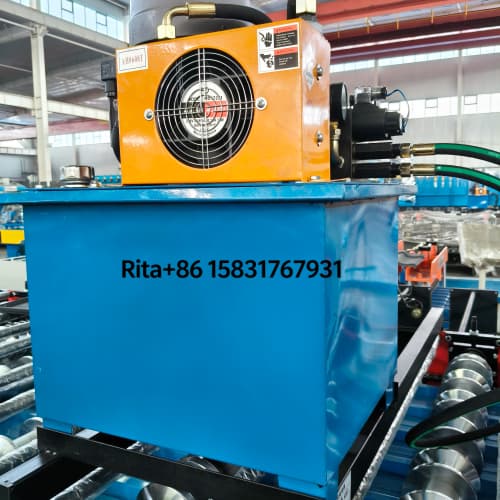

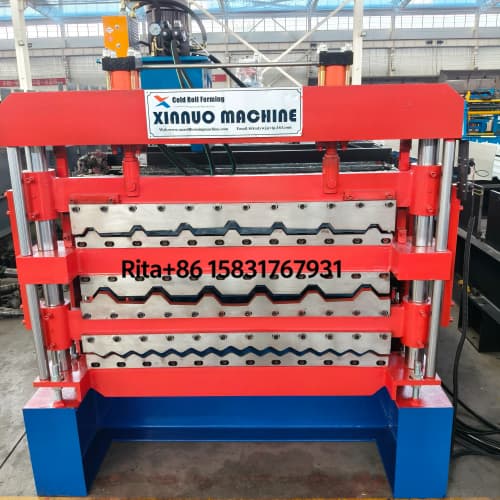

The supporting independent hydraulic power station uses 46# anti-wear hydraulic oil, matched with large-flow oil pump and cooling fan. The hydraulic cutting cutter blade is made of Cr12MoV quenched alloy steel with heat treatment hardness HRC58-62, cutting tolerance controlled within ±1mm. PLC automatic fixed-length positioning realizes instant hydraulic shearing after reaching preset panel length, with stable cutting pressure and smooth incision without burr, meeting high-standard processing requirements of construction metal panels.

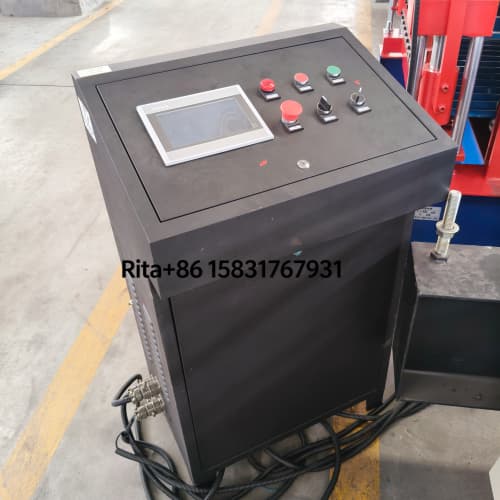

The whole production line is controlled by Taiwan Delta PLC system matched with Japan Omron encoder for accurate length measurement, equipped with touch screen, frequency converter, emergency stop button, remote controller and complete safety circuit protection components. Operators can set production length, running speed, production quantity on the touch screen; the system supports automatic running, manual jog operation, fault alarm and memory function, which greatly improves production automation and reduces manual monitoring cost.
| Parameter Item | Technical Specification |
|---|---|
| Certification Standard | CE, ISO 9001, TUV SÜD Certified |
| Processable Raw Material | Color steel coil, galvanized coil, aluminum coil |
| Material Thickness Range | 0.3mm - 0.8mm |
| Feeding Coil Width | 914mm / 975mm / 1220mm (customizable) |
| Uncoiler Loading Capacity | 5 Ton Hydraulic Manual Uncoiler |
| Forming Roller Material | 45# Steel Hard Chrome Plating |
| Main Shaft Material | 40Cr Alloy Solid Shaft |
| Cutting Blade Material | Cr12MoV Quenched Heat Treated Steel |
| Working Speed | 6-10 Meters Per Minute |
| Cutting Tolerance | ±1mm |
| Main Motor Power | 5.5KW |
| Hydraulic Station Power | 4KW |
| Standard Working Voltage | 380V/50Hz/3Ph (415V customizable) |
| Control System | Taiwan Delta PLC + Omron Encoder + Touch Screen |
| Total Machine Weight | About 9 Ton |
| Export Coverage | 145+ Countries & Regions Worldwide |
1. Three-in-one multi-specification forming design, one machine meets three production demands, lower investment and smaller workshop occupation;
2. Globally mature hot-selling model, huge market demand for finished metal roof and wall panels, stable profit space for new investors;
3. Full international authoritative certifications CE/ISO/TUV SÜD, no customs clearance obstacle for cross-border export;
4. High wear-resistant mechanical accessories, stable long-term running performance, low failure rate and maintenance cost;
5. Intelligent full-automatic PLC control system, simple operation, low worker technical threshold, friendly for startup factory owners;
6. Complete after-sales support: overseas installation training, lifelong spare parts supply, remote video technical guidance;
7. Xinnuo has rich overseas export experience, equipment delivered to 145 countries, with mature overseas logistics and project service system.
The metal roof tiles and wall panels produced by this CE certified three layer roll forming machine are widely applied in multiple industries: large industrial factory buildings, agricultural livestock barns, rural self-built villas, temporary prefab houses, photovoltaic power station supporting buildings, logistics storage warehouses, commercial shopping sheds, carport awnings and municipal engineering enclosure walls. The diversified application scenarios ensure continuous market sales for every investor who purchases our equipment, which is another core advantage making this machine the top choice for novice metal processing entrepreneurs around the world.
