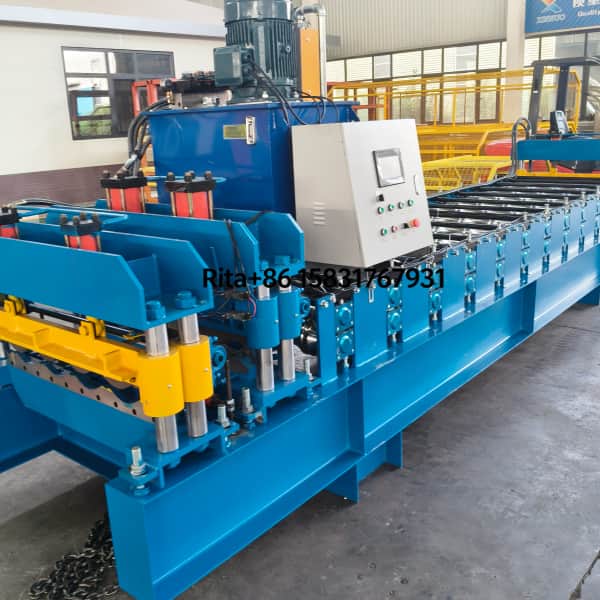

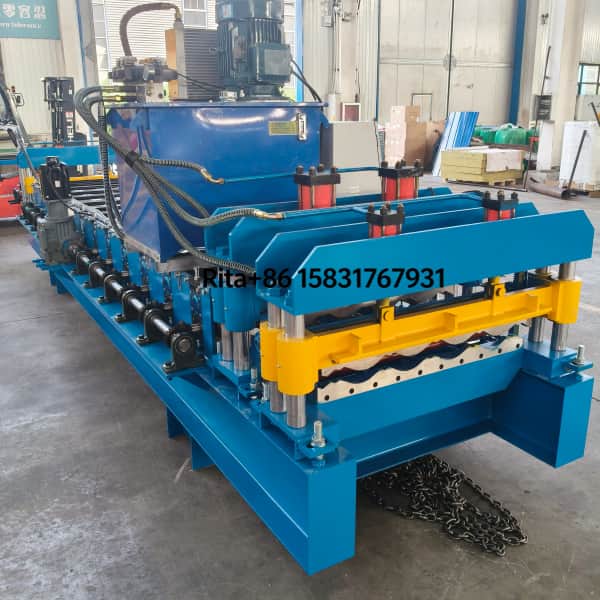

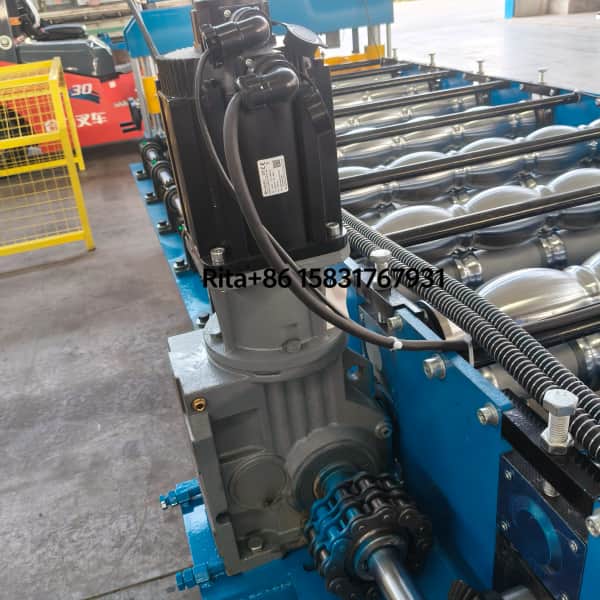

CE Certification Metal Roof Sheet Glazed Tile Roll Forming Machine with High Precision and Fast Speed
Welcome to the premier manufacturing solution for the modern construction industry. At Hebei Xinnuo Roll Forming Machine Co., Ltd., we understand that the roofing industry demands not just durability, but aesthetic perfection. Our flagship product, the CE Certification Metal Roof Sheet Glazed Tile Roll Forming Machine, represents the pinnacle of cold roll forming technology. Designed for both novice investors and seasoned manufacturers, this machine offers a seamless blend of high-speed production, exceptional precision, and user-friendly operation.
In a global market that is increasingly shifting towards metal roofing solutions due to their longevity and eco-friendliness, having the right equipment is crucial. This machine is currently one of the most popular models in the global market, favored for its ability to produce stunning, glazed-style metal tiles that mimic the look of traditional clay but with the strength of steel. Whether you are setting up a new factory or expanding an existing line, this equipment is the ideal investment for high Return on Investment (ROI).
Why This Machine is the Global Market Leader
The construction materials sector is evolving. Architects and homeowners are moving away from heavy, brittle concrete tiles toward lightweight, corrosion-resistant metal roofing. Our Glazed Tile Roll Forming Machine is at the forefront of this revolution. Here is why this specific model has gained such immense popularity worldwide:
- Aesthetic Superiority: The machine produces panels with a distinct, elegant "glazed" appearance. The step-tile profile is not only visually striking but also highly functional for water drainage.
- Investor Friendly: We designed this machine with the "beginner" in mind. The control system is intuitive, the maintenance is straightforward, and the setup is rapid. You do not need to be a veteran engineer to operate this line effectively.
- High-Speed Efficiency: Time is money. With optimized pass design and a robust drive system, this machine maintains a fast production speed without sacrificing the structural integrity of the metal sheet.
- Global Compliance: As a CE Certified machine, it meets the rigorous safety and quality standards required for export to Europe, North America, and beyond.
Technical Excellence: The Xinnuo Advantage
Hebei Xinnuo is not just a manufacturer; we are innovators. With our equipment exported to over 145 countries, we have refined our engineering to withstand diverse operating environments. This machine is built on a foundation of heavy-duty steel to minimize vibration, ensuring that every millimeter of the formed tile is precise.

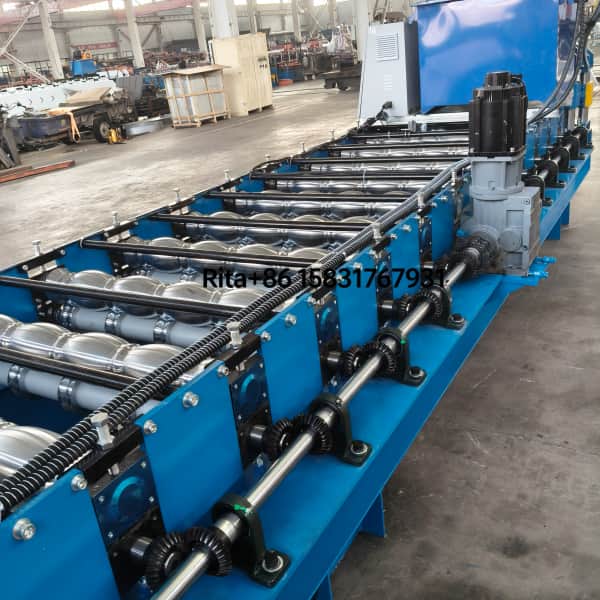

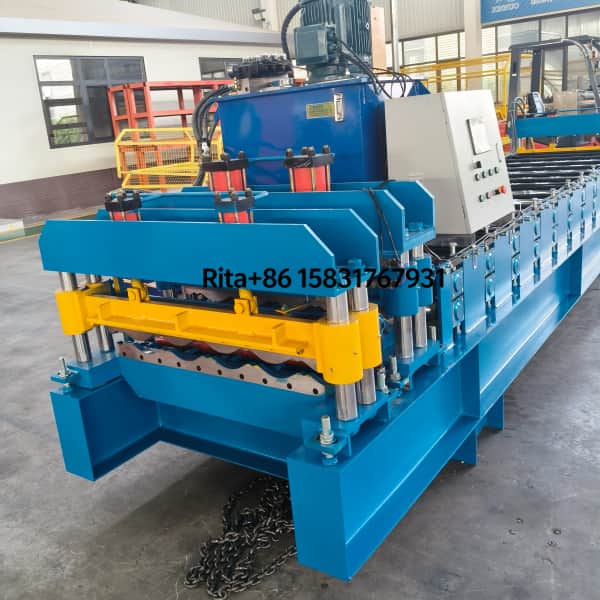

1. Precision Roll Forming Technology
The heart of this machine lies in its rolling stations. Crafted from high-grade GCr15 bearing steel, the rollers are heat-treated and precision-ground to ensure a smooth surface finish. This prevents scratching on the colored steel coils, preserving the "glazed" look of the final product. The guide columns and plates are adjustable, allowing for quick size changes and ensuring the sheet feeds straight into the cutter.

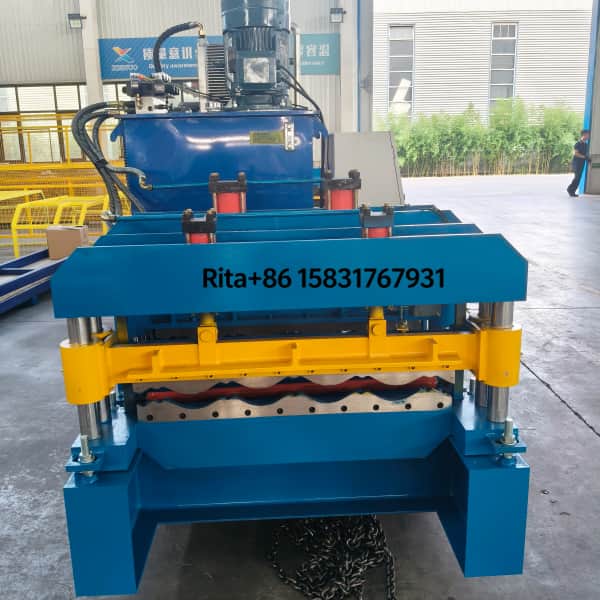

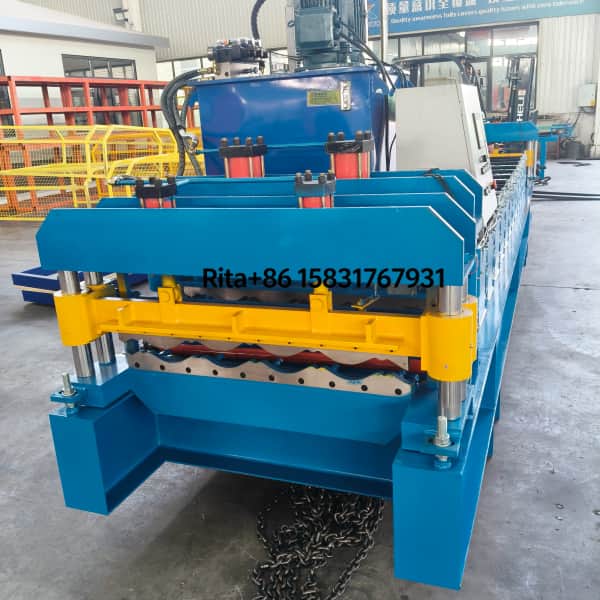

2. Advanced Hydraulic Cutting System
One of the most critical components of a roll forming line is the cutting system. Our machine utilizes a high-performance hydraulic station coupled with a robust cutting mold. The system is designed for silent, smooth operation. The "flying cut" or stop-cut mechanism (depending on configuration) ensures that the cut is square and burr-free. The guide columns provide the necessary stability to handle high-strength steel without deformation during the shearing process.
Key Components Breakdown
To ensure transparency and trust, we break down the core components that make this machine a powerhouse in the metal roofing industry.

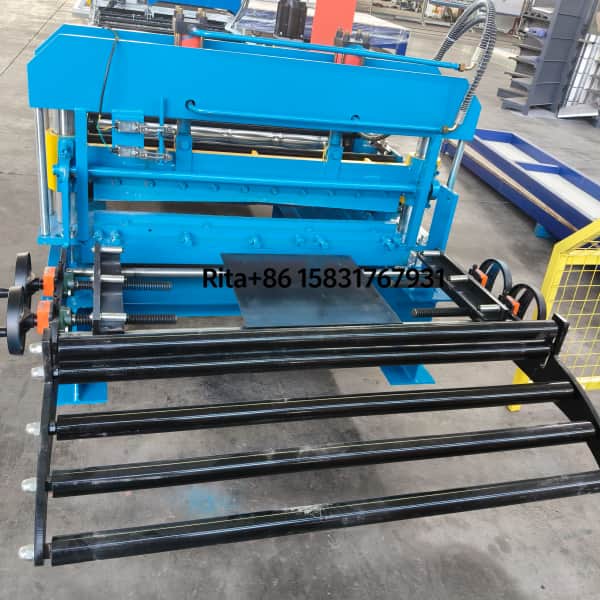

The Uncoiler and Feeding System
The process begins with the decoiler. Our manual or hydraulic uncoiler is designed to hold heavy coils (up to 5 tons) securely. It features an expansion mechanism that grips the coil ID tightly to prevent slippage. The feeding guide ensures the raw material enters the first pass of the roll former perfectly aligned.

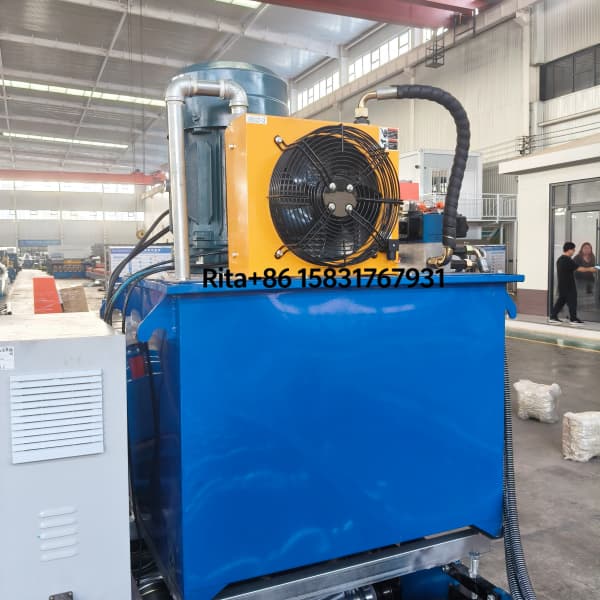

The Hydraulic Power Unit
Located at the rear or side of the machine, the hydraulic泵站 (pump station) is the muscle behind the cutter. Equipped with a high-quality pump and valve system (often using reputable brands like Huade), it provides consistent pressure. The oil cooling system ensures the machine can run 24/7 without overheating, a crucial feature for mass production environments.

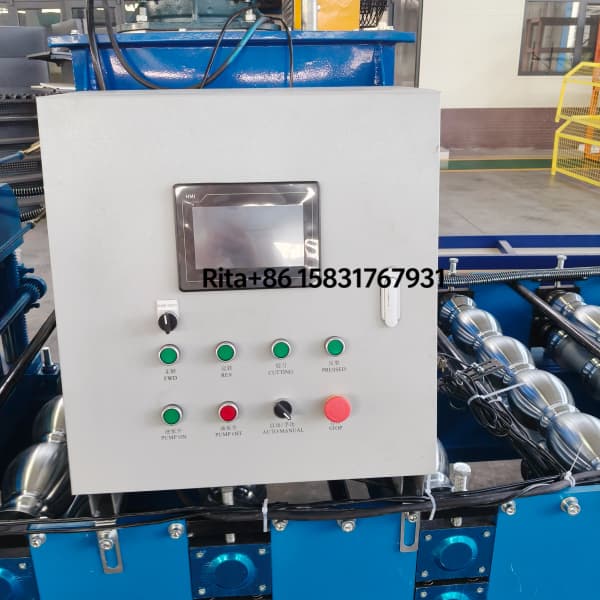

Intelligent PLC Control Cabinet
The brain of the operation is our industrial computer control cabinet. Featuring a user-friendly interface (HMI), operators can input the desired length, quantity, and batch numbers with ease. The PLC (Programmable Logic Controller) processes these commands to synchronize the motor speed and hydraulic cutter. It also features a data storage function, allowing you to save parameters for different projects, making it incredibly easy for new operators to learn.
Why Choose Hebei Xinnuo?
Global Trust & Certification: We are proud to state that Xinnuo's equipment has been exported to 145 countries and regions. Our commitment to quality is validated by authoritative certifications including CE, ISO, and TUV SÜD.
When you buy from Xinnuo, you aren't just buying a machine; you are buying into a partnership. Our product portfolio covers the entire spectrum of construction needs—from C/Z purlin machines to sandwich panel lines. This specific Glazed Tile machine is a testament to our ability to match production scenarios with precise engineering.
Technical Specifications
Below are the standard parameters for our high-precision glazed tile machine. Note: Specifications can be customized based on your specific raw material and power supply requirements.
| Parameter Item | Specification Details |
|---|---|
| Machine Model | XN-Glazed Tile High Speed Series |
| Suitable Raw Material | Color Steel Coil, Galvanized Steel |
| Material Thickness | 0.3 mm - 0.8 mm (Adjustable) |
| Coil Width (Input) | 1000 mm - 1250 mm |
| Roller Material | GCr15 Bearing Steel, Hard Chrome Plated |
| Forming Steps | 12 - 16 Rows (Depending on profile) |
| Driving Mode | Motor Drive, Chain Transmission |
| Main Motor Power | 7.5 kW - 11 kW (Frequency Control) |
| Hydraulic Power | 4 kW - 5.5 kW |
| Hydraulic Pressure | 18 - 20 Mpa |
| Cutting Tolerance | ± 1.0 mm |
| Production Speed | 3 - 10 meters / minute |
| Control System | PLC with Touch Screen (Delta/Mitsubishi) |
| Voltage Supply | 380V, 50Hz, 3Phase (Customizable) |
| Machine Weight | Approx. 5.5 Tons |
| Overall Dimension | Approx. 7500mm x 1300mm x 1600mm |
Applications and Market Potential
The products produced by this machine are widely used in residential housing, commercial complexes, and industrial warehouses. The "glazed" look provides a traditional aesthetic that appeals to the housing market, while the metal composition offers the durability required for modern infrastructure. Because the machine is easy to operate, it is the perfect entry point for entrepreneurs looking to enter the building materials sector.
By choosing the CE Certification Metal Roof Sheet Glazed Tile Roll Forming Machine from Hebei Xinnuo, you are securing a future-proof asset for your business. Join the hundreds of satisfied clients in 145 countries who trust Xinnuo for their manufacturing needs.
