China Top Manufacturer C Purlin Roll Forming Machine with 30 Years Experience SGS/CE Certification
Delivery time is: 45 working days.
Payment method:
TT,40% deposit, and the remaining balance shall be paid before delivery.
Warranty period : one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
whatsapp:+86 15831767931
Email:rita@hbxinnuorollforming.com
As a leading professional manufacturer in the field of cold roll forming equipment, Hebei Xinnuo Roll Forming Machine Co., Ltd. is proud to introduce our flagship C Purlin Roll Forming Machine. With over 30 years of industry experience, this advanced equipment has become extremely popular in the global construction steel market, making it the perfect choice for beginners looking to enter the steel manufacturing industry with minimal risk.

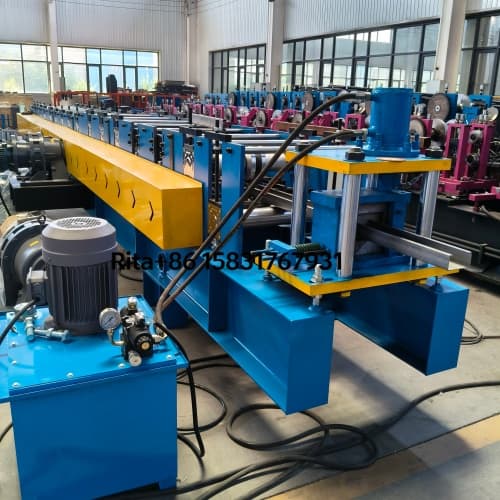

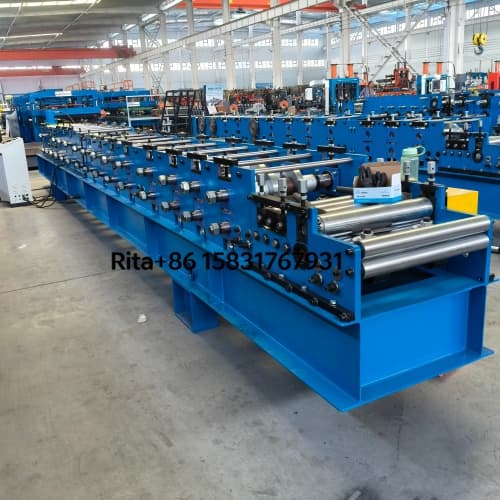

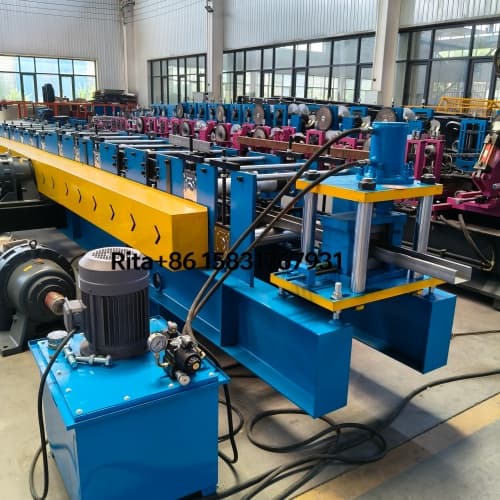

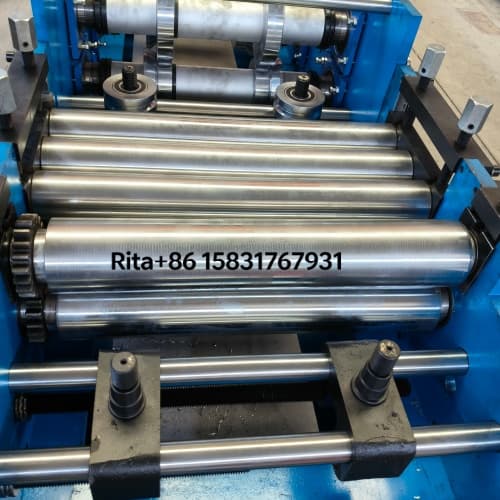

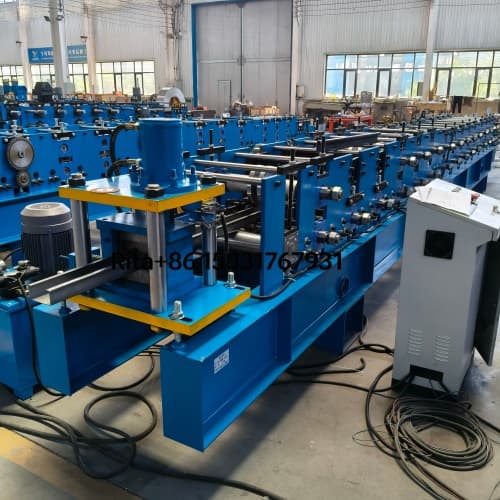

Our C purlin roll forming machine is designed with simplicity and efficiency in mind. The fully automatic system integrates decoiling, leveling, punching, roll forming, and hydraulic cutting into one seamless production line. The intuitive PLC control system allows even first-time operators to achieve professional results from day one.

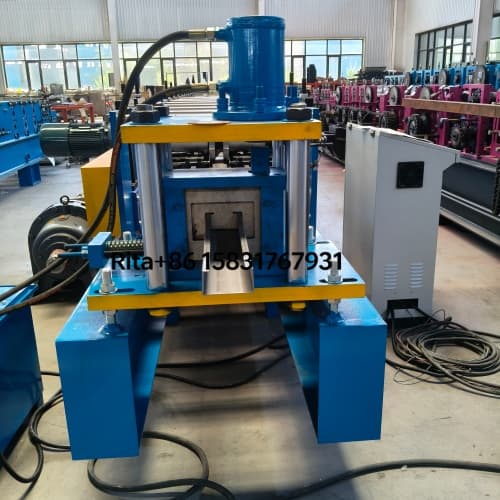

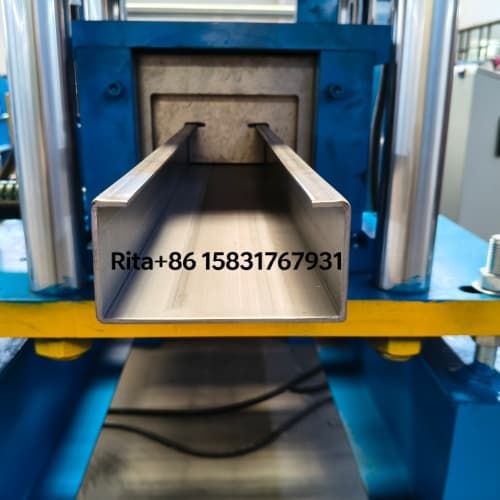

The precision hydraulic cutting system with guide pillars ensures clean, burr-free cuts with ±1mm accuracy.
Xinnuo's equipment has been successfully exported to 145 countries and regions worldwide, earning widespread acclaim for its stable performance and professional after-sales service. We strictly adhere to international quality standards and have obtained authoritative certifications including CE, ISO, and SGS. Our comprehensive product portfolio also includes automatic C/Z purlin machines, roof roll forming machines, sandwich panel production lines, light steel keel machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, and more, accurately matching production scenarios in construction, new energy, and warehousing sectors.

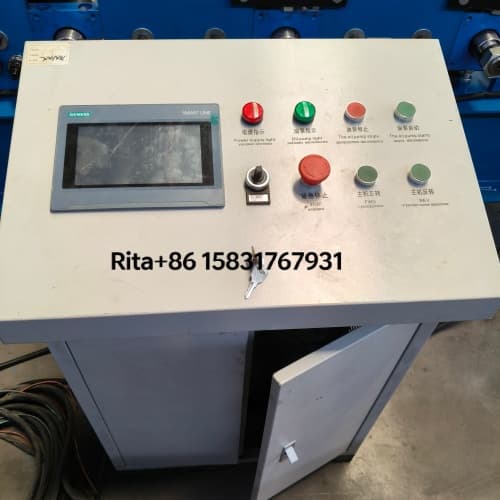

Every machine is equipped with an intelligent computer control cabinet for real-time monitoring and precise operation.
| Parameter | Specification |
|---|---|
| Applicable Material | Galvanized Steel / Hot Rolled Steel / Cold Rolled Steel |
| Material Thickness | 1.5 - 3.0 mm |
| Profile Width Range | 80 - 300 mm (Adjustable) |
| Forming Speed | 10 - 15 m/min (excluding punching & cutting) |

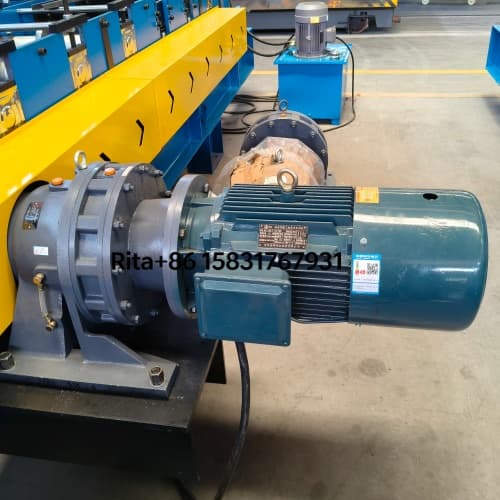

| Main Motor Power | 11 KW |
| Hydraulic Station Pressure | 18-20 MPa |
| Control System | PLC Computer Control with Touch Screen |
| Cutting Blade Material | Cr12 Mold Steel, Heat Treated |
| Roller Material | GCr15 Bearing Steel, Quenched & Tempered |
| Cutting Accuracy | ±1.0 mm |
| Certification | CE, ISO, SGS |
| After-Sales Service | Lifetime Technical Support, Video Installation Guide |
Whether you are starting a new steel manufacturing business or expanding your existing production capacity, our C purlin roll forming machine offers the perfect balance of reliability, efficiency, and affordability. Backed by 30 years of manufacturing excellence and global certifications, this machine is your gateway to success in the construction steel industry. Contact Hebei Xinnuo today for factory-direct pricing, fast delivery, and comprehensive turnkey solutions!
