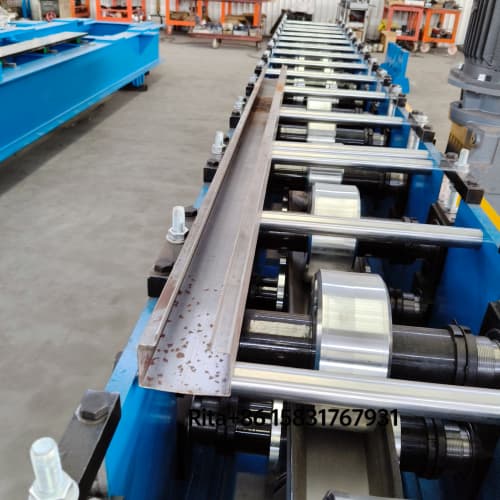

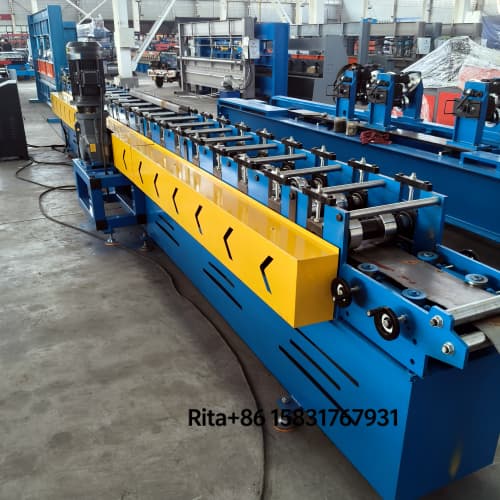

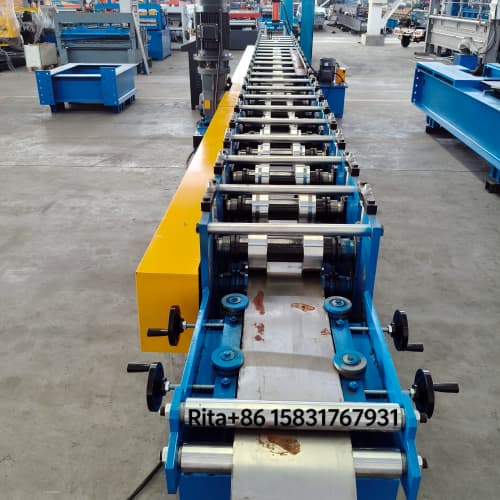

Full Automatic Metal Shutter Guide Rail Production Line
The Full Automatic Metal Shutter Guide Rail Production Line is designed to produce high-precision guide rails for rolling shutter door systems. It automatically feeds metal coil, forms the guide rail profile, cuts it to the required length and outputs finished products with stable dimensional accuracy. The machine is widely used in the shutter door industry for residential garages, commercial storefronts, industrial factories, warehouses and light steel building projects.
This production line is especially popular in the global light steel market and is suitable for new investors who want to enter the rolling shutter door manufacturing business. With a compact layout, stable operation and practical automation, it helps customers start production with relatively low learning cost while maintaining consistent product quality.
As a professional manufacturer in the field of cold roll forming equipment, Hebei Xinnuo Roll Forming Machine Co., Ltd. provides reliable roll forming solutions for construction, new energy, warehousing and door manufacturing industries. Xinnuo’s product portfolio includes roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines and metal embossing machines. Xinnuo equipment has been exported to 145 countries and regions, and the company follows international quality standards with CE, ISO and TUV SÜD certifications.
Product Overview
Rolling shutter door guide rails are key components that support and guide shutter door slats during opening and closing. Accurate rail profiles help improve door stability, reduce operating noise and extend the service life of the complete shutter door system. This full automatic production line adopts PLC control, hydraulic cutting and multi-stage cold roll forming technology to ensure smooth production and reliable profile accuracy.
The machine can process galvanized steel coils, color coated steel coils and other metal strips commonly used in shutter door rail production. It is suitable for small and medium-sized factories as well as new business projects that need stable equipment and simple operation.
Key Features
- Fully automatic production: Coil feeding, roll forming, length control and cutting are integrated into one production line.
- PLC control system: Easy operation, stable performance and convenient length setting.
- Hydraulic cutting unit: Provides clean cutting with low deformation for finished guide rails.
- Durable forming rollers: Rollers and shafts are made from quality steel to support continuous production.
- Wide material adaptability: Suitable for galvanized steel, color coated steel and other metal coils.
- Export-ready quality: Manufactured under international quality management with CE, ISO and TUV SÜD certifications.
- Suitable for new investors: Simple operation and stable performance make it suitable for first-time roll forming machine buyers.
Machine Structure

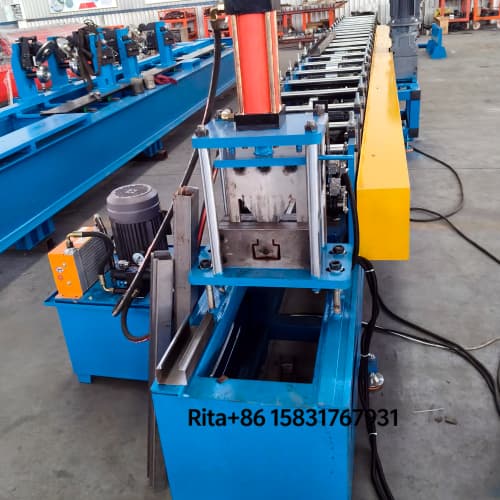

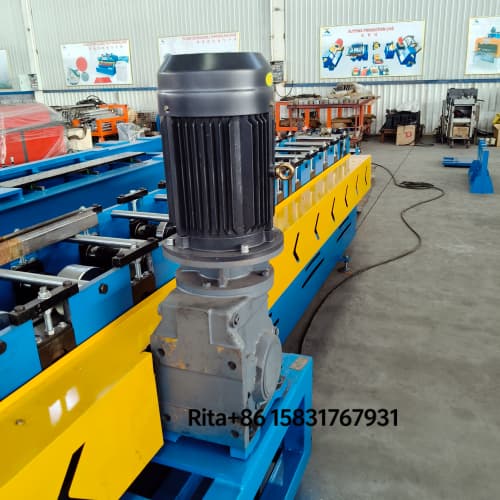

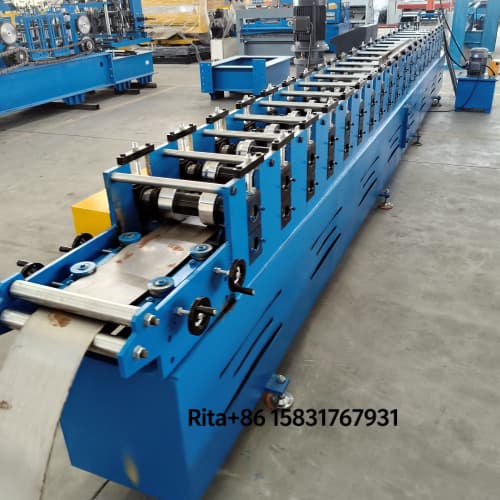

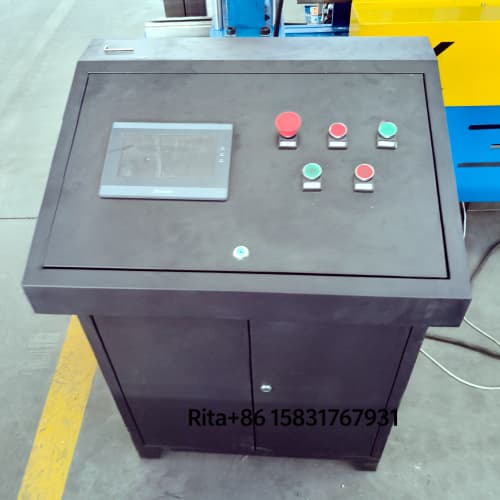

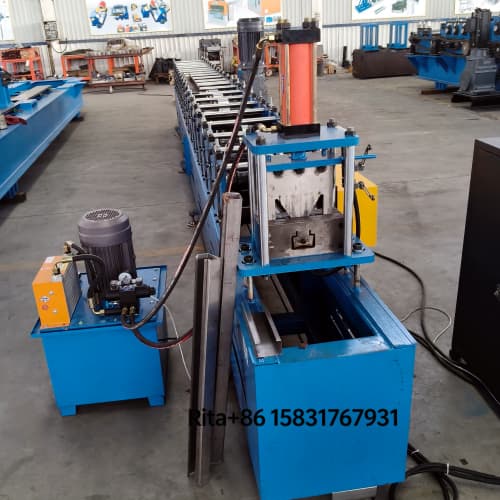

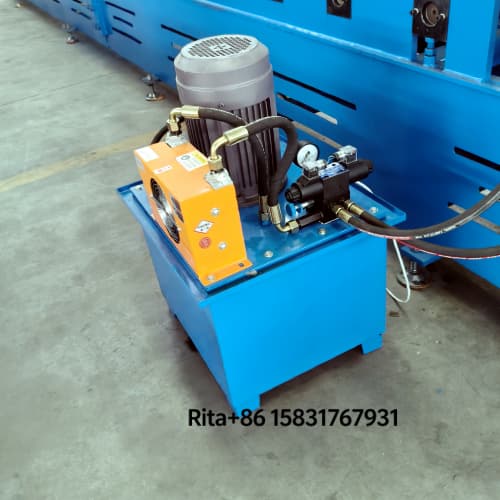

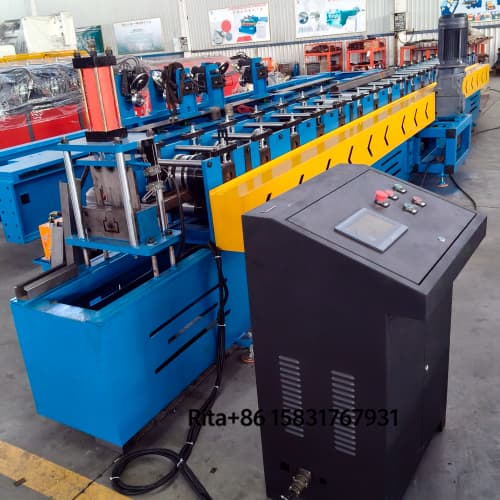

The complete production line generally includes a decoiler, material guiding and feeding device, roll forming main machine, hydraulic cutting unit, hydraulic pump station, PLC electric control cabinet and product run-out table. The layout can be adjusted according to customer profile drawings and workshop space.
