Metal Plate Rolling Shutter Guide Rail Forming Machine for Shutter Door Industry
The Metal Plate Rolling Shutter Guide Rail Forming Machine is designed to produce high-precision guide rails for rolling shutter door systems. It is widely used in the shutter door industry for manufacturing side rails that guide shutter door slats during opening and closing. The machine is suitable for processing galvanized steel coils, color coated steel coils and other metal strips commonly used in rolling shutter door production.
As a professional manufacturer in the field of cold roll forming equipment, Hebei Xinnuo Roll Forming Machine Co., Ltd. provides reliable roll forming solutions for construction, new energy, warehousing and door manufacturing industries. Xinnuo’s product portfolio covers roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines and metal embossing machines. Xinnuo equipment has been exported to 145 countries and regions, and the company follows international quality standards with CE, ISO and TUV SÜD certifications.
Product Overview

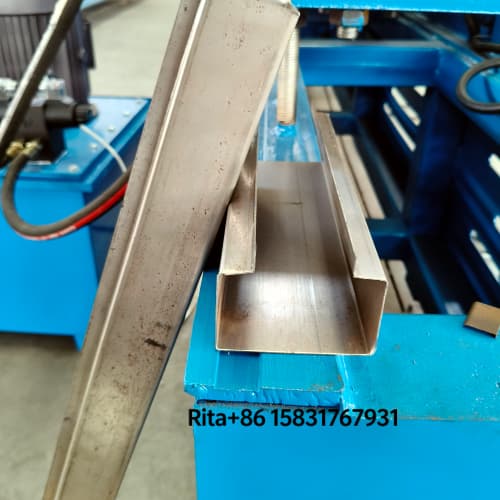

Rolling shutter door guide rails are essential components of metal shutter door systems. They help keep the door body stable, reduce noise during operation and improve the service life of the complete door set. This guide rail forming machine adopts a PLC control system, hydraulic cutting and multi-stage roll forming technology to ensure stable production and consistent profile accuracy.
The machine is especially popular in the global light steel and building materials market. It is suitable for new investors and first-time roll forming machine buyers because of its relatively compact structure, stable operation and wide application in shutter door manufacturing.
Key Features

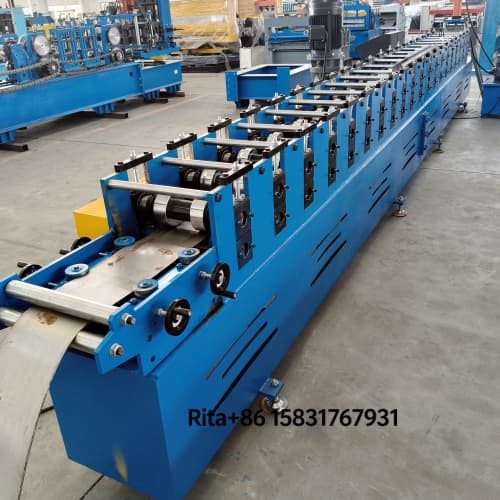

- Stable roll forming process: Multiple forming stations help produce smooth and accurate guide rail profiles.

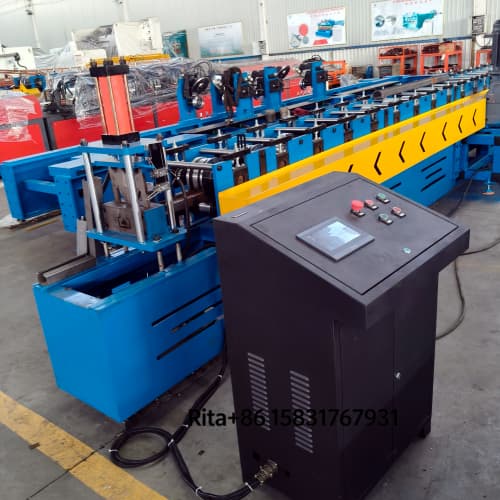

- PLC control system: Easy operation, stable performance and convenient length setting.

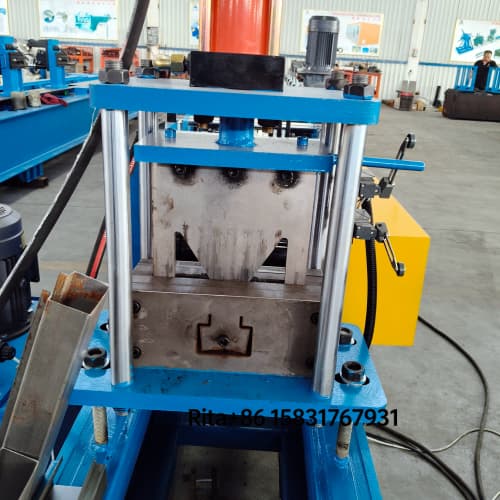

- Hydraulic cutting: Clean cutting with low deformation for finished guide rails.
- Durable roller and shaft design: Rollers and shafts are made from quality steel to support continuous production.
- Wide material adaptability: Suitable for galvanized steel, color coated steel and other metal coils used in shutter door rails.
- Export-ready quality: Manufactured under international quality management with CE, ISO and TUV SÜD certifications.
Machine Structure

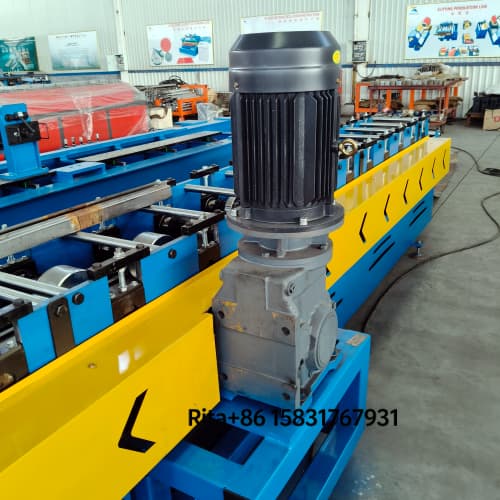

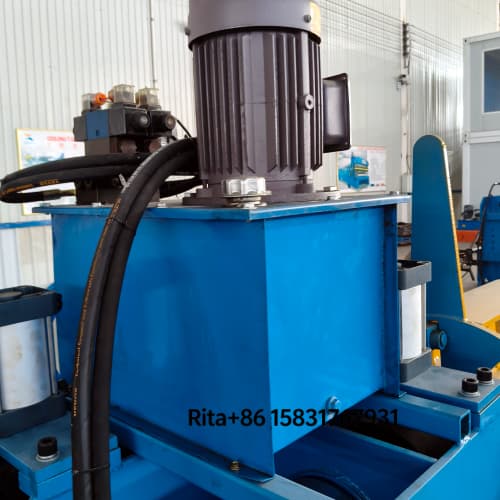

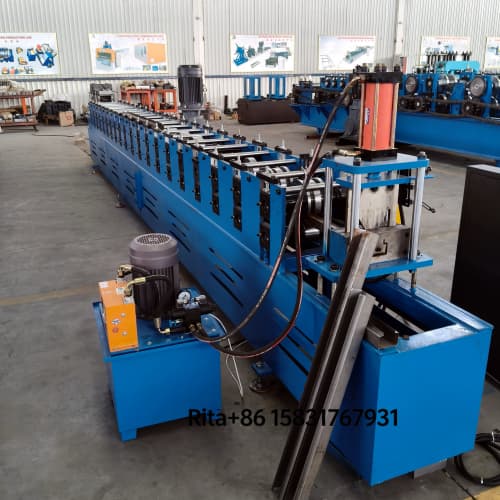

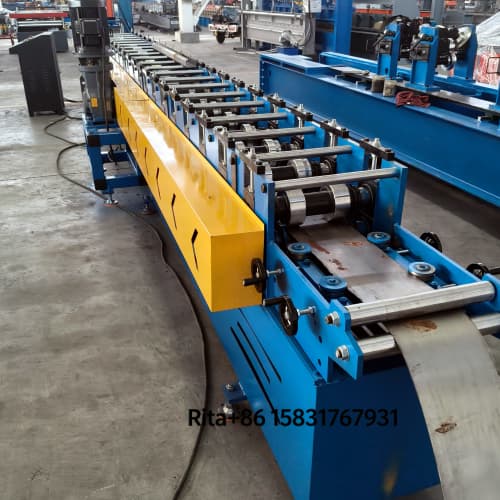

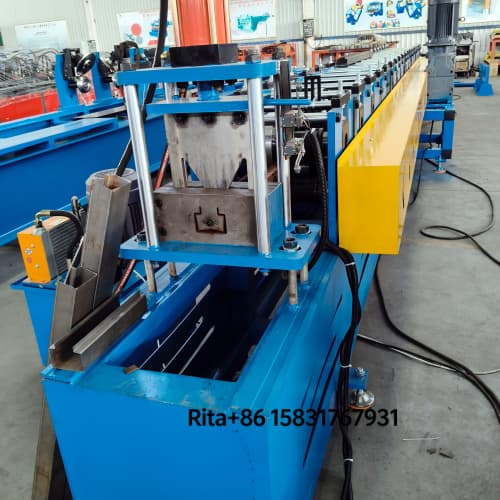

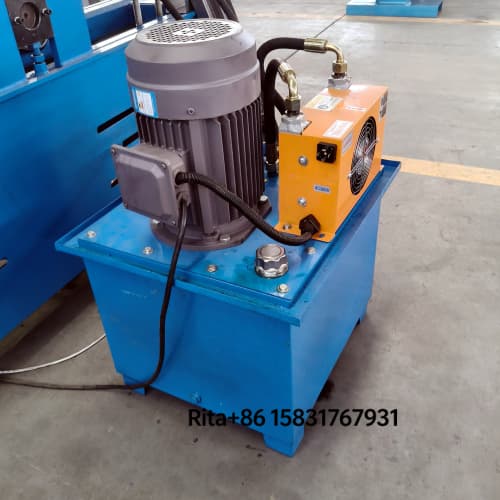

The complete production line generally includes a decoiler, material guiding and feeding device, roll forming main machine, hydraulic cutting unit, hydraulic pump station, PLC electric control cabinet and product run-out table. The layout can be adjusted according to customer workshop space and profile requirements.
