PU Roller Shutter Door Machine | Insulated High Speed
Delivery time is: 45 working days.
Payment method:
TT,40% deposit, and the remaining balance shall be paid before delivery.
Warranty period : one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
whatsapp:+86 15831767931 +86 15194754069
Email:rita@hbxinnuorollforming.com

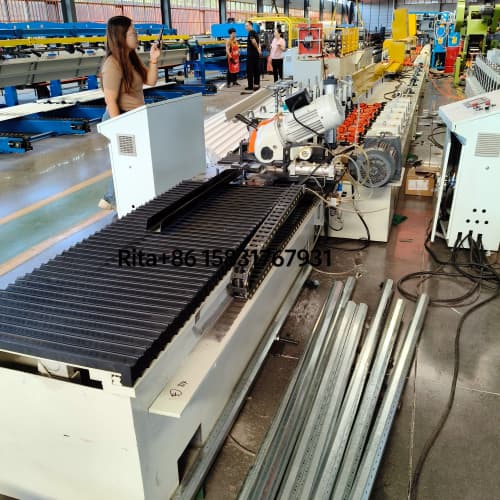

The PU Roller Shutter Door Machine is a high-speed, fully automatic roll forming system engineered for the continuous production of polyurethane-insulated roller shutter door panels. Manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd., this machine integrates advanced thermal insulation technology with precision forming and automated cutting, delivering superior quality output at impressive production speeds.
Whether you are an established manufacturer expanding your product range or a new entrepreneur seeking a reliable entry point into the building materials market, this machine offers the perfect combination of speed, efficiency, and ease of operation.
Polyurethane-insulated roller shutter doors have become the preferred choice for commercial, industrial, and residential applications worldwide. Their popularity stems from several key advantages:
These factors have driven strong global demand, creating a profitable market for manufacturers and making this machine a smart investment for new business owners.
This machine operates at production speeds of 8–12 meters per minute, significantly higher than conventional roll forming systems. The high-speed capability allows manufacturers to meet tight deadlines and handle large-volume orders efficiently, maximizing productivity and return on investment.

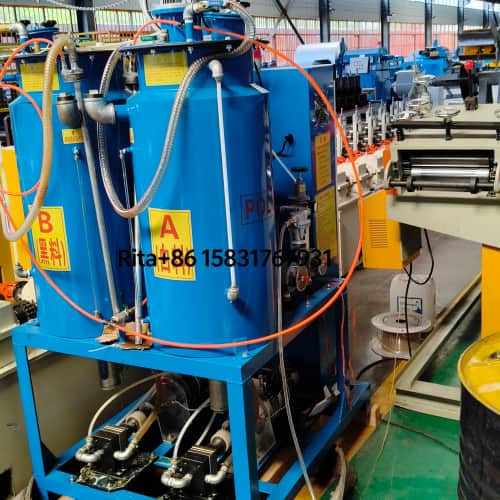

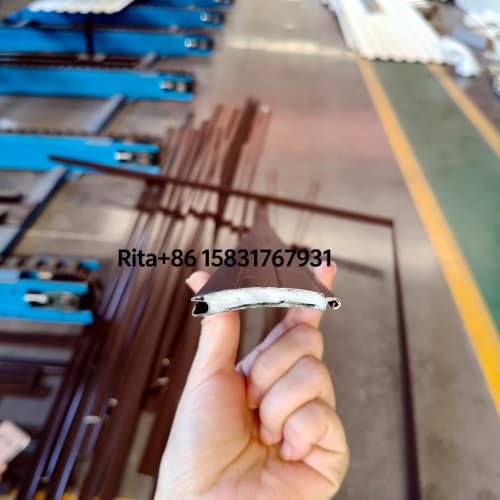

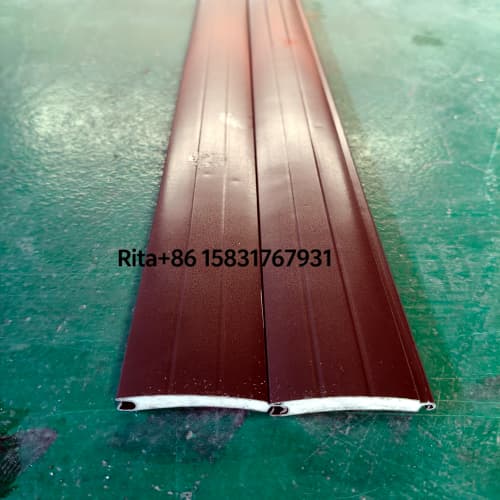

The machine produces PU foam-filled roller shutter panels that provide excellent thermal insulation, soundproofing, and energy savings. The polyurethane core ensures superior heat retention, making the finished doors ideal for cold storage facilities, warehouses, and climate-controlled environments where temperature regulation is critical.

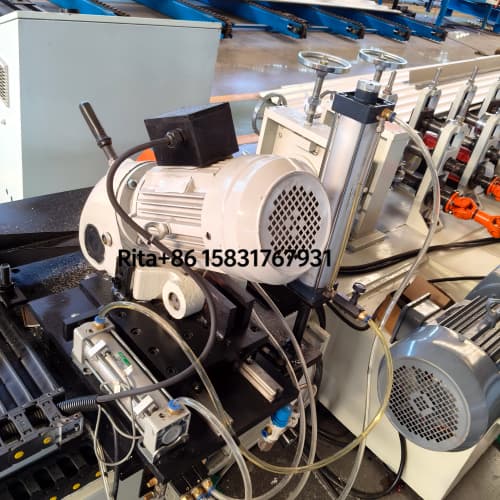

The hydraulic cutting system delivers clean, burr-free cuts with high accuracy. The Cr12 cutting blades are heat-treated for extended durability, reducing maintenance frequency and replacement costs. The automatic cutting function ensures each panel meets exact length specifications with minimal waste.

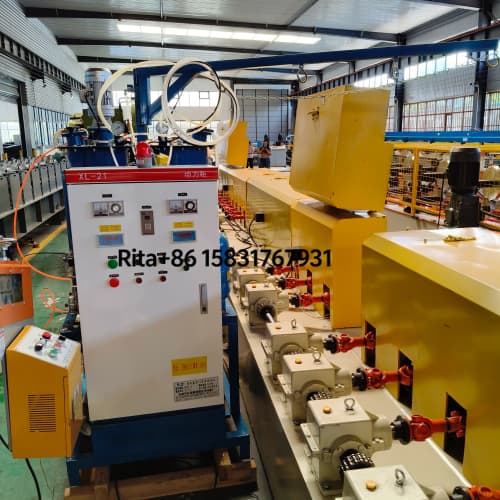

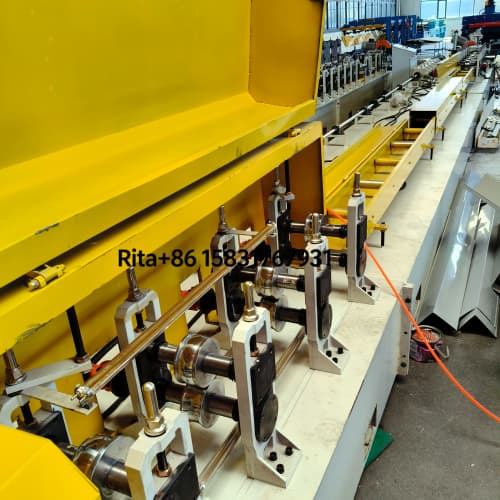

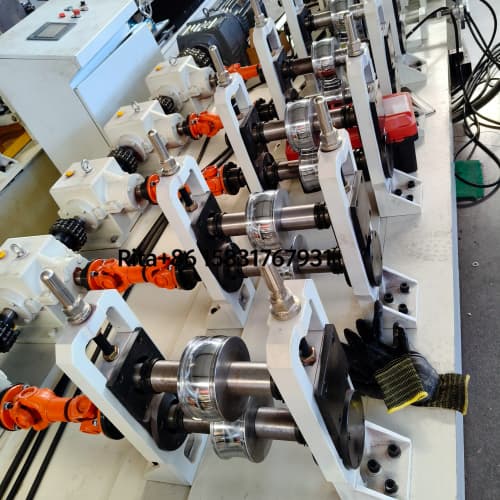

The machine frame is built from heavy-duty H-beam steel with thick side panels, providing exceptional stability during high-speed operation. The roll forming stations use precision-machined rollers made from 45# carbon steel with chrome plating, ensuring consistent profile accuracy and long service life.
The feeding section includes a manual or motorized uncoiler that holds steel coil material securely. The guided feeding system ensures smooth, aligned material entry into the roll forming stations, reducing waste and preventing material damage during production.

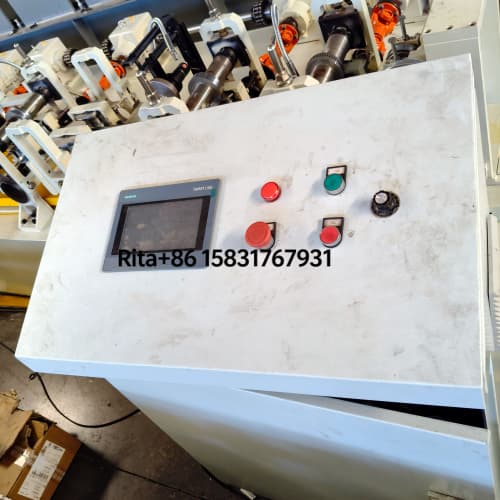

The computerized control system features a user-friendly touch screen interface with programmable settings for panel length, quantity, and production parameters. The system supports multiple languages including English, Spanish, Russian, and Arabic, making it accessible to operators in different regions. Both automatic and manual modes are available for flexible operation.
| Parameter | Specification |
|---|---|
| Suitable Material | Color steel plate, galvanized sheet, aluminum coils |
| Material Thickness | 0.3–1.2mm |
| Feeding Width | 100–160mm |
| Production Speed | 8–12m/min |
| Roller Stations | 18–25 rows |
| Roller Material | 45# carbon steel with chrome plating |
| Roller Diameter | 42–70mm |
| Main Motor Power | 3–4kW |
| Hydraulic Motor Power | 3kW |
| Cutting Blade Material | Cr12 with quenching treatment |
| Control System | PLC with touch screen |
| Voltage | 380V, 50Hz, 3-phase (customizable) |
| Machine Frame | 300mm H-beam steel |
| Side Panel Thickness | 14mm steel plate |
| Processing Precision | Within ±1.00mm |
| Overall Dimensions | Approximately 7500×1500×1600mm |
| Total Weight | Approximately 2.5–3 tons |
The PU insulated roller shutter doors produced by this machine are widely used across multiple sectors:
Hebei Xinnuo Roll Forming Machine Co., Ltd. is a professional manufacturer specializing in cold roll forming equipment. The company's product portfolio covers a wide range of core industry needs, including roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines, and more.
Xinnuo's equipment has been exported to 145 countries and regions around the world, earning wide acclaim from customers for its stable performance and professional service. The company strictly follows international quality standards and has obtained authoritative certifications including CE, ISO, and TÜV SÜD, ensuring that every machine meets rigorous safety and performance requirements.
Xinnuo provides comprehensive support throughout the entire ownership experience:
Inquiry → Confirm profile drawings and price → Confirm proforma invoice → Arrange deposit or L/C → Production and quality inspection → Delivery and installation support
Contact Hebei Xinnuo today to learn more about the PU Roller Shutter Door Machine and take the first step toward building a profitable business in the rapidly growing insulated roller shutter door market.
