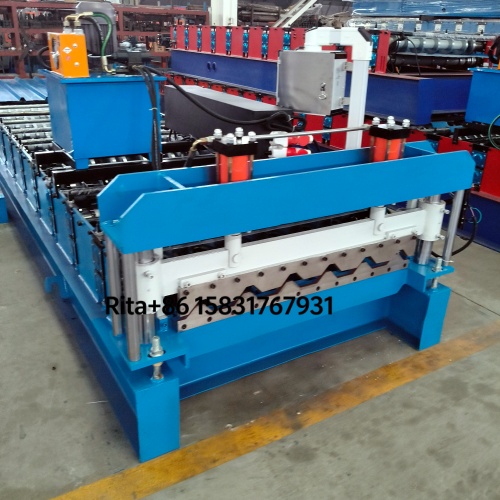

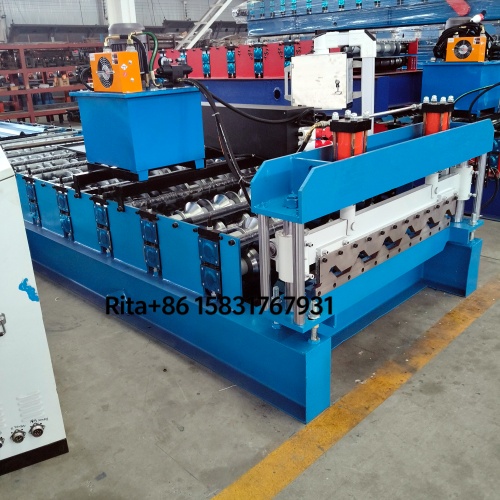

Trapezoidal Metal Roof Roll Forming Machine
Product Overview
The Trapezoidal Metal Roof Roll Forming Machine is one of the most widely used cold roll forming solutions manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd. This machine is specially designed for producing trapezoidal profile metal roof panels with high precision, smooth surface finish, and consistent panel quality. It is widely applied in the construction industry, steel structure buildings, warehouse projects, factory workshops, residential buildings, container houses, and light steel housing projects around the world.
As a professional manufacturer in the field of cold roll forming equipment, Xinnuo has designed this trapezoidal metal roof forming machine with simplicity, reliability, and efficiency in mind. The machine features an easy-to-operate PLC control system, stable hydraulic cutting, and a well-structured roll forming station, making it an ideal choice for customers who are new to the metal roofing industry. With its user-friendly design and cost-effective performance, this machine has become one of the most recommended models for beginner customers worldwide.
Why This Machine Is Popular Worldwide
Xinnuo's equipment has been exported to 145 countries and regions around the world, winning wide acclaim from customers for its stable performance and professional service. The Trapezoidal Metal Roof Roll Forming Machine is especially popular in overseas markets because of its practical design, affordable investment cost, and reliable production capability. Customers from Southeast Asia, Africa, South America, the Middle East, and Europe have chosen this machine as their first roll forming equipment to start metal roofing sheet production.

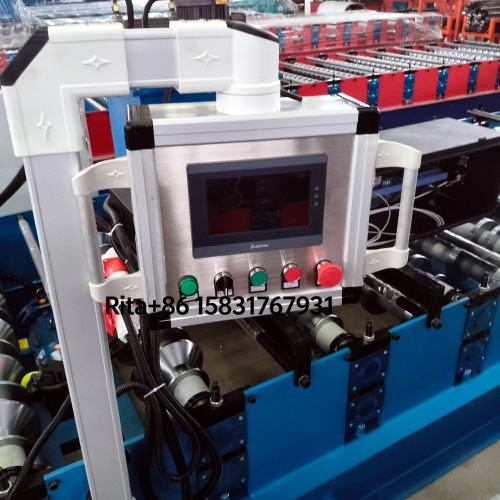

For new customers who have limited experience in cold roll forming, this machine offers a low learning curve. The PLC touch screen interface allows operators to set panel length, quantity, and cutting parameters easily. The hydraulic cutting system ensures clean and accurate cuts without material waste. The whole production process from decoiling to finished panel output is smooth and efficient.
Key Features
- Beginner-friendly operation: Simple PLC control system, easy to learn and operate for new users
- Hydraulic cutting system: Automatic cutting with high precision and clean edges
- Stable roll forming process: Produces trapezoidal roof panels with consistent profile and quality
- Durable machine structure: Heavy-duty frame ensures long service life and stable running
- Wide application: Suitable for construction, warehousing, factory buildings, and light steel structure projects
- International certifications: CE, ISO, and TUV SÜD certified for global market compliance
Working Process
- Decoiling: Color steel coil or galvanized steel coil is loaded onto the manual or hydraulic decoiler.
- Feeding & guiding: The coil material is fed into the roll forming station through the guiding device.

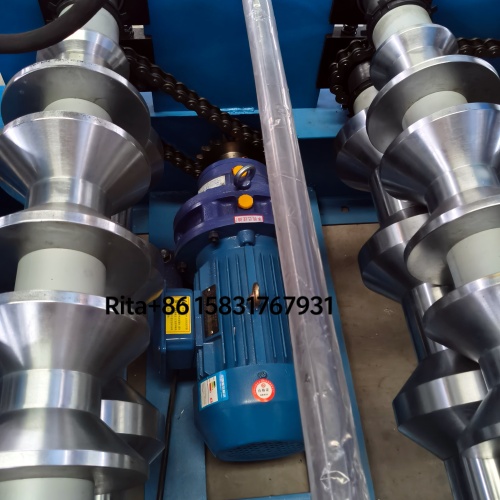

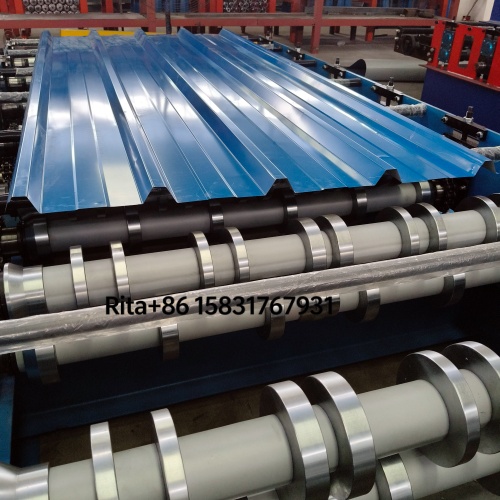

- Roll forming: The metal sheet passes through multiple forming roller stations and gradually forms the trapezoidal profile.

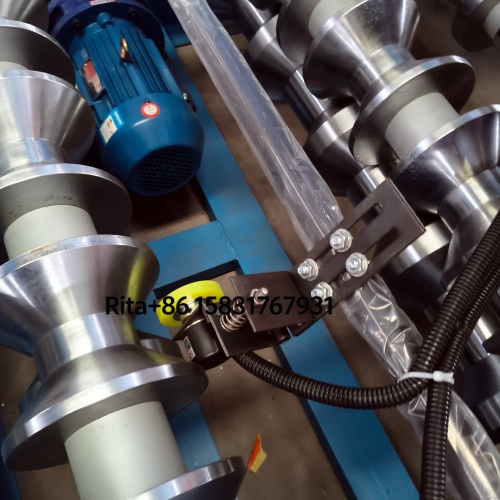

- Length measurement: The PLC control system automatically measures the required panel length.

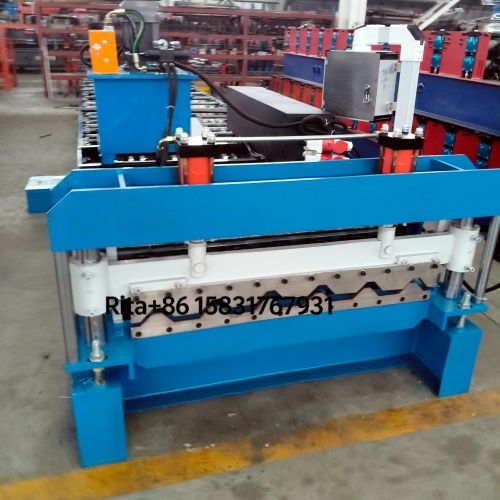

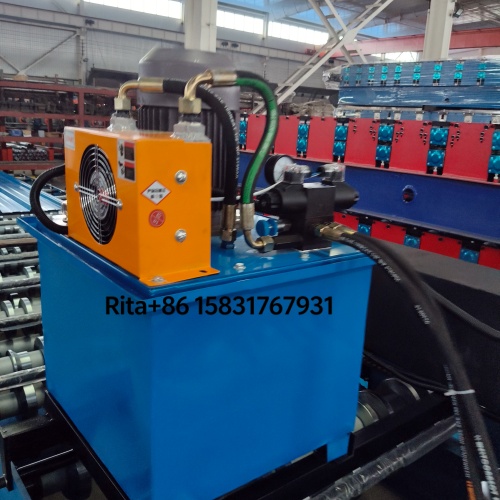

- Hydraulic cutting: The machine cuts the formed panel to the preset length with high accuracy.

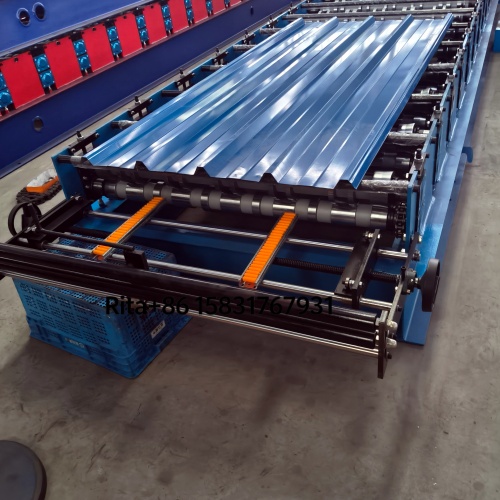

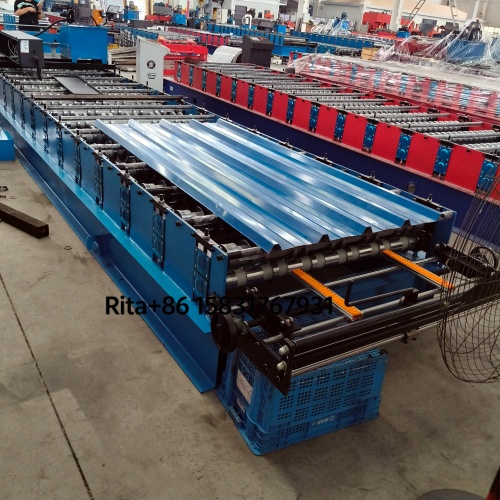

- Panel output: Finished trapezoidal metal roof tiles are discharged and ready for stacking or packaging.
Technical Parameters
ItemSpecificationProduct NameTrapezoidal Metal Roof Roll Forming MachineApplicationTrapezoidal metal roof panel / roofing sheet productionRaw MaterialColor steel coil / galvanized steel coilMaterial Thickness0.3 – 0.8 mmForming TypeCold roll formingCutting TypeHydraulic cutting
