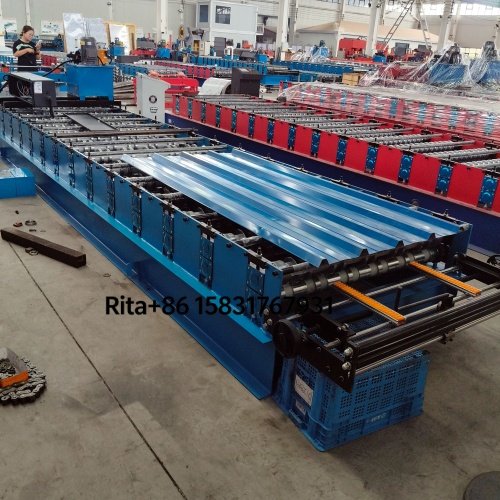

Trapezoidal Roof Roll Forming Machine Xinnuo
Product Overview
The Trapezoidal Roof Roll Forming Machine Xinnuo is one of the most popular cold roll forming machines manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd. This machine is specially designed for producing trapezoidal profile metal roof tiles with high precision, smooth surface finish, and consistent panel quality. It is widely used in the construction industry, steel structure buildings, warehouse projects, factory workshops, residential buildings, and light steel housing projects around the world.
As a professional manufacturer in the field of cold roll forming equipment, Xinnuo has designed this trapezoidal roof panel machine with simplicity, reliability, and efficiency in mind. The machine features an easy-to-operate PLC control system, stable hydraulic cutting, and a well-structured roll forming station, making it an ideal choice for customers who are new to the metal roofing industry. With its user-friendly design and cost-effective performance, this machine has become one of the most recommended models for beginner customers worldwide.
Why This Machine Is Popular Worldwide
Xinnuo's equipment has been exported to 145 countries and regions around the world, winning wide acclaim from customers for its stable performance and professional service. The Trapezoidal Roof Roll Forming Machine Xinnuo is especially popular in overseas markets because of its practical design, affordable investment cost, and reliable production capability. Customers from Southeast Asia, Africa, South America, the Middle East, and Europe have chosen this machine as their first roll forming equipment to start metal roofing sheet production.
For new customers who have limited experience in cold roll forming, this machine offers a low learning curve. The PLC touch screen interface allows operators to set panel length, quantity, and cutting parameters easily. The hydraulic cutting system ensures clean and accurate cuts without material waste. The whole production process from decoiling to finished panel output is smooth and efficient.
Key Features
- Beginner-friendly operation: Simple PLC control system, easy to learn and operate for new users

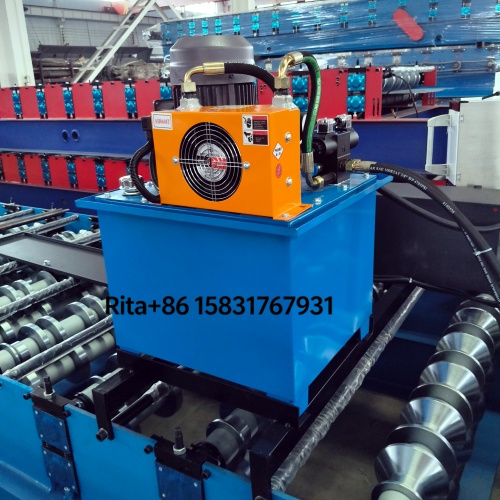

- Hydraulic cutting system: Automatic cutting with high precision and clean edges
- Stable roll forming process: Produces trapezoidal roof panels with consistent profile and quality
- Durable machine structure: Heavy-duty frame ensures long service life and stable running
- Wide application: Suitable for construction, warehousing, factory buildings, and light steel structure projects
- International certifications: CE, ISO, and TUV SÜD certified for global market compliance
Working Process
- Decoiling: Color steel coil or galvanized steel coil is loaded onto the manual or hydraulic decoiler.

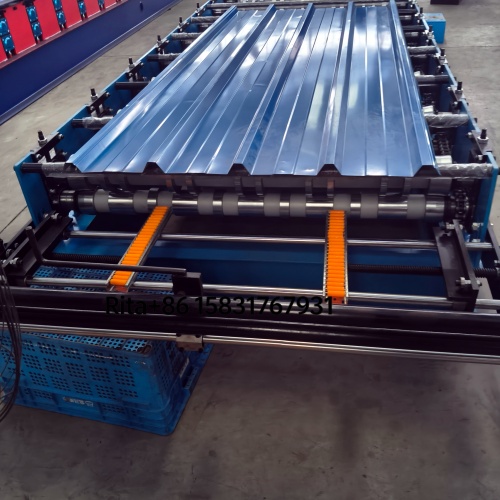

- Feeding & guiding: The coil material is fed into the roll forming station through the guiding device.

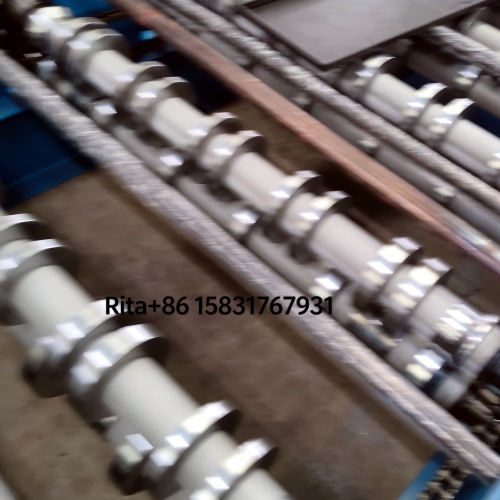

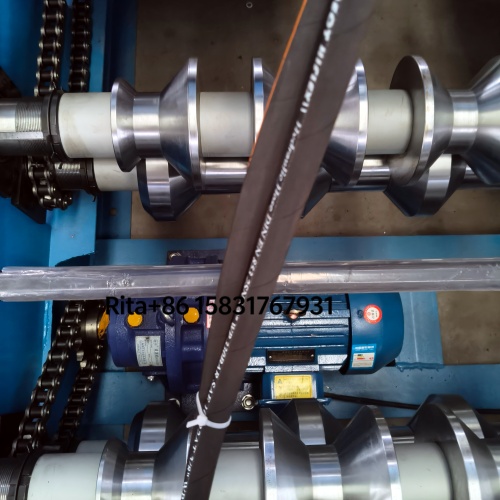

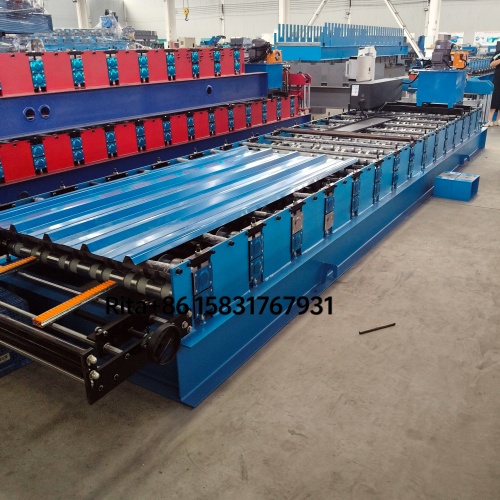

- Roll forming: The metal sheet passes through multiple forming roller stations and gradually forms the trapezoidal profile.
- Length measurement: The PLC control system automatically measures the required panel length.

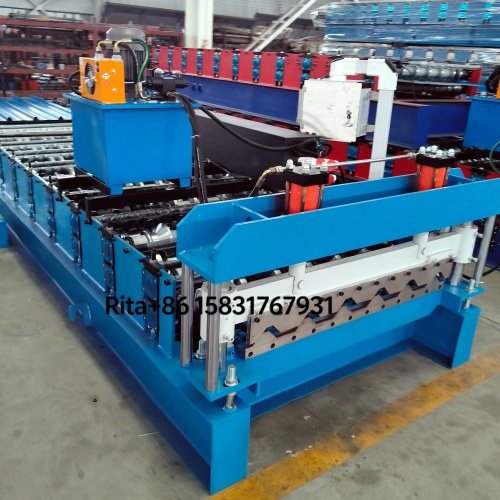

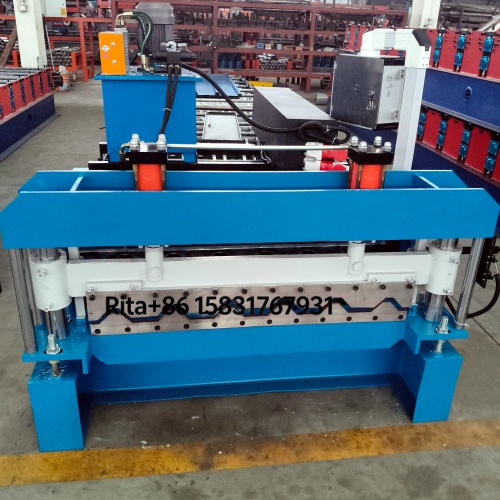

- Hydraulic cutting: The machine cuts the formed panel to the preset length with high accuracy.

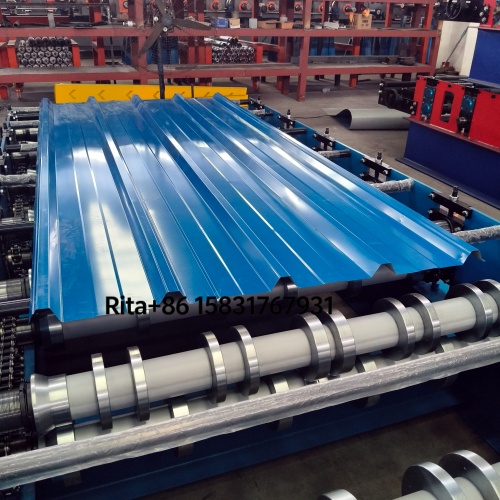

- Panel output: Finished trapezoidal metal roof tiles are discharged and ready for stacking or packaging.
Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Trapezoidal Roof Roll Forming Machine Xinnuo |
| Application | Trapezoidal metal roof tile / roofing sheet production |
| Raw Material | Color steel coil / galvanized steel coil |
| Material Thickness | 0.3 – 0.8 mm |
| Forming Type | Cold roll forming |
| Cutting Type | Hydraulic cutting |

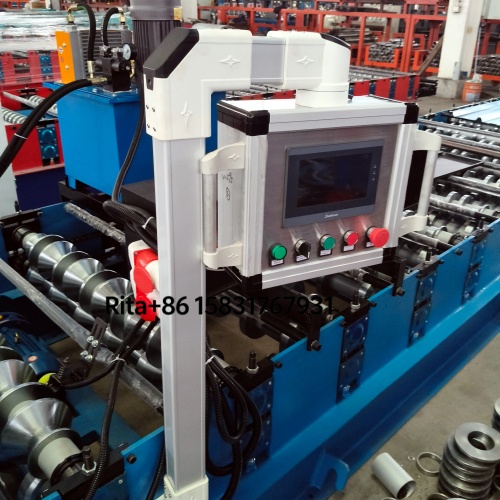

| Control System | PLC touch screen control |
| Forming Speed | 8 – 15 m/min (adjustable) |
| Suitable Industries | Construction, warehousing, factory buildings, light steel structure |
| Certification | CE, ISO, TUV SÜD |
Note: The above parameters are for reference only. Final configuration may vary according to customer requirements, coil specifications, and production needs.
Why Choose Xinnuo
Hebei Xinnuo Roll Forming Machine Co., Ltd is a professional manufacturer in the field of cold roll forming equipment. The company's product portfolio covers core industry needs, including roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines, and more.
Xinnuo's equipment has been exported to 145 countries and regions around the world, winning wide acclaim from customers for its stable performance and professional service. The company strictly follows international quality standards and has passed authoritative certifications such as CE, ISO, and TUV SÜD. Whether you are a beginner or an experienced manufacturer, Xinnuo provides reliable roll forming solutions to match your production needs.
Inquiry
If you are looking for a trapezoidal metal roof tile roll forming machine with stable performance, easy operation, and competitive price, welcome to contact Xinnuo for machine configuration, production solution, and quotation.
