Z Lock Sandwich Panel Machine Line | Automatic Waterproof Interlock Panel Production Line

Hebei Xinnuo Roll Forming Machine Co., Ltd is a trusted professional manufacturer specializing in full-series cold roll forming equipment, with mature R&D, manufacturing and global after-sales capacity to serve construction, new energy and warehousing industries worldwide. Among our diversified machinery product range, the Z lock sandwich panel machine line stands out as our star waterproof interlock composite panel manufacturing equipment, and this production line is extremely popular across the entire global building materials market, making it an ideal investment project for novice entrepreneurs with limited factory operation experience. Whether you are entering the insulated panel industry for the first time or upgrading existing production capacity, our fully automatic Z lock sandwich panel machine line lowers technical thresholds, controls overall investment costs and delivers stable long-term profits, which explains why countless new factory owners choose Xinnuo Z interlock panel production lines every year.

Our full product portfolio covers all mainstream cold forming devices to satisfy multi-industry manufacturing demands, including roof roll forming machines, automatic C/Z purlin roll forming machines, standard sandwich panel production lines, light steel keel machines, metal door forming equipment, floor decking machines, cable tray production lines, photovoltaic bracket forming lines, shelf column roll forming machines, metal slitting lines, cut-to-length lines, stone coated metal roof panel lines and metal embossing machines. The Z lock sandwich panel machine line fills the high-demand market gap for large-span waterproof wall and roof panels, perfectly matching construction sites, industrial workshops, logistics warehouses, photovoltaic supporting buildings, stadium roofs and prefabricated housing projects. Different from ordinary normal-lock panel equipment, our dedicated Z lock forming structure creates tight interlocking seams between panels, greatly improving overall waterproof, wind-resistant and thermal insulation performance of finished composite panels, a core competitive advantage that helps buyers seize more local engineering orders.

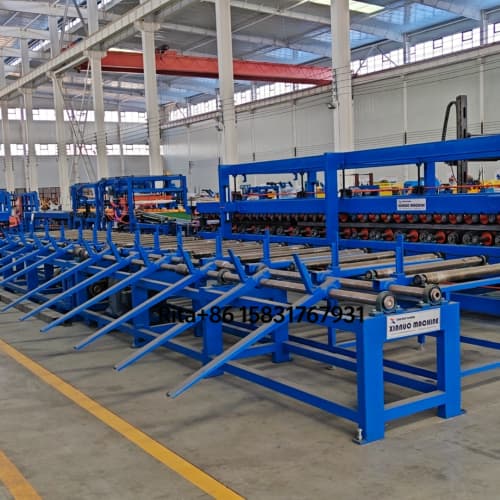

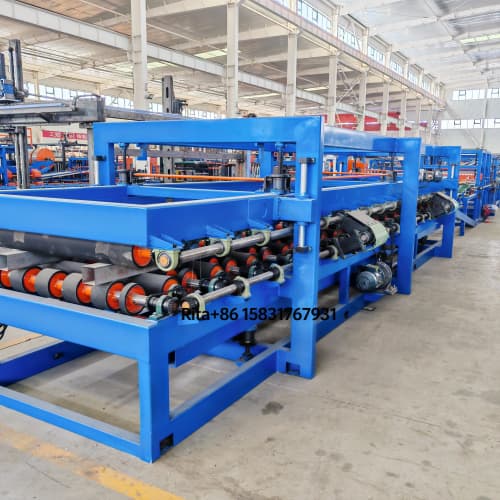

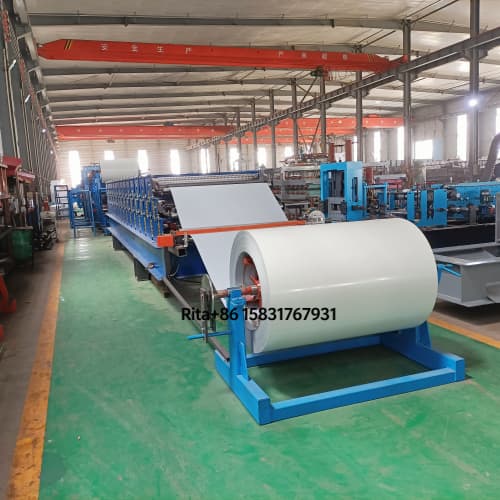

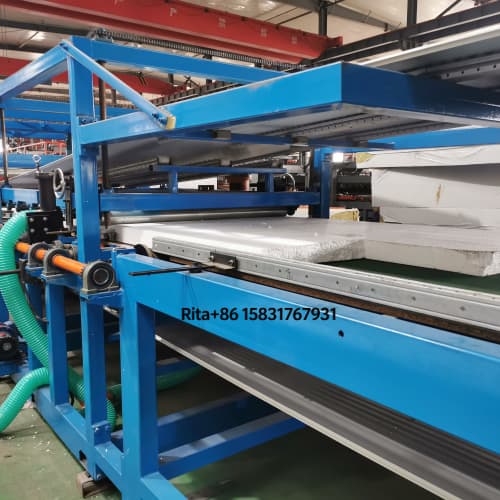

The whole Z lock sandwich panel machine line adopts integrated continuous production layout, covering metal coil uncoiling, sheet leveling, Z-edge precision roll forming, automatic PU foaming, double-belt constant-pressure curing, fixed-length cutting and finished panel stacking. The roll forming station is independently designed with thickened forming rollers, ensuring consistent Z interlock size for every panel batch without deformation during long-term continuous operation. This fully automated flow minimizes manual operation, cuts labor expenditure and raises daily production output, two critical advantages that attract new investors who want to reduce operating risks at startup stage.

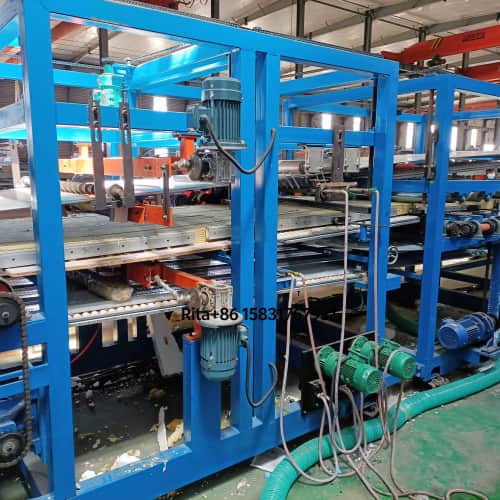

The built-in glue spraying and dropping foaming system is calibrated by Xinnuo professional technicians, compatible with EPS, PU, PIR and rock wool core materials. Uniform glue distribution guarantees stable bonding strength and balanced thermal insulation of finished Z lock panels. The foaming system features adjustable flow rate to match different panel thickness standards, avoiding material waste and reducing production costs. As global demand for waterproof interlock insulated panels keeps rising, our Z lock sandwich panel machine line maintains strong market popularity across Southeast Asia, the Middle East, Africa, Europe and Latin America, delivering stable order volumes for new investors with small and medium panel factories.

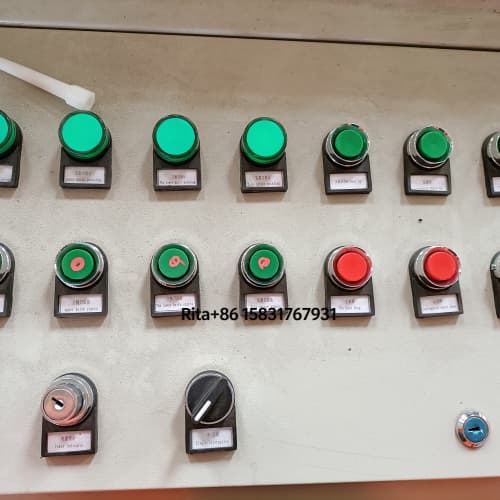

All production parameters of the Z lock sandwich panel machine line are centrally controlled by an intelligent electrical cabinet equipped with imported brand components.

The touch screen control panel supports simple parameter adjustment of panel width, thickness, running speed and cutting length, requiring no advanced mechanical knowledge for operators. Before shipment, every Z lock sandwich panel machine line undergoes complete assembly, continuous running test and precise parameter debugging in our factory workshop, eliminating potential operation faults for overseas clients. The main frame uses heavy thickened carbon steel welded structure, anti-rust treated and wear-resistant, extending machine service life and reducing later maintenance expense for startup manufacturers.

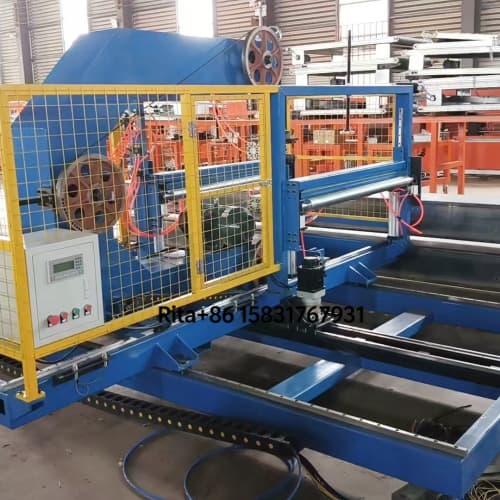

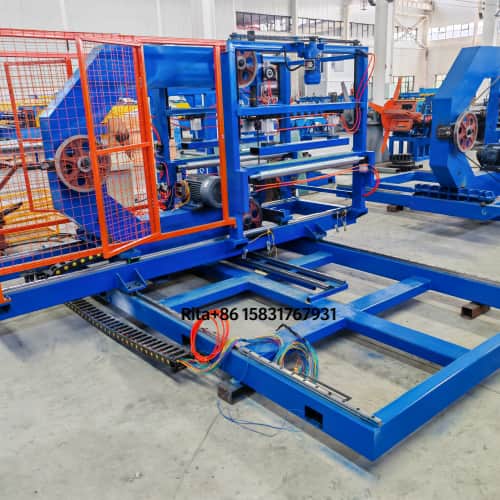

The matched hydraulic cutting equipment ensures smooth, flat panel incisions without edge bending, keeping finished Z lock panels neat and market-competitive. We support full customization of the Z lock sandwich panel machine line according to customers’ factory area, target daily output and local mainstream panel specifications, adjusting production speed, effective panel width and supporting functions flexibly.

Hebei Xinnuo strictly implements international quality management standards, and all Z lock sandwich panel machine lines have passed authoritative CE, ISO and TUV SÜD certifications. Every production link carries out strict raw material inspection, semi-finished product monitoring and finished machine performance testing to guarantee stable, reliable equipment quality. Up to now, Xinnuo cold forming machinery including our hot-selling Z lock sandwich panel machine line has been exported to more than 145 countries and regions globally, accumulating consistent positive feedback from thousands of buyers relying on our stable equipment performance and all-round professional service.

We provide full-cycle one-stop global support for every purchaser of Z lock sandwich panel machine line, including factory layout drawing design, overseas engineer on-site installation guidance, free operator technical training, 12-month full machine warranty and lifelong low-cost spare parts supply. Our multilingual after-sales team offers timely remote video support to solve machine operation problems rapidly. For new investors who lack industry experience, our sales and technical team provide free market demand analysis, production line configuration recommendation and simple profit calculation guidance, fully supporting your smooth entry into the profitable insulated panel manufacturing sector.

If you plan to invest in high-efficiency waterproof composite panel equipment with broad market prospects, our Z lock sandwich panel machine line is your ideal choice. Widely popular in the global building materials industry and extremely friendly for novice factory owners, this fully automatic interlock panel production line will create sustainable economic returns for your building material business long-term.

Core Technical Parameters of Xinnuo Z Lock Sandwich Panel Machine Line
