Full Automatic Z Interlock Composite Panel Production Line – Globally Popular Machinery Suitable For Novice Investors

Hebei Xinnuo Roll Forming Machine Co.,ltd, a leading professional cold roll forming equipment manufacturer in North China, proudly presents our fully automatic Z Lock Sandwich Panel Machine Line, also named China PLC Controlled Composite Panel Equipment, which has become one of the most sought-after composite building machinery dominating the global construction material market. This integrated continuous production line is specially developed for manufacturing interlocking Z-lock insulated wall and roof panels with EPS foam or rock wool core, standing out with ultra-low entry cost and simple operation, making it an ideal factory investment choice for novice entrepreneurs and first-time investors stepping into the insulated panel manufacturing industry.

As a manufacturer with a complete product matrix covering roof roll forming machines, C/Z purlin equipment, light steel keel machines, cable tray lines, photovoltaic bracket forming lines and slitting cut-to-length lines, Xinnuo has accumulated rich experience in cold bending and composite molding technology. Our Z lock sandwich panel line absorbs mature roll forming craftsmanship and optimized composite gluing technology, perfectly matching construction, new energy warehouse, cold storage, clean room and industrial plant enclosure production demands. Up to now, all series Xinnuo forming equipment including this Z lock composite panel line have been exported to over 145 countries and regions across Asia, Africa, Middle East, Europe and Latin America, earning consistent high praise from global clients thanks to stable mechanical performance and all-life professional after-sales service.

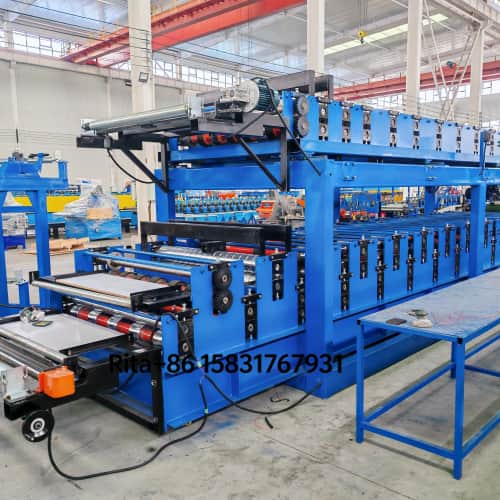

The core roll forming machine station defines the unique Z-lock interlocking structure of finished panels, which is the core competitive advantage of this production line. We adopt thickened forged alloy forming rollers with full heat treatment, avoiding metal sheet scratch, deformation or insufficient lock bite during long-hour continuous production. Every forming stand is equipped with independent frequency conversion speed regulators, allowing operators to adjust molding speed, panel width and lock tightness freely through the central PLC touch screen. The whole roll forming unit runs at low noise and low wear rate, which greatly cuts daily maintenance work — a huge plus for new investors who do not have a professional mechanical maintenance team on site. The Z interlock design eliminates extra waterproof glue strips on construction sites, improving installation efficiency and enhancing rainproof and heat preservation performance of finished wall and roof panels.

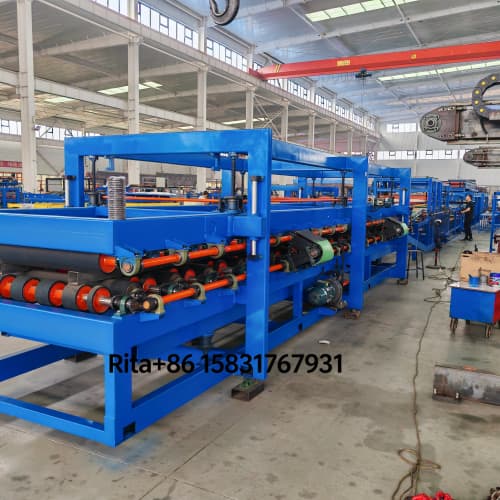

Matched with an independent glue spraying and glue dropping integrated system, our Z lock sandwich panel machine line achieves uniform and controllable adhesive coating on both inner metal skins and insulation core materials. The constant-temperature glue supply tank prevents glue solidification in low-temperature workshops, ensuring tight bonding between color steel, galvanized steel, aluminum sheet and EPS/rock wool core layers. Glue flow rate can be digitally set on the touch panel, effectively reducing raw glue waste and lowering the overall production cost per square meter of finished panels. For new factory owners with strict cost control budgets, this precise glue control module brings obvious profit margin improvement without sacrificing composite bonding strength.

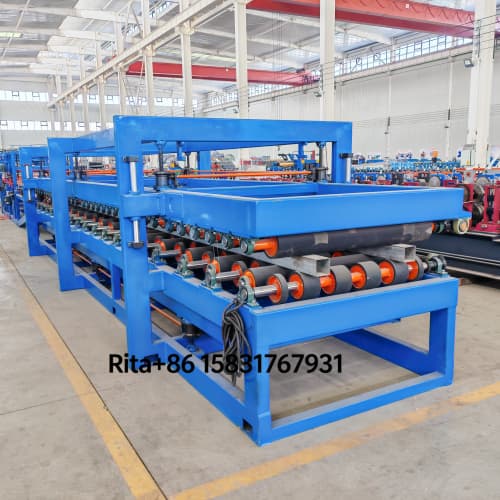

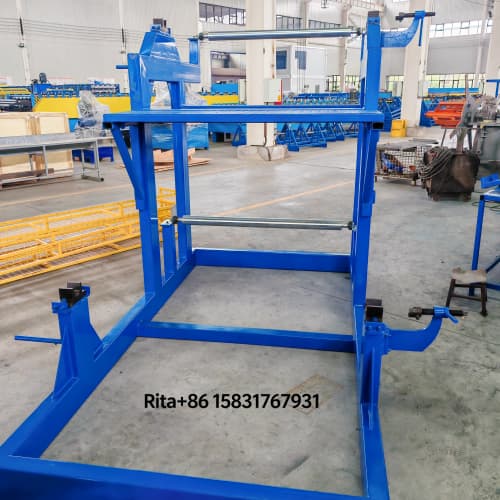

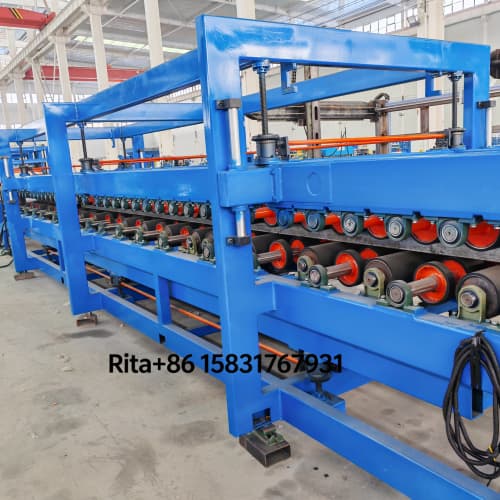

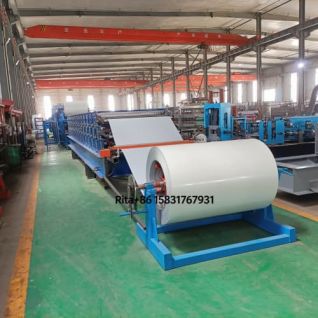

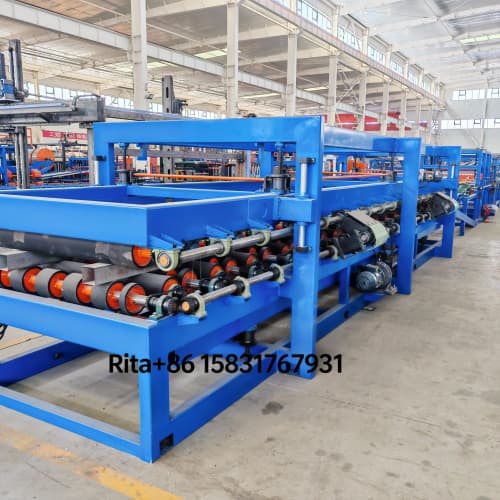

The whole production workflow adopts fully continuous automatic circulation without frequent manual material transfer. The front-end metal coil raw material feeding rack loads large tonnage steel coils stably, supporting non-stop long-shift production and reducing manual coil replacement frequency. After leveling and edge trimming, metal strips enter the roll forming station to complete Z-lock interlock molding. Next, materials pass through the glue spraying and dropping section for even adhesive distribution, then combine with rock wool or EPS insulation cores under constant-pressure composite rollers. In the final procedure, compound semi-finished panels are sent straight to hydraulic cutting equipment for fixed-length cutting according to customer customized specifications.

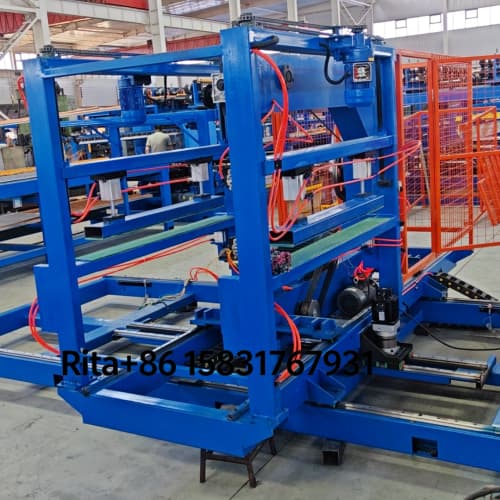

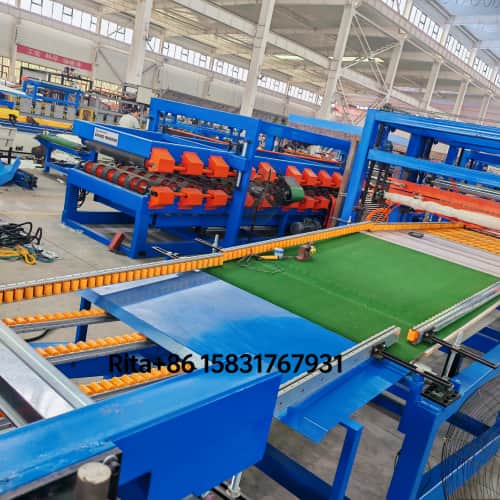

The supporting hydraulic fixed-length cutting equipment adopts imported wear-resistant alloy cutting blades and high-precision digital length sensors, controlling cutting tolerance within ±0.5mm. It supports continuous cutting of thick rock wool composite panels without frequent blade sharpening or replacement. Once cutting is completed, finished Z-lock sandwich panels slide out automatically via the output platform, requiring zero secondary manual trimming and minimizing labor input for the whole workshop. The cutting unit works synchronously with the front forming and gluing system under unified PLC central control, avoiding production pause and material waste caused by asynchronous speed.

This Z Lock Sandwich Panel Machine Line is extremely popular across the global building materials market, and its core positioning as low-barrier equipment for novice investors attracts countless startup factory buyers every year. First of all, the entire line is controlled by an integrated PLC intelligent touch screen; all production parameters including running speed, glue volume, panel length, forming width and Z lock depth can be adjusted on one single operation panel. Only one or two general workers are enough to operate the whole production line, and Xinnuo provides free on-site operation training without complicated mechanical background requirements for new staff. Secondly, we supply complete turnkey solutions for new investors: factory layout CAD drawing design, overseas engineer installation guidance, spare parts supply and lifelong remote video technical support. All technical worries for first-time panel manufacturers are fully covered by our global service network covering 145 export countries.

In terms of quality management, our Z lock composite panel production line strictly complies with unified international manufacturing standards, and has passed authoritative global certifications including CE, ISO 9001 and TUV SÜD, same as all other cold roll forming equipment manufactured by Hebei Xinnuo Roll Forming Machine Co.,ltd. All key electrical components use world-famous brands to guarantee stable long-term running performance, effectively lowering unexpected machine downtime and avoiding production loss for newly built factories. Global customers consistently feedback that Xinnuo Z-lock sandwich panel lines maintain stable operation for over 10 years with only routine simple maintenance.

This PLC controlled composite panel line supports customizable finished panel thickness ranging from 50mm to 200mm, covering mainstream specifications of industrial workshop wall panels, steel structure roof panels, logistics warehouse insulation boards, food cold storage enclosures and pharmaceutical clean room partition panels. Rock wool filled Z-lock panels reach Class A fireproof grade to meet strict international building fire safety codes, while EPS core panels provide lightweight, high heat insulation and cost advantages for low-temperature storage projects. We accept customized modification on production speed, line length, fully closed dust-proof shell and special panel width according to local market demands of different countries.

For novice investors with limited initial capital, Xinnuo offers flexible configuration schemes: standard basic Z lock composite line for small batch trial production, and high-speed upgraded continuous line for large-volume mass production. Compared with high-priced European and American imported composite panel equipment, Xinnuo factory direct sales price balances stable quality and competitive cost, helping new investors recover early factory investment in a short production cycle. Whether you plan to build a small local panel processing plant or expand existing insulation panel production capacity, our Z Lock Sandwich Panel Machine Line | China PLC Controlled Composite Panel Equipment is your trustworthy automatic production solution with worldwide market recognition, easy operation, low maintenance cost and full one-stop technical support from Hebei Xinnuo Roll Forming Machine Co.,ltd.

Main Technical Parameters of Z Lock Sandwich Panel Machine Line
