Automatic Z Lock Sandwich Panel Machine Line High Output
Delivery time is: 45 working days.
Payment method:
TT,40% deposit, and the remaining balance shall be paid before delivery.
Warranty period : one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
whatsapp:+86 15831767931 +86 15194754069
Email:rita@hbxinnuorollforming.com

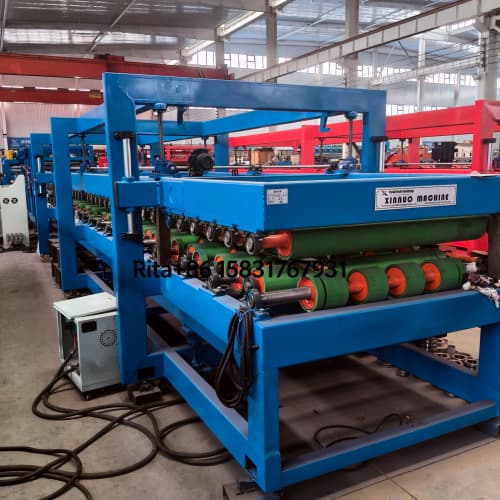

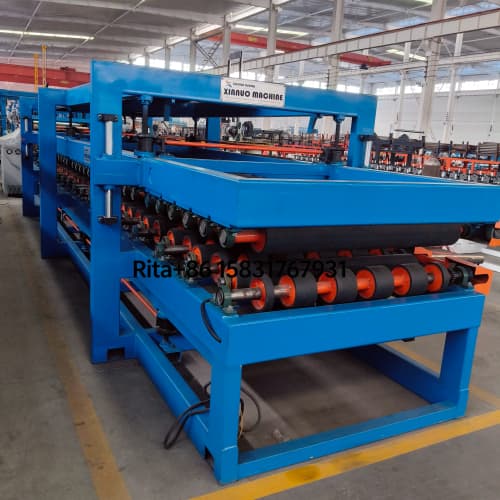

The Automatic Z Lock Sandwich Panel Machine Line High Output manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd. is a fully integrated production system engineered for high-efficiency manufacturing of Z-lock profile insulated sandwich panels. This advanced machine line combines decoiling, precision roll forming, automatic glue application, core material feeding, double belt composite pressing, and computer-controlled cutting into one continuous, high-speed production process.
The Z-lock panel profile features a unique interlocking joint design that creates a tight, seamless connection between adjacent panels. This design eliminates thermal bridges, prevents water infiltration, and provides superior structural integrity, making Z-lock panels one of the most sought-after panel types in the global steel roofing and wall cladding market.
This machine line is built for maximum productivity. With a production speed of up to 4.5 meters per minute and continuous operation capability, it delivers significantly higher daily output compared to conventional sandwich panel machines. The high-speed composite pressing system ensures rapid bonding without compromising panel quality, making it ideal for manufacturers who need to meet large-volume orders on tight schedules.
Z-lock sandwich panels have gained widespread popularity across international construction markets. Their interlocking design provides excellent weather resistance, thermal insulation, and aesthetic appeal with clean, fastener-free exterior surfaces. These panels are in high demand for industrial factories, warehouses, cold storage facilities, commercial buildings, and prefabricated structures across Europe, the Middle East, Southeast Asia, Africa, South America, and beyond.
The machine line features a user-friendly PLC control system with an intuitive touch-screen interface. Operators can easily set and adjust production parameters including panel length, speed, and cutting position. With simplified operation, comprehensive technical documentation, and full after-sales support from Xinnuo, new investors can achieve stable production output within a short learning period, significantly lowering the barrier to entry in the insulated panel manufacturing industry.
The production line supports a wide range of core materials including EPS (Expanded Polystyrene), PU (Polyurethane), PIR (Polyisocyanurate), and rock wool. This versatility allows manufacturers to diversify their product range and respond flexibly to different market demands and project specifications without requiring additional equipment investment.
Hebei Xinnuo Roll Forming Machine Co., Ltd. has exported equipment to over 145 countries and regions worldwide. The company holds CE, ISO, and TUV SÜD certifications, ensuring that every machine line meets rigorous international quality and safety standards. Customers across the globe have recognized Xinnuo for its stable machine performance and professional service.
The Automatic Z Lock Sandwich Panel Machine Line operates through a fully automated, continuous production sequence:

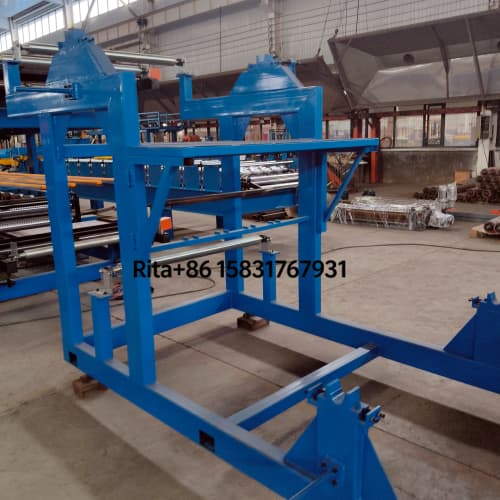

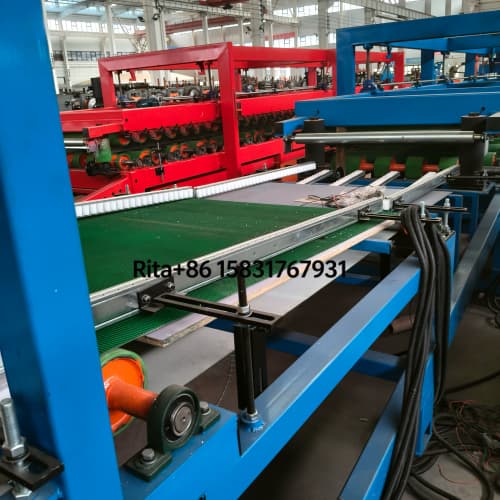

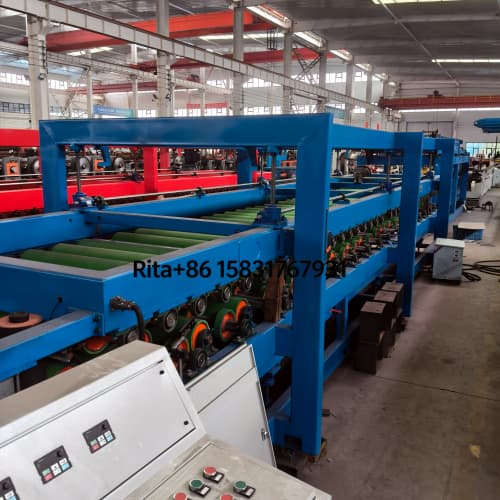

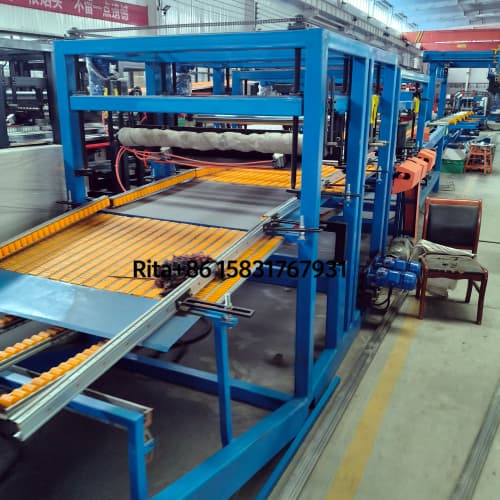

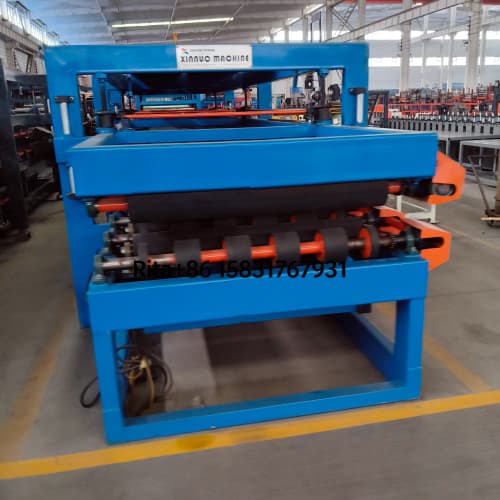

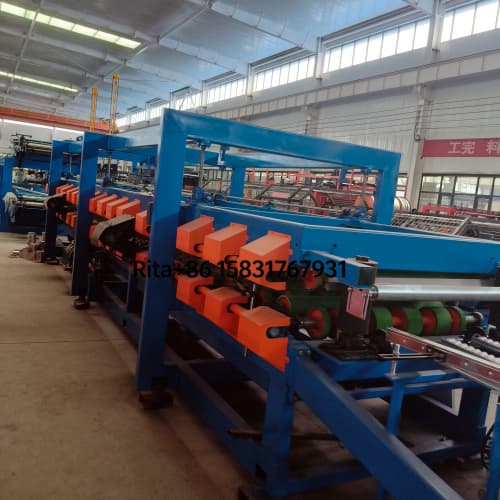

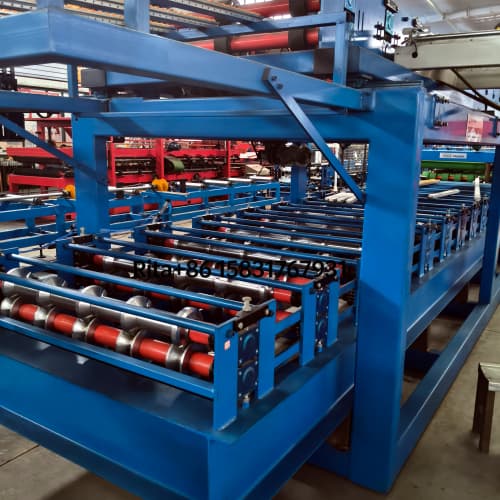

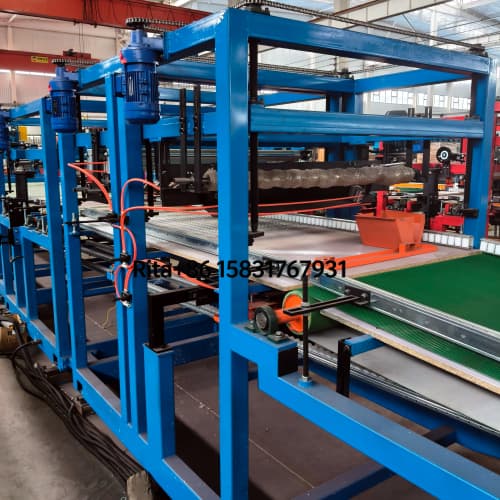

Composite Decoiler → Material Loading → Roll Forming → Glue Spraying & Dripping → Core Material Feeding → Composite Main Press → Heating & Bonding → Crimping & Notching → Edge Trimming → Automatic Cutting → Panel Stacking
Each production stage is precisely synchronized through the central PLC control system, ensuring uniform panel thickness, consistent adhesive distribution, accurate Z-lock profile formation, and precise cutting length throughout continuous high-speed operation.
| Item | Specification |
|---|---|
| Machine Type | Automatic Z Lock Sandwich Panel Machine Line High Output |
| Core Material | EPS / PU / PIR / Rock Wool |
| Steel Sheet Thickness | 0.3 – 0.8 mm |
| Core Thickness Range | 20 – 300 mm |
| Production Speed | 2 – 4.5 m/min (adjustable) |
| Total Power | Approx. 30 KW |
| Control System | PLC Automatic Control with Touch Screen |
| Voltage | 380V / 3 Phase / 50Hz (customizable) |
| Overall Dimensions | Approx. 35000 × 2500 × 2600 mm (L×W×H) |
| Total Weight | Approx. 25 Tons |
| Certification | CE / ISO / TUV SÜD |
Note: Technical parameters can be customized according to specific customer requirements. Please contact our sales team for detailed configuration options.
The Z-lock sandwich panels produced by this machine line are widely used in:
As a professional manufacturer in the field of cold roll forming equipment, Hebei Xinnuo Roll Forming Machine Co., Ltd. has built a comprehensive product portfolio that covers core industry needs. The company's product range includes roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines, and more — accurately matching the production scenarios of fields such as construction, new energy, and warehousing.
At present, Xinnuo's equipment has been exported to 145 countries and regions around the world, winning wide acclaim from customers for its stable performance and professional service. The company strictly follows international quality standards and has passed authoritative certifications including CE, ISO, and TUV SÜD.
