Hebei Xinnuo Roll Forming Machine Co.,ltd is a professional manufacturer specializing in cold roll forming equipment. Our full product line covers diversified industrial demands, including roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines and more. All our forming equipment can perfectly match manufacturing needs across construction, new energy photovoltaic and warehousing industries.
Up to now, Xinnuo’s metal processing machinery has been exported to more than 145 countries and regions worldwide. Every production line wins consistent high praise from global buyers thanks to stable running performance and full-cycle professional after-sales service. We strictly abide by international quality control standards and have obtained authoritative global certifications including CE, ISO and TUV SÜD, eliminating customs clearance obstacles for all overseas factory operators.

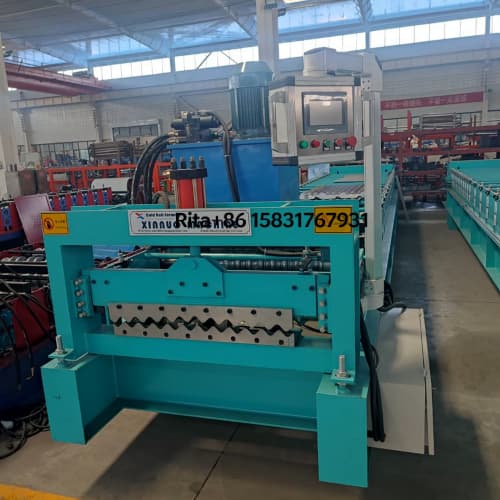

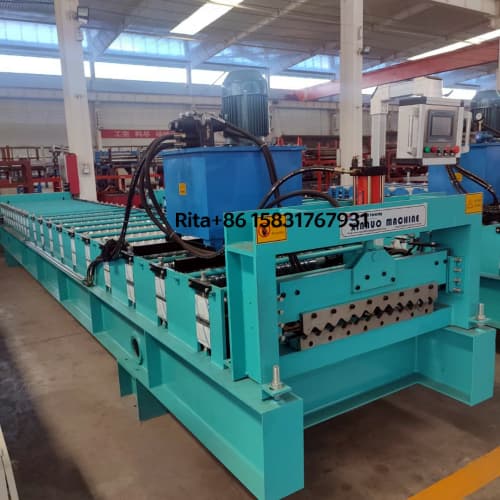

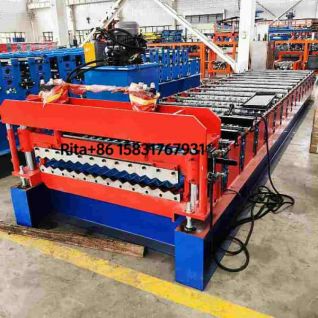

This Corrugated Roof Roll Forming Machine is a customized production line independently developed for manufacturing arc-shaped metal roof panels. Different from ordinary flat corrugated tile equipment, this machine adds special arc forming roller stations to produce aesthetic arched roof sheets widely used in large-span buildings. The whole production line integrates uncoiling, material feeding, continuous arc profiling, hydraulic fixed-length cutting and intelligent length measurement as one fully automatic unit, greatly simplifying the whole sheet forming workflow and reducing manual participation links.
This arc metal roof panel forming machine is extremely popular in the global construction metal materials market, with steady market demand in Southeast Asia, Africa, the Middle East, South America and Eastern Europe. It is tailor-made for customers with four core requirements: ultra-high forming speed, obvious labor cost reduction, full automation configuration and stable large daily production capacity. First of all, optimized roller layout and high-efficiency chain transmission structure greatly improve the running speed of the machine, which can output a large number of finished arc roof panels within limited working hours, perfectly coping with bulk orders from engineering contractors and large distributors.
Secondly, the full-automatic integrated design minimizes manual operation steps. Only one worker can supervise the whole production line, which effectively cuts long-term labor expenditure for metal processing factories. Thirdly, the machine is equipped with a complete intelligent control system, supporting unattended continuous production, automatic length positioning, real-time fault alarm and production data storage, reaching the top automation standard among similar arc roof forming equipment. Xinnuo also provides one-stop supporting services for all purchasers, including factory layout planning, remote installation guidance, on-site technical training and lifelong supply of spare parts, fully solving all production worries for mass production clients.

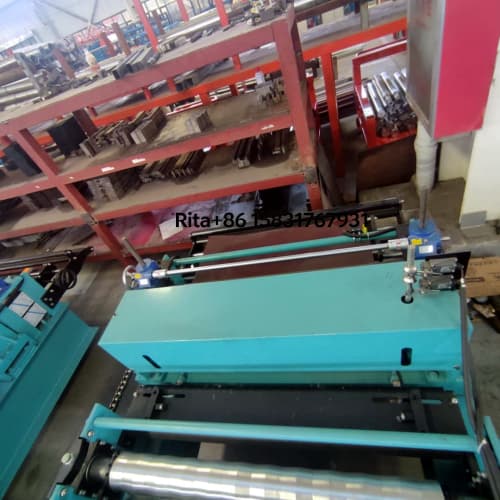

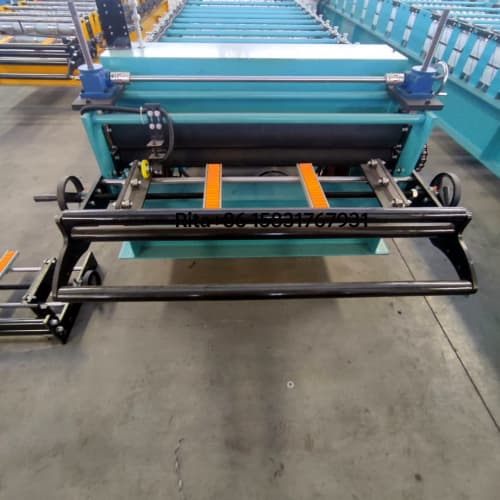

The front feeding section is equipped with double anti-scratch guide rollers and adjustable positioning baffles, which can fix raw color steel, galvanized steel or aluminum coils tightly to avoid deviation and surface scratches during conveying, ensuring uniform arc radian and consistent size of finished roof panels. The thickened frame structure enhances stability during long-time high-speed operation.

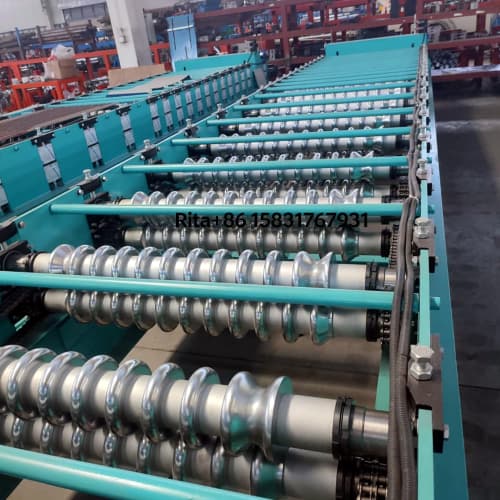

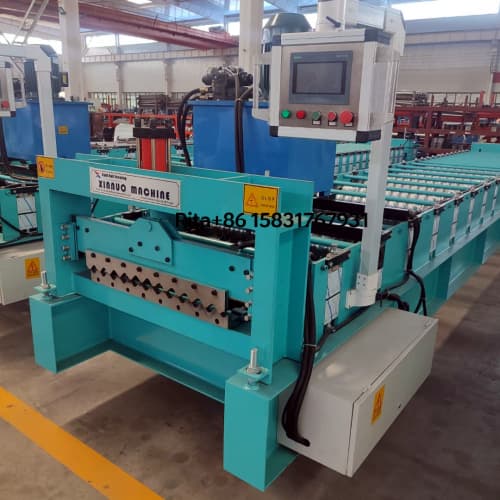

The forming main machine adopts medium plate integral welding frame, with high-hardness 45# chrome-plated arc forming rollers and solid 40Cr alloy main shaft. Multiple groups of special curved roller stations are arranged to complete the arc corrugated profile in one pass. The chain sprocket transmission mode guarantees smooth sheet conveying without slipping or jamming during continuous high-speed mass production.

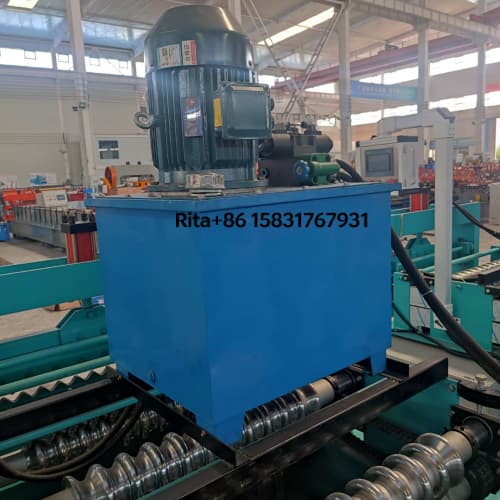

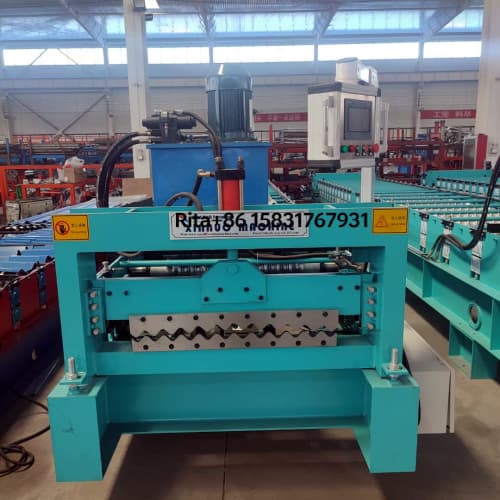

The matched hydraulic power station uses 46# anti-wear hydraulic oil, equipped with high-flow oil pump and cooling fan to keep stable hydraulic pressure under long-hour continuous cutting. The hydraulic cylinder adopts thickened wear-resistant sealing rings to prevent oil leakage and lower daily maintenance frequency, supporting stable high-speed hydraulic cutting for large-volume production.

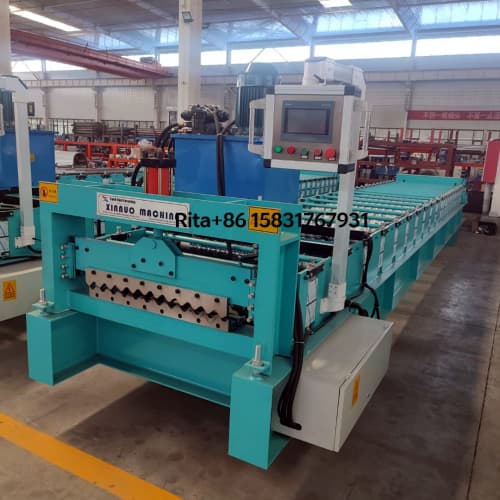

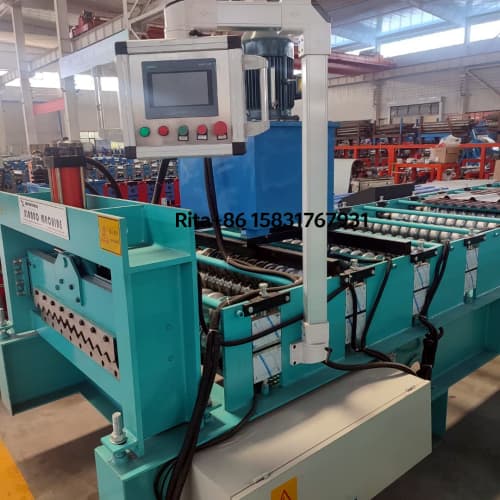

The whole production line is controlled by Taiwan Delta PLC system matched with Japan Omron encoder for precise length measurement, equipped with touch screen, frequency converter, emergency stop button and complete safety circuit protection components. Operators can set production length, running speed and daily output quantity on the touch screen; the system supports automatic cycle production, manual jog operation and fault self-diagnosis, realizing unmanned high-efficiency production.
| Parameter Item | Technical Specification |
|---|---|
| Certification Standard | CE, ISO 9001, TUV SÜD Certified |
| Processable Raw Material | Color steel coil, galvanized coil, aluminum alloy coil |
| Material Thickness Range | 0.3mm – 0.8mm |
| Feeding Coil Width | 914mm / 1000mm / 1220mm (customizable) |
| Working Production Speed | 8–13 Meters Per Minute |
| Cutting Tolerance | ±1mm |
| Main Drive Motor Power | 7.5KW |
| Hydraulic Station Power | 4KW |
| Cutting Blade Material | Cr12MoV Quenched Heat Treated Steel |
| Control System Configuration | Delta PLC + Omron Encoder + Touch Screen |
| Standard Working Voltage | 380V/50Hz/3Ph (415V customizable) |
| Total Machine Weight | About 9.2 Ton |
| Global Export Coverage | 145+ Countries & Regions Worldwide |
1. Global hot-selling arc roof panel forming equipment, wide market demand for arched metal building materials;
2. Ultra-high forming speed, supports large daily output to fulfill mass construction orders;
3. Full automatic integrated design, drastically reduce manual labor cost for long-term production;
4. Complete CE/ISO/TUV international certifications, smooth customs clearance for all overseas markets;
5. Wear-resistant arc forming rollers and stable hydraulic system, low failure rate and long service life;
6. Intelligent PLC touch screen control, simple operation, low worker skill threshold;
7. Rich overseas export experience, exported to 145 countries with mature global after-sales service system.
The arc-shaped corrugated roof panels produced by this Corrugated Roof Roll Forming Machine are widely applied in large-span factory workshops, agricultural breeding barns, stadiums, parking canopies, logistics warehouses, photovoltaic supporting buildings and rural self-built villas. For medium and large metal processing enterprises that pursue high production efficiency, high automation and labor cost saving, this arc metal roof forming machine is the most cost-effective long-term investment solution to boost factory output and reduce comprehensive operating costs.
