Corrugated Roof Roll Forming Machine For Metal Roof Sheet Production

Manufacturer Profile: Hebei Xinnuo Roll Forming Machine Co.,ltd

Hebei Xinnuo Roll Forming Machine Co.,ltd is a specialized manufacturer engaged in the R&D and production of cold roll forming equipment. Our complete product system covers all mainstream production demands of multiple industries, including roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines and other customized forming equipment. All our machines can perfectly match the manufacturing demands of construction engineering, new energy photovoltaic industry and warehousing storage sectors.

After long-term overseas market layout, Xinnuo’s full set of roll forming equipment has been exported to more than 145 countries and regions across the globe. Every production line wins consistent high recognition from global customers due to stable continuous operation performance and full-cycle professional after-sales service system. We strictly implement international quality control standards, and all core machines have obtained authoritative global certifications including CE, ISO and TUV SÜD, which effectively removes customs clearance obstacles for cross-border metal processing factory investors.

Product Introduction of Corrugated Roof Roll Forming Machine

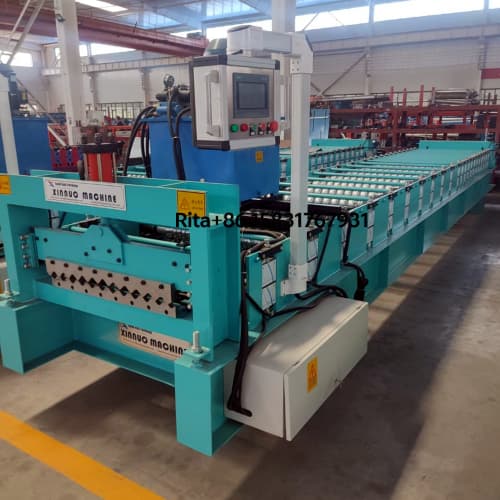

This Corrugated Roof Roll Forming Machine is a fully automatic integrated production line independently developed for manufacturing corrugated metal roof sheets. It can process color steel coils, galvanized steel strips and aluminum coils into standard corrugated roof panels, which are widely used in industrial workshops, agricultural breeding barns, prefabricated houses, photovoltaic supporting buildings and logistics warehouses. The whole production flow integrates raw material feeding, multi-pass roller profiling, hydraulic fixed-length cutting and intelligent length measurement as one unit, which greatly optimizes production efficiency and reduces manual operation links in daily mass production.

Core Selling Points: Global Popular, Ideal for High-Speed, Full-Auto & Large-Volume Producers

This corrugated metal roof panel forming machine has become a mainstream hot-selling model in the global building metal material market, with stable market demand in Southeast Asia, Africa, the Middle East, South America and Eastern Europe. It is specially designed for factory owners with three core production demands: ultra-high forming speed, full automatic operation and stable large daily output capacity. First of all, the machine adopts optimized roller layout and high-efficiency chain transmission structure, which significantly improves running speed to support continuous mass production. It can output a large number of finished corrugated roof sheets per day to meet bulk orders from engineering contractors and regional building material distributors.

Secondly, the full-automatic integrated configuration minimizes manual intervention throughout the whole production line. Only one operator can monitor the entire forming process, which effectively reduces long-term labor costs for metal processing factories. Thirdly, the machine is equipped with mature Delta PLC intelligent control system, supporting unattended continuous production, automatic length positioning, real-time fault alarm and production data storage, reaching the top automation standard among similar corrugated tile forming equipment. Xinnuo also provides one-stop supporting services for all purchasers, including factory layout planning, remote installation guidance, on-site technical training and lifelong supply of spare parts, completely solving production troubles for customers with large-volume manufacturing needs.

Main Structural Modules & Functional Description

1. Heavy-Duty Feeding Platform & Guiding Mechanism

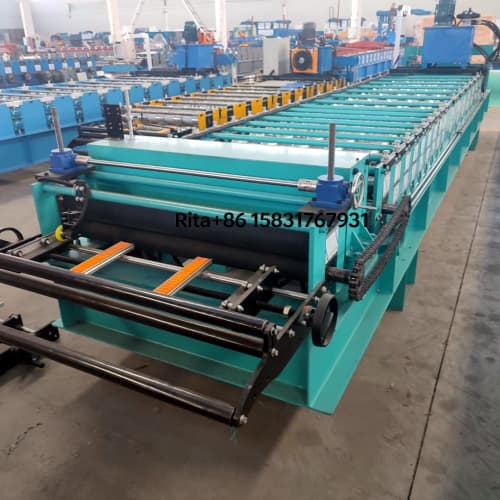

The front feeding section is equipped with double anti-scratch guide rollers and adjustable positioning baffles. It can fix raw metal strips tightly to avoid material deviation and surface scratches during conveying, ensuring uniform corrugation radian and consistent dimensional accuracy of finished roof panels. The thickened integral frame structure greatly enhances overall stability during long-hour high-speed continuous production.

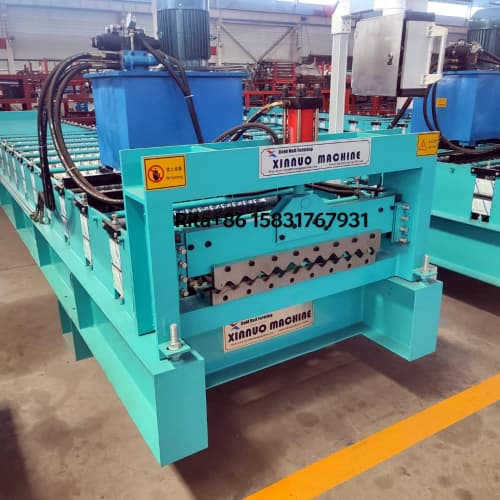

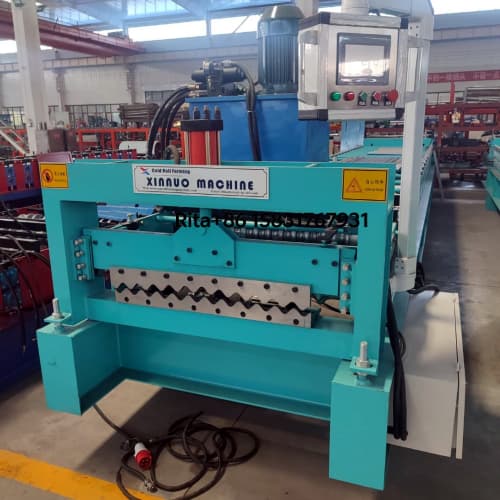

2. Corrugated Forming Main Host

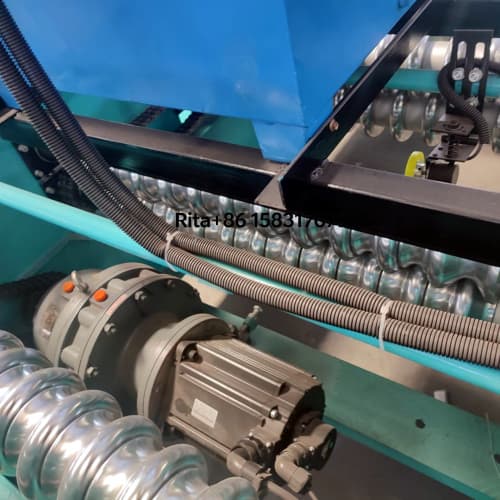

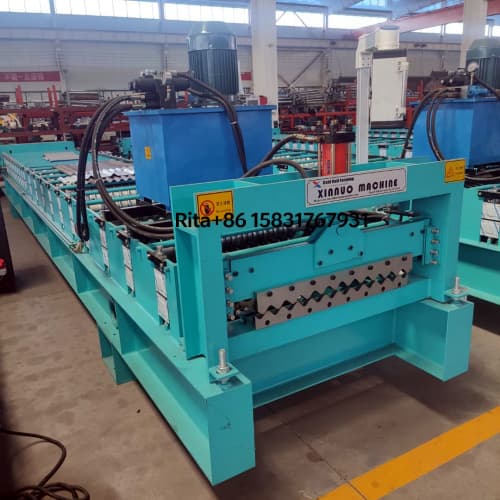

The forming main machine adopts medium plate welded frame, with high-hardness 45# chrome-plated corrugated forming rollers and solid 40Cr alloy main shaft. Multiple groups of profiling roller stations are arranged to complete standard corrugated patterns in one single pass. Chain sprocket transmission guarantees smooth sheet conveying without slipping or jamming under high-speed mass production conditions.

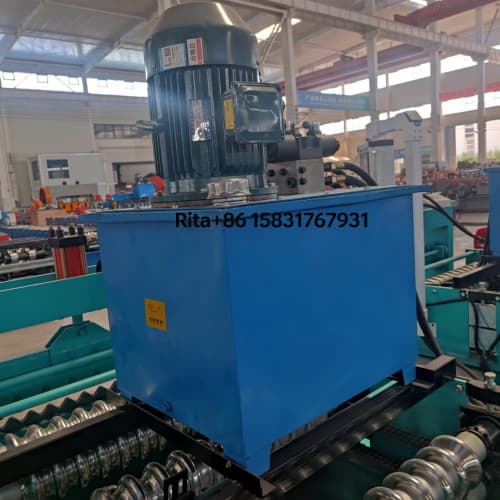

3. Independent Hydraulic Power Station

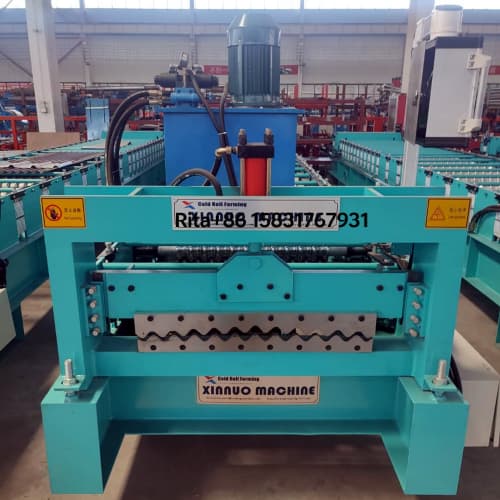

The matched independent hydraulic power station uses 46# anti-wear hydraulic oil, equipped with high-flow oil pump and cooling fan to maintain stable hydraulic pressure under long-time continuous cutting work. The hydraulic cylinder adopts thickened wear-resistant sealing rings to avoid oil leakage and lower daily maintenance frequency, supporting stable high-speed hydraulic cutting for large-volume production tasks.

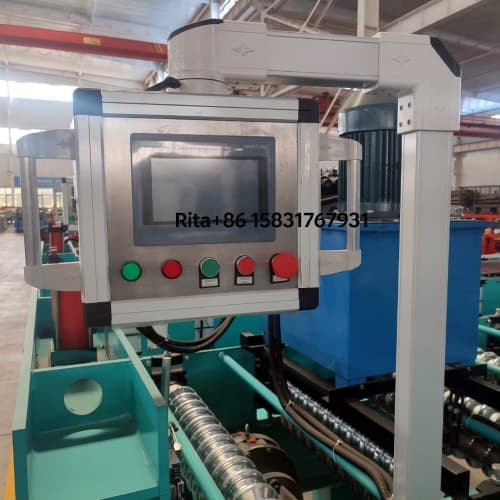

4. Intelligent PLC Electric Control Cabinet

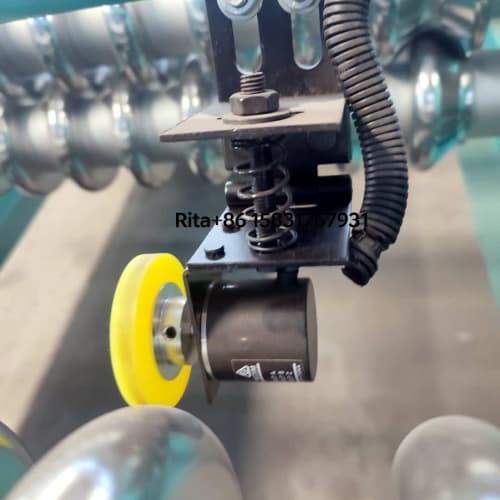

The whole production line is controlled by Taiwan Delta PLC system matched with Japan Omron encoder for precise real-time length measurement. It is equipped with touch screen, frequency converter, emergency stop button and complete safety circuit protection components. Operators can preset production length, running speed and target output quantity on the touch screen; the system supports automatic cycle production, manual jog operation and fault self-diagnosis, realizing fully unmanned high-efficiency production.

Complete Technical Parameter Table

Application Scenarios of Corrugated Metal Roof Panels

The corrugated metal roof sheets produced by this Corrugated Roof Roll Forming Machine are widely applied in large-span industrial factory buildings, agricultural livestock barns, rural self-built villas, temporary prefabricated houses, photovoltaic power station supporting structures, logistics storage warehouses and commercial parking awnings. For medium and large metal processing enterprises pursuing high production efficiency, full automation and large batch output, this corrugated metal roof panel forming machine is the most cost-effective long-term investment solution to boost factory production capacity and cut comprehensive operating costs.
