Global Popular Corrugated Roof Sheet Roll Forming Machine for Sale
Delivery time is: 45 working days.
Payment method:
TT,40% deposit, and the remaining balance shall be paid before delivery.
Warranty period : one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
whatsapp:+86 15831767931
Email:rita@hbxinnuorollforming.com
Hebei Xinnuo Roll Forming Machine Co.,ltd is a professional manufacturer focused on R&D and production of cold roll forming equipment. Our full product system covers diversified industrial demands, including roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines and customized forming devices. All equipment can perfectly match production needs of construction, new energy photovoltaic and warehousing industries.
Up to now, Xinnuo roll forming machinery has been exported to 145 countries and regions around the globe. Every production line gains consistent favorable feedback from overseas clients, thanks to stable running performance and full-cycle professional after-sales service. We strictly abide by international quality standards and hold CE, ISO and TUV SÜD authoritative certifications, which eliminates customs clearance obstacles for cross-border metal sheet processing investors.

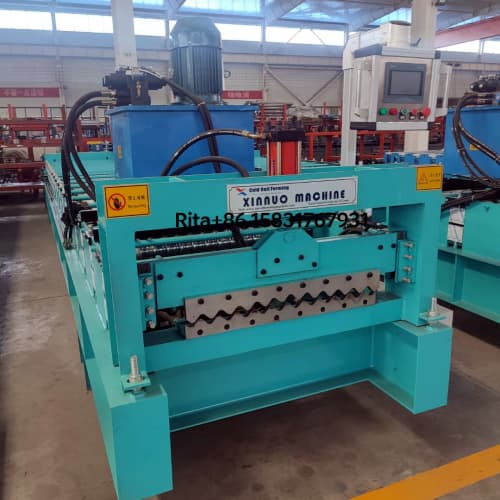

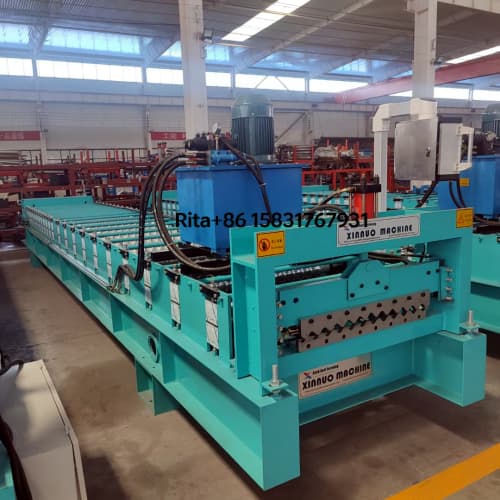

This global popular corrugated roof sheet roll forming machine is a fully automatic integrated production line independently developed by Xinnuo technical team. It is specially designed to process color steel, galvanized steel and aluminum coils into standard corrugated metal roof sheets. The whole line integrates raw material feeding, continuous roller profiling, hydraulic fixed-length cutting and intelligent length measuring as one compact unit, greatly simplifying production flow and lowering manual intervention frequency. It has become a mainstream forming machine for metal building material factories worldwide.
This corrugated roof sheet roll forming machine is extremely popular in global construction metal markets, widely recognized by factory owners in Southeast Asia, Africa, Middle East, South America and Eastern Europe. It is perfectly suitable for customers with four core demands: high production speed, labor cost reduction, full automatic operation and large daily output capacity.
First, optimized roller layout and high-efficiency chain transmission greatly boost forming speed, supporting stable mass production to fulfill bulk orders from engineering contractors and large distributors. Second, the fully automatic design cuts manual operation links sharply; only one operator can supervise the whole line, helping factories save long-term labor expenses. Third, complete intelligent control system supports unattended continuous running, automatic length positioning and real-time fault alarm, meeting strict high automation requirements of medium and large metal processing plants. Besides, Xinnuo provides one-stop services including factory layout suggestion, remote installation guidance, technical training and lifelong spare parts supply to solve all production troubles for mass production clients.

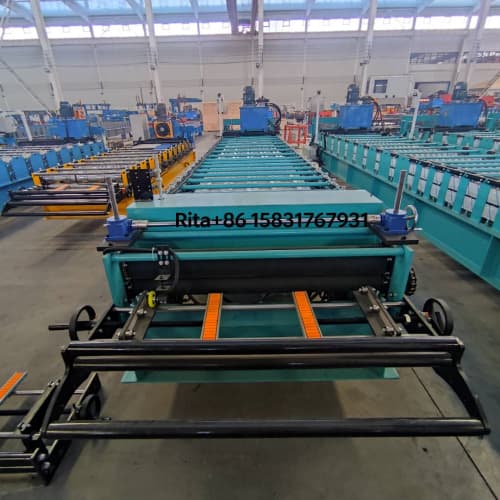

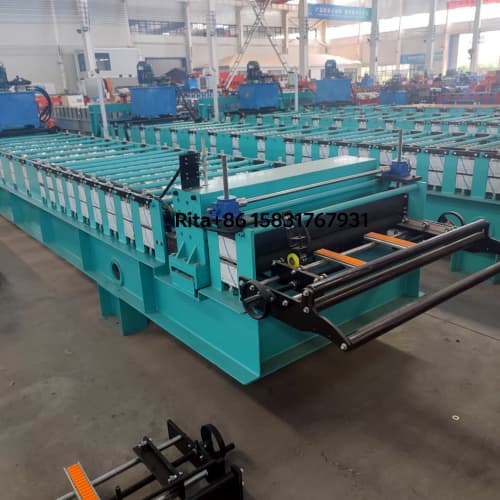

The front feeding section is equipped with double anti-scratch guide rollers and adjustable positioning baffles. It fixes raw metal strips tightly to avoid deviation and surface scratches, ensuring uniform corrugation and consistent size of finished roof panels. Thickened welded frame enhances stability during long-hour high-speed production.

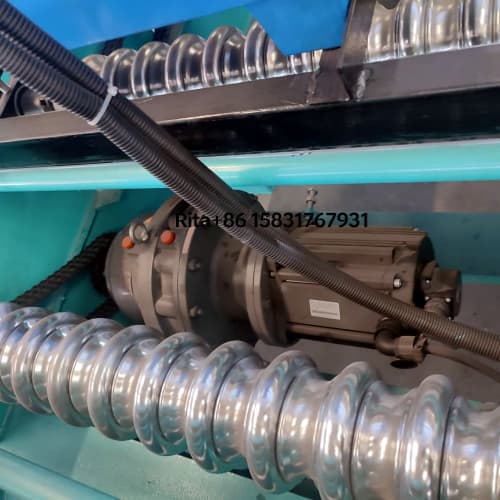

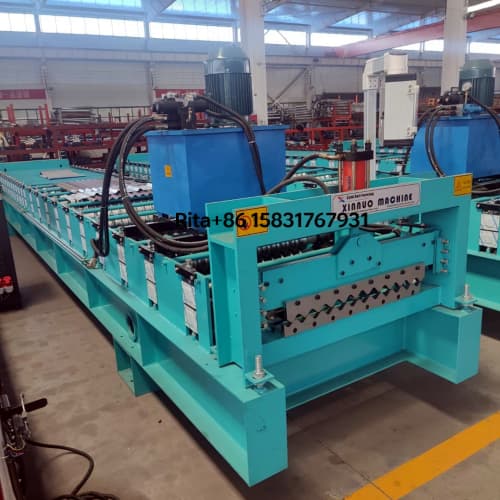

The forming host adopts medium plate integral welding frame, fitted with 45# chrome-plated wear-resistant forming rollers and solid 40Cr main shaft. Multiple profiling stations finish standard corrugated patterns in one pass. Chain sprocket transmission ensures smooth sheet conveying without slipping or jamming under heavy continuous workload.

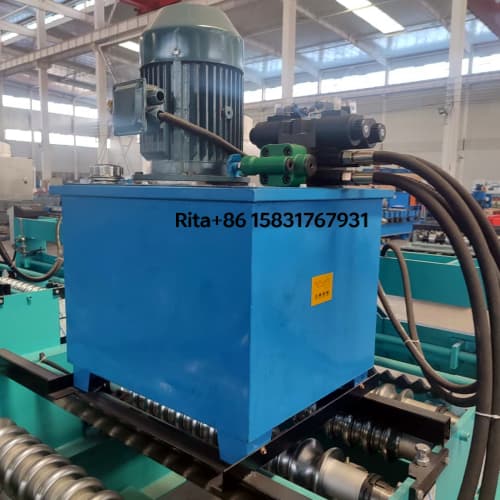

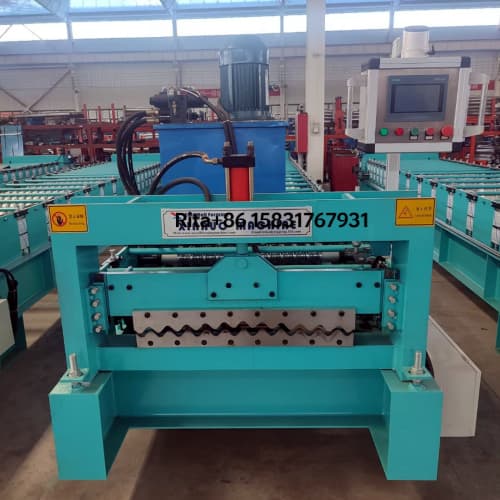

The matched hydraulic power station uses 46# anti-wear hydraulic oil, equipped with high-flow oil pump and cooling fan to keep stable hydraulic pressure during non-stop cutting. Thickened sealing rings on hydraulic cylinders effectively prevent oil leakage and reduce daily maintenance workload, suitable for long-time large-volume forming tasks.

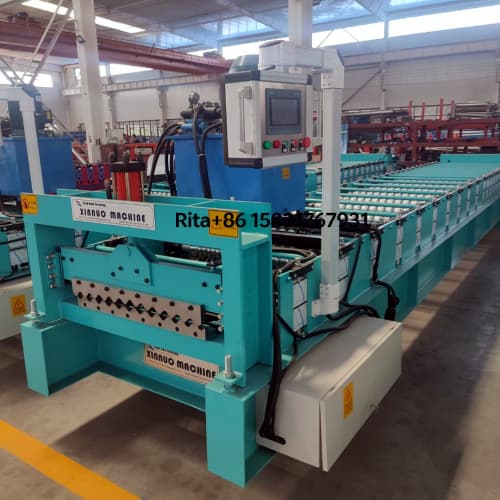

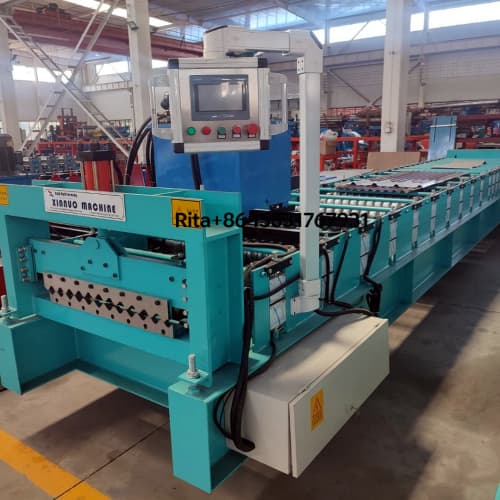

The whole production line is controlled by Taiwan Delta PLC system with Japan Omron encoder for precise length measurement. The control cabinet contains touch screen, frequency converter, emergency stop button and full safety protection components. Operators can set production length, running speed and output quantity on the touch panel; the system supports automatic cycle production, manual jog mode and fault self-diagnosis, realizing unmanned high-efficiency manufacturing.
| Parameter Item | Technical Specification |
|---|---|
| Certifications | CE, ISO 9001, TUV SÜD Certified |
| Processable Raw Material | Color steel coil, galvanized coil, aluminum coil |
| Material Thickness Range | 0.3mm – 0.8mm |
| Available Feeding Width | 914mm / 1000mm / 1220mm (customized) |
| Production Running Speed | 8 – 13 m/min |
| Cutting Precision Tolerance | ±1mm |
| Main Drive Motor Power | 7.5KW |
| Hydraulic Station Power | 4KW |
| Cutting Blade Material | Cr12MoV quenched alloy steel |
| Control System Configuration | Delta PLC + Omron Encoder + Touch Screen |
| Standard Working Voltage | 380V/50Hz/3Ph (415V customizable) |
| Total Machine Weight | Around 9 Ton |
| Global Export Scope | 145+ Countries & Regions |
1. Global hot-selling corrugated metal roof equipment with huge market demand worldwide;
2. Ultra-high forming speed to support large daily output and massive construction orders;
3. Full automatic integrated design to cut long-term labor costs for metal processing factories;
4. Complete CE, ISO and TUV SÜD certifications for smooth cross-border customs clearance;
5. Wear-resistant mechanical parts and stable hydraulic system with low failure rate;
6. User-friendly PLC touch screen control, low operation skill threshold for workers;
7. Rich overseas export experience and mature global after-sales service covering 145 markets.
The corrugated metal roof sheets produced by this roll forming machine are widely applied in large-span factory workshops, agricultural breeding barns, rural villas, temporary prefab houses, photovoltaic power supporting buildings and logistics warehouses. For metal processing enterprises that pursue high efficiency, full automation and large batch production, this globally popular corrugated roof sheet roll forming machine is the most cost-effective investment to improve production capacity and reduce comprehensive operation costs.
