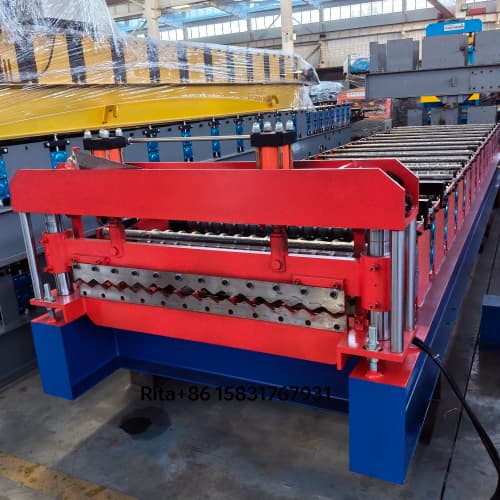

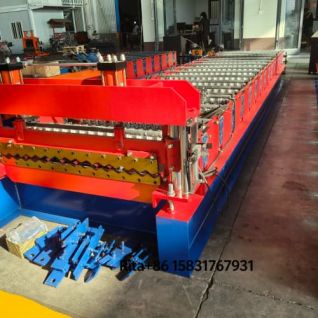

Product Overview
The Corrugated Roof Sheet Making Machine manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd is a high-performance, fully automatic metal tile roll former designed to meet the growing global demand for efficient, reliable, and cost-effective roofing sheet production. As a professional manufacturer in the field of cold roll forming equipment, Xinnuo has engineered this machine to deliver exceptional output quality while minimizing operational complexity and labor dependency.
This corrugated roof sheet making machine has gained immense popularity in markets worldwide, with Xinnuo's equipment currently exported to over 145 countries and regions. Builders, contractors, steel structure fabricators, and roofing material suppliers across Asia, Africa, South America, the Middle East, and Europe have chosen Xinnuo's corrugated sheet machines for their consistent performance, durability, and professional after-sales service.
Why Choose Xinnuo's Corrugated Roof Sheet Making Machine?
High Production Speed
Engineered for maximum throughput, this metal tile roll former operates at high forming speeds, enabling manufacturers to produce large volumes of corrugated roofing sheets within tight deadlines. Whether you are fulfilling bulk orders for commercial construction projects or maintaining a steady supply for distribution, this machine ensures your production line never becomes a bottleneck.
Significant Labor Cost Savings
In today's competitive manufacturing environment, reducing labor costs without compromising quality is essential. Xinnuo's corrugated roof sheet making machine features a fully automatic production process — from decoiler feeding, roll forming, and precision cutting to automatic stacking — requiring minimal manual intervention. This makes it an ideal choice for customers who want to maximize output while keeping workforce expenses low.
Full Automation & PLC Control
The machine is equipped with an advanced PLC (Programmable Logic Controller) electrical control system with a user-friendly touch-screen interface. Operators can easily set sheet length, quantity, and production parameters, while the system automatically manages forming speed, cutting position, and fault diagnostics. This high level of automation ensures repeatable precision and reduces the risk of human error.
Ideal for Large-Volume Production
For customers with high production volume requirements, this corrugated metal tile roll forming machine is built to run continuously with stable performance. Its robust structural design, precision-machined roller stations, and reliable hydraulic cutting system ensure consistent sheet quality across thousands of meters of production — shift after shift, day after day.
Globally Proven & Certified
Xinnuo strictly follows international quality standards. This corrugated roof sheet making machine has passed authoritative certifications including CE, ISO, and TUV SÜD, giving buyers confidence in its safety, reliability, and compliance with global trade regulations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Name | Corrugated Roof Sheet Making Machine / Metal Tile Roll Former |
| Raw Material | PPGI / GI Steel Coil (Color Coated / Galvanized) |
| Material Thickness | 0.3 – 0.8 mm |
| Forming Speed | 15 – 25 m/min (adjustable) |
| Roller Stations | 16 – 22 rows (depending on profile) |
| Roller Material | 45# Steel with Chrome Plating |
| Main Motor Power | 5.5 – 7.5 kW |
| Hydraulic Station Power | 4 kW |
| Cutting Type | Hydraulic Automatic Cutting (Flying Cut) |
| Cutting Material | Cr12 Mold Steel with Quenching Treatment |
| Control System | PLC Touch Screen (Delta / Mitsubishi / Siemens) |
| Voltage | 380V / 50Hz / 3-Phase (Customizable) |
| Machine Weight | Approx. 5,500 kg |
| Overall Dimensions | Approx. 12,000 × 1,500 × 1,600 mm (L×W×H) |
| Certifications | CE, ISO, TUV SÜD |
Machine Components
The complete corrugated roof sheet production line consists of the following main components:
- Manual / Hydraulic Decoiler — Unwinds the steel coil for continuous feeding
- Feeding & Guiding Device — Ensures accurate material alignment into the forming section

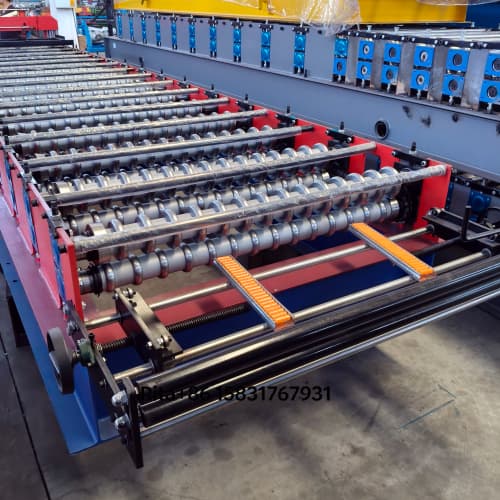

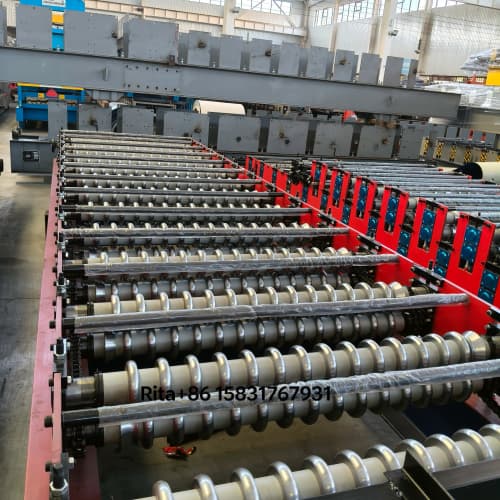

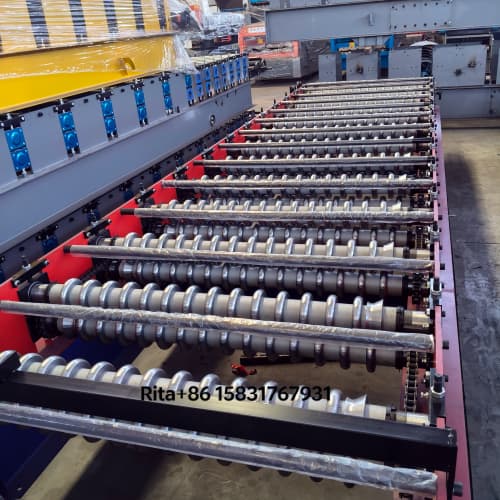

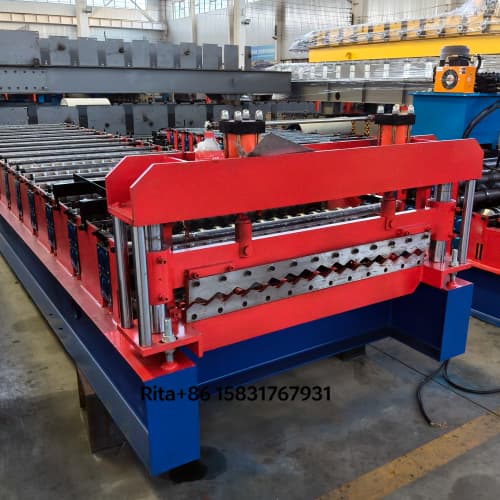

- Roll Forming Main Machine — Shapes the flat sheet into the corrugated profile through precision roller stations

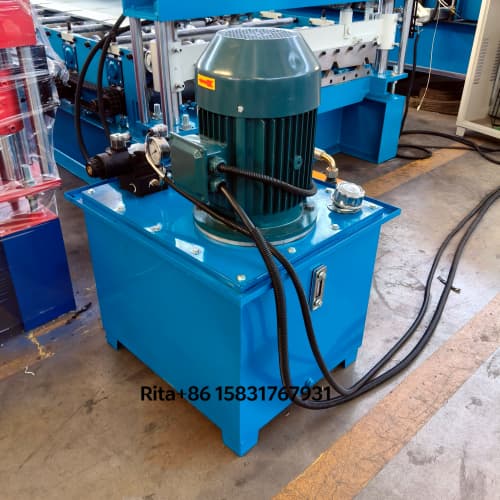

- Hydraulic Pump Station — Provides stable hydraulic power for the cutting system

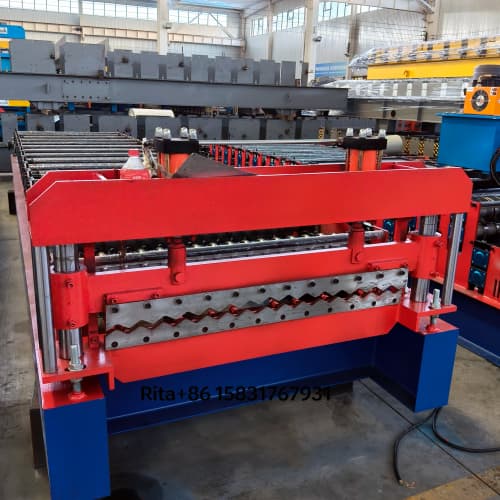

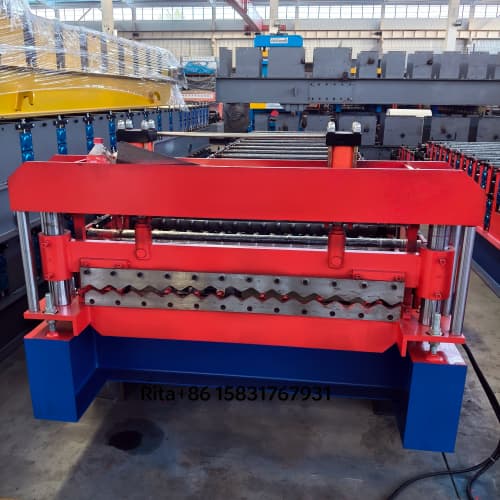

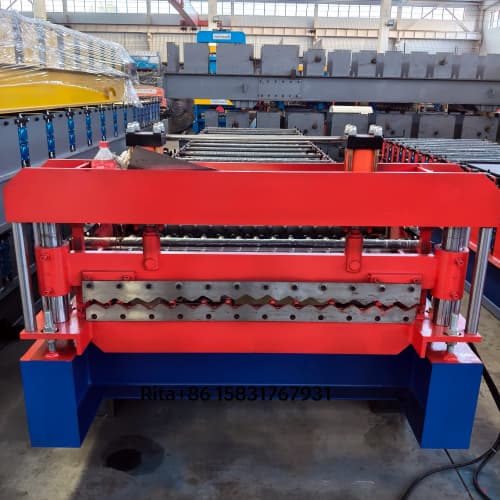

- Automatic Hydraulic Cutting System — Cuts formed sheets to the preset length with high precision
- Output Table / Auto Stacker — Collects finished corrugated roof panels

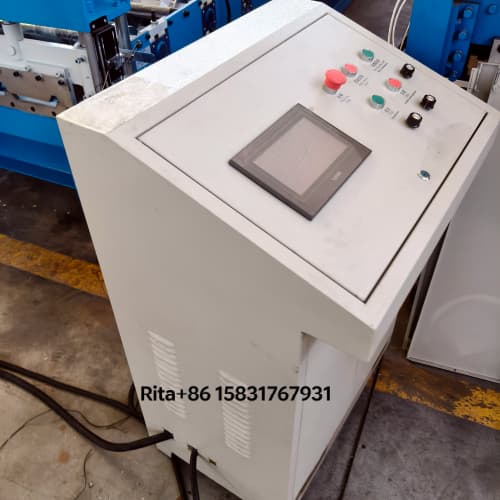

- PLC Electrical Control Cabinet — Centralized control for fully automatic operation
Applications
The corrugated metal roof panels produced by this machine are widely used in industrial warehouses, commercial buildings, residential housing, agricultural facilities, steel structure workshops, and prefabricated construction projects. The machine supports various corrugated profiles to meet diverse architectural and structural requirements across different markets.
About Hebei Xinnuo Roll Forming Machine Co., Ltd
As a professional manufacturer in the field of cold roll forming equipment, Xinnuo's product portfolio covers core industry needs including roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines, and more — accurately matching the production scenarios of fields such as construction, new energy, and warehousing.
At present, Xinnuo's equipment has been exported to 145 countries and regions around the world, winning wide acclaim from customers for its stable performance and professional service. The company strictly follows international quality standards and has passed authoritative certifications such as CE, ISO, and TUV SÜD.
Contact Us for a Free Quote
If you are looking for a reliable, high-speed, fully automatic corrugated roof sheet making machine that delivers large production volumes with minimal labor costs, Hebei Xinnuo is your trusted partner. Contact us today to discuss your specific requirements and receive a customized solution. [(doc_common_card_1)]
