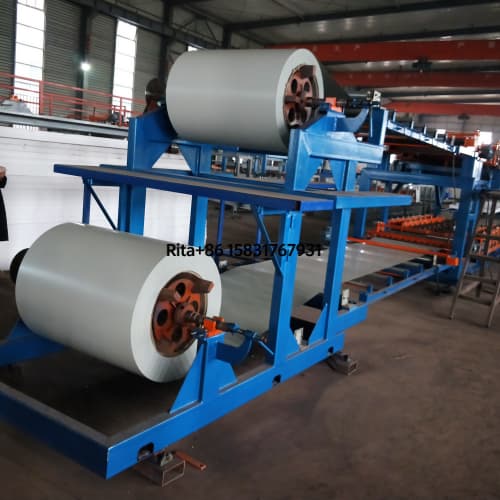

High Speed Z Lock Sandwich Panel Machine Line For Roof & Wall Insulated Panels

Hebei Xinnuo Roll Forming Machine Co., Ltd is a professional Chinese manufacturer specializing in full-series cold roll forming equipment R&D, production and global export. Our diversified machinery lineup can fully satisfy manufacturing demands across construction, new energy photovoltaic and logistics warehousing industries. Our product range covers roof roll forming machines, automatic C/Z purlin machines, various sandwich panel production lines, light steel keel machines, metal door forming machines, floor decking machines, cable tray lines, photovoltaic bracket forming lines, shelf column roll forming machines, metal slitting lines, cut-to-length lines, stone coated metal roof panel machines and metal embossing machines. Among all flagship equipment, the high speed Z lock sandwich panel machine line stands as our most popular waterproof interlock panel manufacturing device. This production line has gained huge popularity in the global building materials market, and it is an ideal low-threshold investment choice for novice entrepreneurs who want to start their own insulated panel factory with limited industry experience.

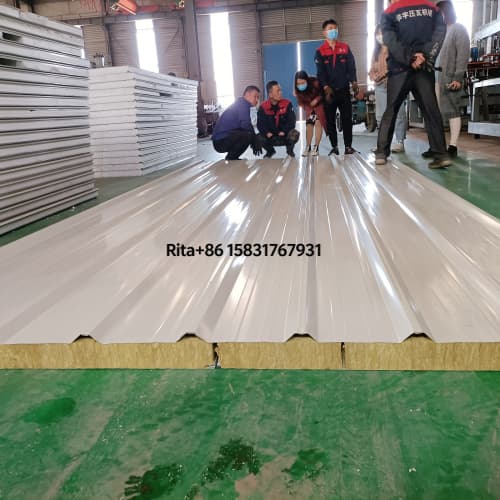

Unlike ordinary normal-lock sandwich panel equipment, our Z lock design forms tight interlocking seams between finished panels, delivering superior waterproof, wind-resistant and heat insulation performance for large-span industrial workshops, stadium roofs, logistics warehouses and prefabricated buildings. Global demand for Z lock insulated wall and roof panels keeps rising year by year, which means stable order sources for new investors. The whole high speed continuous production line greatly reduces manual operation costs and improves daily output, helping startup factory owners recover investment quickly with low operational risks. No matter you are a first-time investor or an existing building material manufacturer expanding production capacity, our high speed Z lock sandwich panel machine line can match your factory layout and profit targets perfectly.

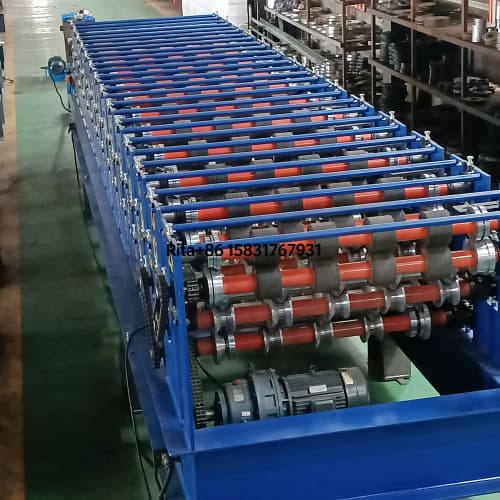

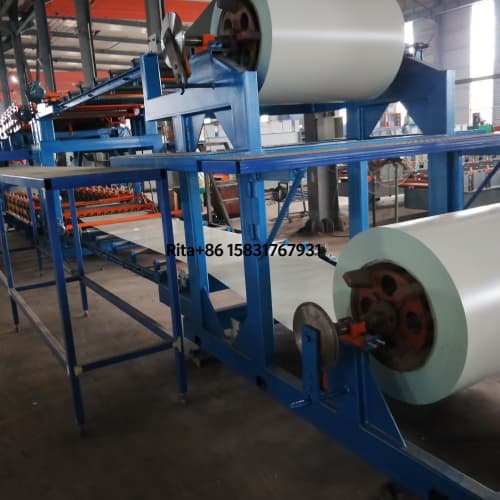

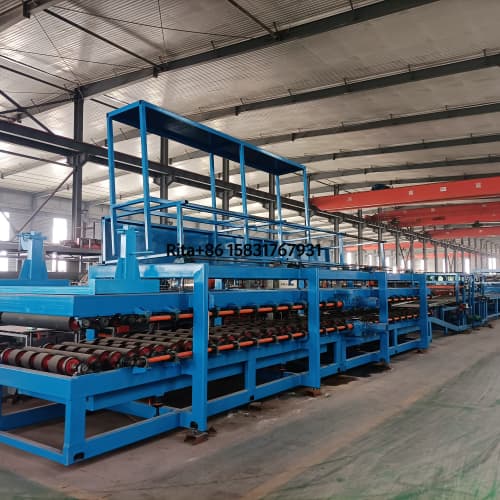

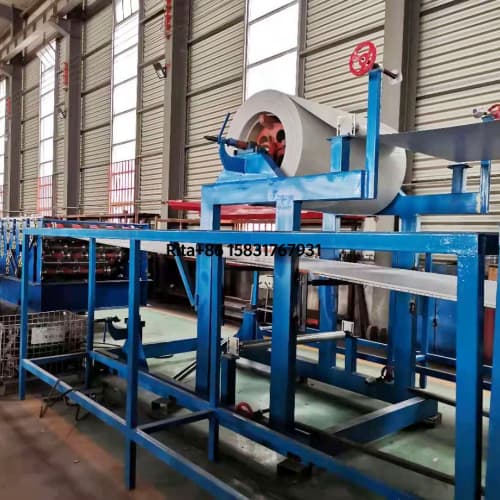

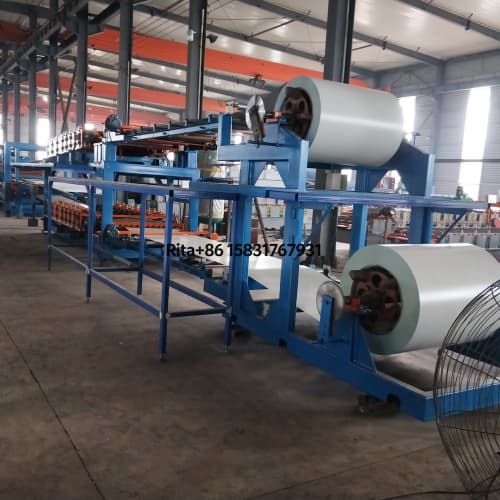

The integrated high speed Z lock sandwich panel machine line realizes one-stop automatic production flow including uncoiling, metal sheet leveling, precision Z-edge roll forming, foam filling, automatic glue coating, double-belt constant pressure curing, fixed-length cutting and finished panel stacking. The roll forming station adopts thickened wear-resistant alloy rollers, ensuring consistent Z interlock dimension without deformation under long-time continuous high-speed running. Customers can produce both wall panels and roof panels with one single production line, maximizing equipment utilization rate and product diversity for small and medium factories.

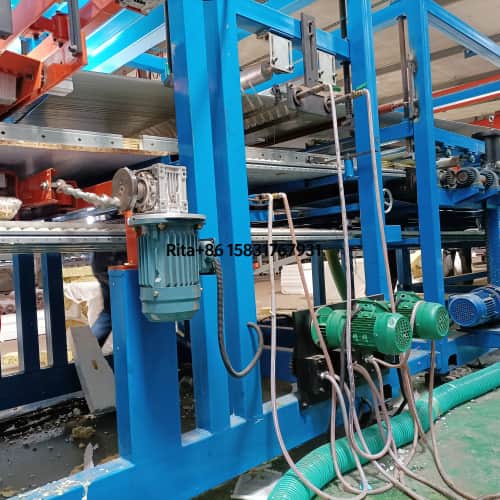

Equipped with independent calibrated PU glue spraying and dropping system, the line supports EPS, PU and rock wool core materials. Even glue distribution ensures strong bonding strength and stable thermal insulation of finished Z lock panels. Adjustable glue flow effectively cuts raw material waste and lowers daily production expenditure, a prominent advantage favored by countless new investors. Compared with low-efficiency semi-automatic equipment on the market, our high speed continuous line greatly lifts daily finished panel output, creating sustainable sales income for startup manufacturers all over the world.

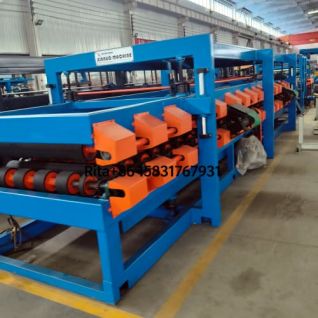

All production parameters of the Z lock sandwich panel machine line are uniformly controlled by intelligent electrical system with imported brand electrical components.

Operators can freely adjust panel width, thickness, running speed and cutting length through simple touch screen operations without complex mechanical training. Before shipment, every complete production line is fully assembled and run-tested in our factory workshop to eliminate hidden faults, so overseas customers can launch mass production smoothly after on-site installation. The machine main frame is constructed with thickened carbon steel through full welding and anti-rust treatment, resisting long-term load deformation and cutting later maintenance costs for new factory owners.

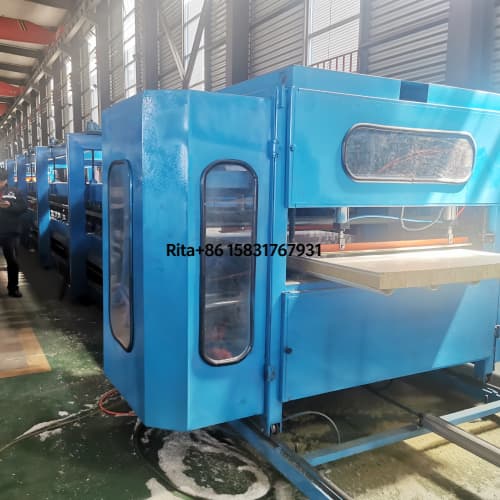

Matched high-speed hydraulic cutting equipment provides flat, burr-free panel incision without edge bending, making finished Z lock panels more competitive in local building material markets. We support full customized configuration of the production line according to customers’ factory area, target daily output and local mainstream panel specifications.

Hebei Xinnuo strictly abides by international quality management standards, and all high speed Z lock sandwich panel machine lines have passed authoritative CE, ISO and TUV SÜD certifications. Strict raw material inspection, semi-finished product monitoring and finished machine performance testing are implemented in every production link to guarantee stable and reliable equipment quality. Up to now, Xinnuo cold roll forming machinery including our hot-selling Z lock sandwich panel machine line has been exported to more than 145 countries and regions worldwide. Our stable equipment performance and all-round professional global service have won consistent high recognition from global buyers.

We provide full lifecycle one-stop support for every buyer of high speed Z lock sandwich panel machine line, including factory layout drawing design, overseas engineer on-site installation guidance, free operator technical training, 12-month full machine warranty and lifelong affordable spare parts supply. Our multilingual after-sales team offers timely remote video support to solve equipment operation problems rapidly. For new investors without relevant industry experience, our sales and technical team provide free market demand analysis, production line configuration recommendation and simple profit calculation guidance to help you smoothly step into the profitable insulated composite panel manufacturing industry.

If you are looking for high-efficiency, market-proven waterproof interlock panel production equipment with broad global sales prospects, our high speed Z lock sandwich panel machine line is your optimal investment option. Widely well-received across the whole international building materials industry and extremely friendly for novice investors, this PLC-controlled continuous production line will bring steady long-term economic benefits to your building materials enterprise.

Core Technical Parameters of Xinnuo High Speed Z Lock Sandwich Panel Machine Line
