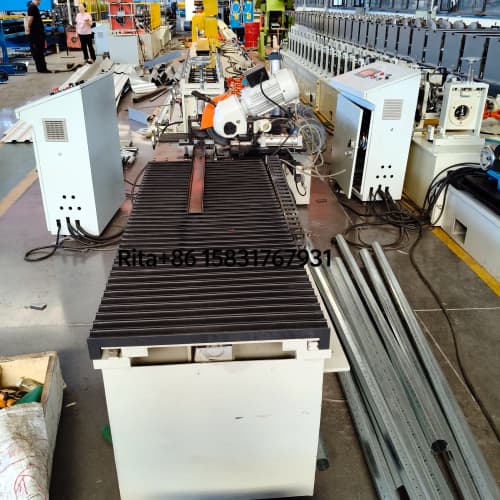

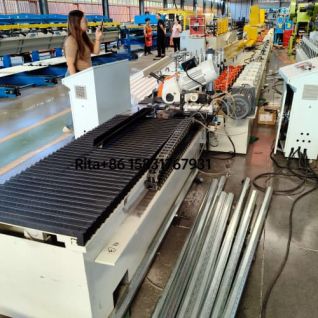

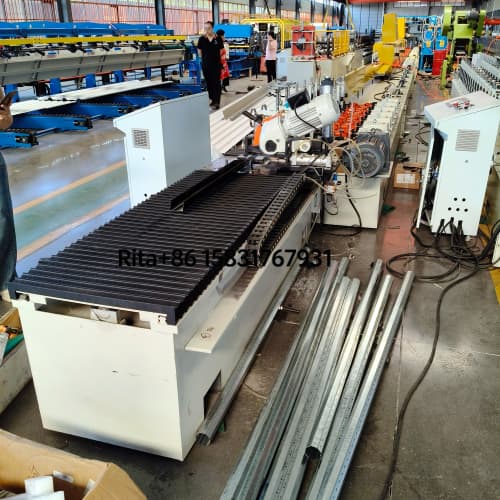

The PU Roller Shutter Door Machine is a high-performance automatic roll forming system designed for producing polyurethane-insulated roller shutter doors. Manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd., this machine combines advanced engineering with user-friendly operation, making it suitable for both experienced manufacturers and newcomers to the industry.

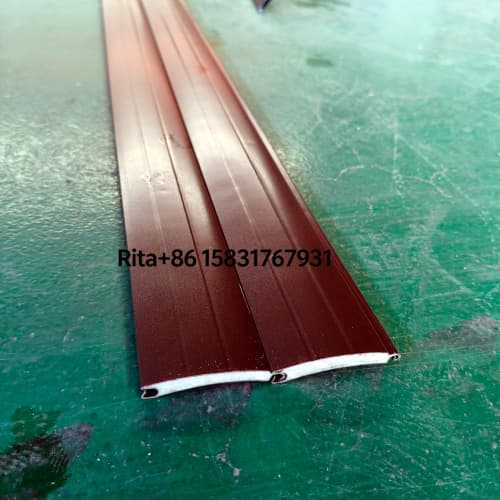

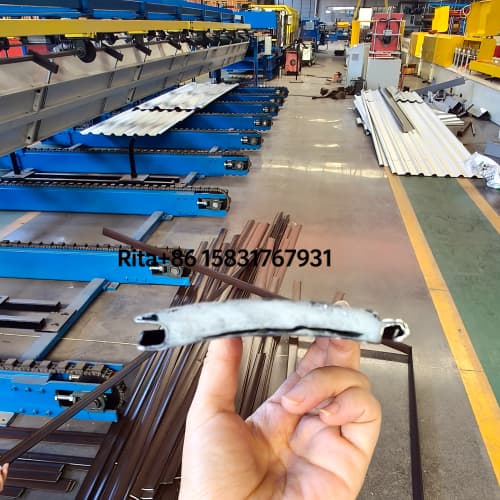

This machine produces PU foam-filled roller shutter panels that provide excellent thermal insulation, soundproofing, and energy savings. The polyurethane core ensures superior heat retention, making it ideal for cold storage facilities, warehouses, and climate-controlled environments.

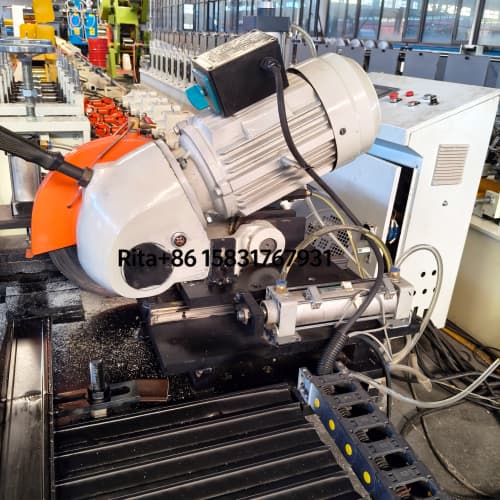

With a production speed of 8-12 meters per minute, this automatic system delivers consistent output while maintaining precision. The PLC-controlled operation ensures accurate cutting and forming with minimal human intervention.

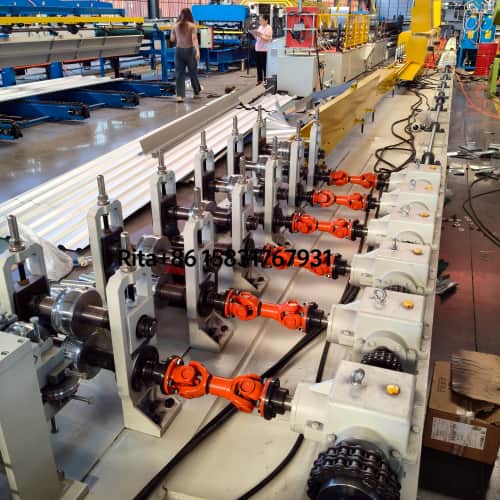

Built with high-quality materials including 45# carbon steel rollers and Cr12 cutting blades, the machine offers long service life and reliable performance. The robust 14mm steel side panels and 300mm H-beam frame provide stability during continuous operation.

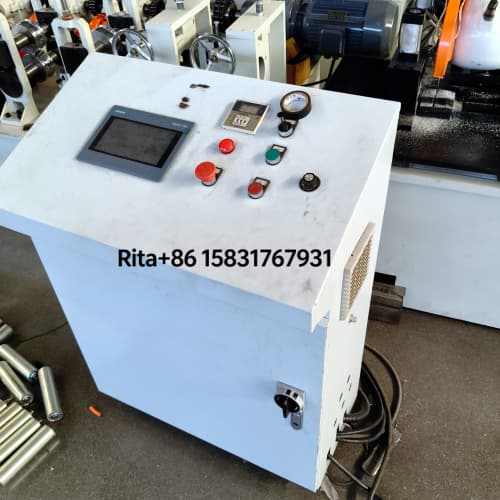

The computerized control system features programmable settings for panel length and quantity, with automatic and manual modes available. The user-friendly interface supports multiple languages including English, Chinese, Spanish, and Russian, making it accessible to operators worldwide.
The finished PU roller shutter doors roll up compactly, saving valuable building space compared to traditional swing doors. This makes them perfect for garages, workshops, distribution centers, and industrial facilities where space optimization is crucial.
| Parameter | Specification |
|---|---|
| Suitable Material | Color steel plate, galvanized sheet, aluminum coils |
| Material Thickness | 0.3-1.2mm |
| Feeding Width | 100-160mm |
| Production Speed | 8-12m/min |
| Roller Stations | 18-25 rows |
| Roller Material | 45# carbon steel with chrome plating |
| Roller Diameter | 42-70mm |

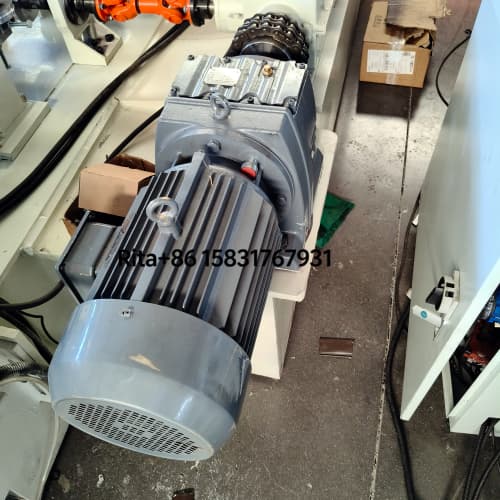

| Main Motor Power | 3-4kW |
| Hydraulic Motor Power | 3kW |
| Cutting Blade Material | Cr12 with quenching treatment |
| Control System | PLC with touch screen |
| Voltage | 380V, 50Hz, 3-phase (customizable) |
| Machine Frame | 300mm H-beam steel |
| Side Panel Thickness | 14mm steel plate |
| Processing Precision | Within ±1.00mm |
| Overall Dimensions | Approximately 7500×1500×1600mm |
| Total Weight | Approximately 2.5-3 tons |
The PU roller shutter doors produced by this machine are widely used in:
As a professional manufacturer in the cold roll forming equipment industry, Hebei Xinnuo Roll Forming Machine Co., Ltd. has established a strong reputation for quality and reliability. Our equipment has been exported to over 145 countries and regions worldwide, earning wide acclaim from customers for stable performance and professional service.
The company strictly follows international quality standards and has obtained authoritative certifications including CE, ISO, and TÜV SÜD. With a comprehensive product portfolio covering roof roll forming machines, C/Z purlin machines, sandwich panel production lines, and various specialized equipment, Xinnuo can accurately match diverse production scenarios in construction, new energy, warehousing, and other fields.
We provide complete technical support including installation guidance, operator training, and after-sales service. Our experienced technicians can be dispatched to your location for machine setup and troubleshooting. The machine comes with a 12-month warranty, and we offer lifelong technical support to ensure your continued success.
Inquiry → Confirm profile drawings and price → Confirm proforma invoice → Arrange deposit or L/C → Production and delivery
