Product Overview

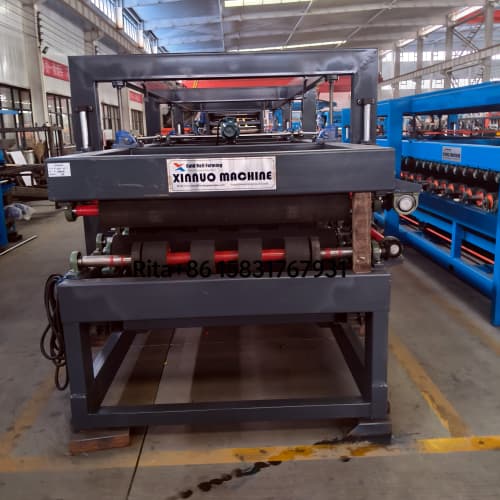

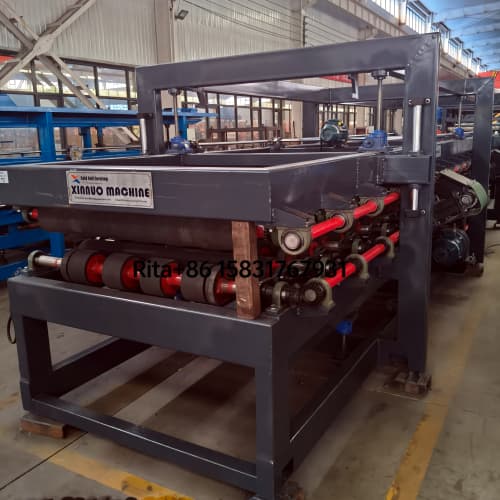

The Z Lock Sandwich Panel Machine for Roof Wall Panel manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd. is a fully automatic composite production line specifically engineered for manufacturing high-quality Z-lock profile insulated sandwich panels with PU, PIR, or EPS core materials. This machine line is designed to produce both roof panels and wall panels in one integrated system, making it a versatile and cost-effective solution for manufacturers targeting the global building materials market.

The Z-lock panel profile features a unique interlocking joint design that creates tight, seamless connections between adjacent panels during installation. This innovative design effectively eliminates thermal bridges, prevents water infiltration, enhances structural integrity, and delivers a clean, fastener-free exterior appearance. The hidden fastener system not only improves the aesthetic quality of the finished building but also significantly reduces the risk of leaks and improves wind uplift resistance. As a result, Z-lock sandwich panels have become one of the most widely adopted panel profiles in the global building materials market, with rapidly growing demand across industrial, commercial, and residential construction sectors worldwide.

Key Selling Points

1. Extremely Popular in the Global Building Materials Market

Z-lock sandwich panels have gained widespread recognition and popularity across international construction markets. Their interlocking design provides excellent weather resistance, thermal insulation, acoustic performance, and aesthetic appeal with clean, fastener-free exterior surfaces. These panels are in high demand for industrial factories, warehouses, cold storage facilities, commercial buildings, logistics centers, exhibition halls, and prefabricated structures across Europe, the Middle East, Southeast Asia, Africa, South America, and beyond. Manufacturers who invest in Z-lock panel production are well-positioned to serve both domestic and export markets with a product that enjoys strong global demand.

2. Ideal for New Investors

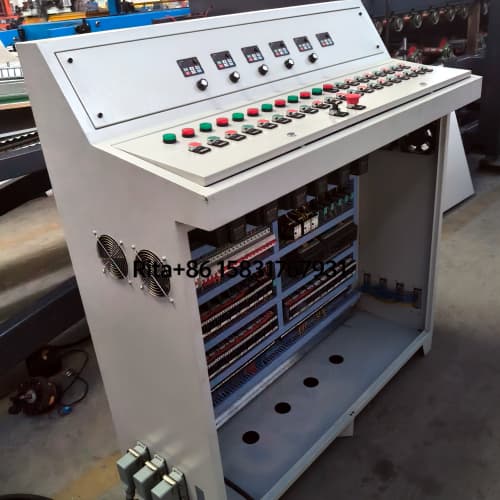

One of the most significant advantages of this machine line is its accessibility for new investors entering the insulated panel manufacturing industry. The PLC touch-screen control system features an intuitive, user-friendly interface that allows operators to set and adjust production parameters — including panel length, production speed, cutting position, and core thickness — with just a few simple steps. The entire production process is fully automated, requiring only a small number of operators to manage the line efficiently. Combined with comprehensive technical documentation, installation guidance, and full after-sales support from Xinnuo, new investors can achieve stable production output within a short learning period, significantly lowering the barrier to entry and accelerating return on investment.

3. Dual Application — Roof and Wall Panels

Unlike single-purpose machines, the Z Lock Sandwich Panel Machine for Roof Wall Panel is capable of producing both roof panels and wall panels on the same production line. The Z-lock profile is suitable for both applications, providing excellent water drainage performance for roofing and clean, seamless aesthetics for wall cladding. This dual capability allows manufacturers to serve a broader customer base and respond flexibly to different project requirements without the need for additional equipment.

4. Multi-Core Material Compatibility

The production line supports a wide range of core materials including EPS (Expanded Polystyrene), PU (Polyurethane), and PIR (Polyisocyanurate). This versatility allows manufacturers to diversify their product range and respond flexibly to different market demands, project specifications, fire resistance requirements, and climate conditions without requiring additional equipment investment. Whether customers need lightweight EPS panels for general construction or high-performance PIR panels for cold storage applications, this single machine line can handle the full spectrum of production needs.

5. Certified Quality and Global Trust

Hebei Xinnuo Roll Forming Machine Co., Ltd. has exported equipment to 145 countries and regions worldwide. The company strictly follows international quality standards and has passed authoritative certifications including CE, ISO, and TUV SÜD. Customers across the globe have recognized Xinnuo for its stable machine performance, professional service, and reliable technical support, making it a trusted partner for manufacturers at every scale.

Production Process Flow

The Z Lock Sandwich Panel Machine for Roof Wall Panel operates through a fully automated, continuous production sequence managed by the central PLC control system:

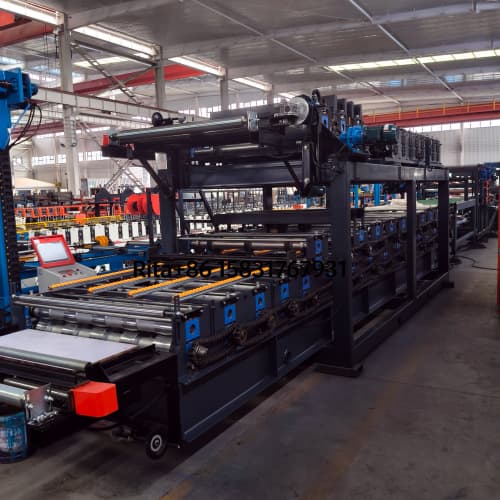

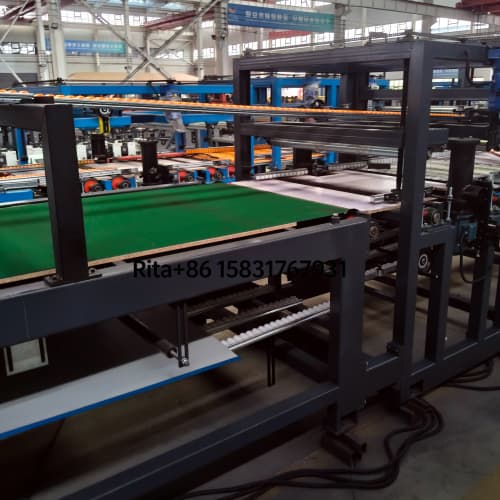

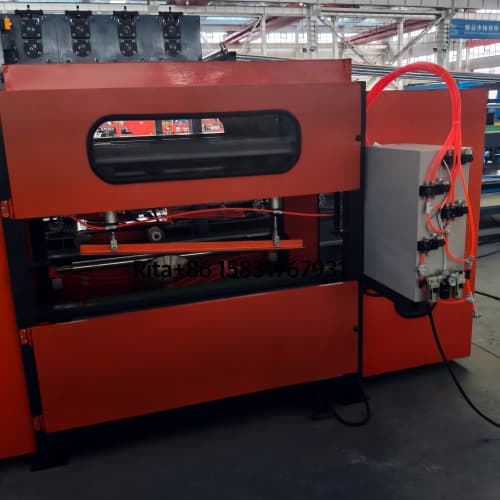

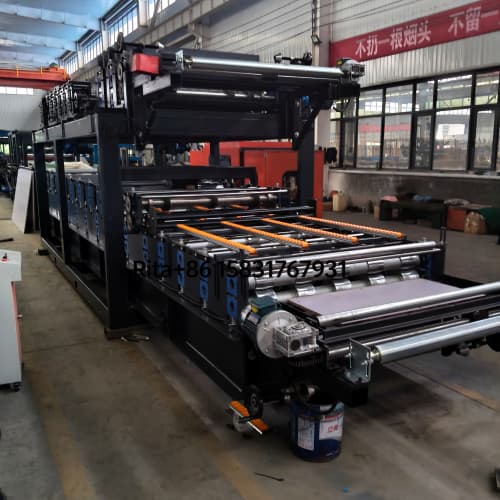

Decoiler / Material Feeding → Roll Forming → Glue Spraying & Dripping → Core Material Feeding → Composite Press → Heating & Bonding → Edge Trimming → Automatic Cutting → Panel Output

Each production stage is precisely synchronized through the PLC control system, ensuring uniform panel thickness, consistent adhesive distribution, accurate Z-lock profile formation, and precise cutting length throughout continuous high-speed operation. The touch-screen interface provides real-time monitoring of all production parameters, allowing operators to make instant adjustments and maintain optimal production conditions at all times.
