Z Lock Sandwich Panel Machine Line for Roof & Wall Panel
Delivery time is: 45 working days.
Payment method:
TT,40% deposit, and the remaining balance shall be paid before delivery.
Warranty period : one year from the date when the machine leaves the factory.
Voltage: It can be customized according to the local standard industrial voltage of customers.
whatsapp:+86 15831767931 +86 15194754069
Email:rita@hbxinnuorollforming.com

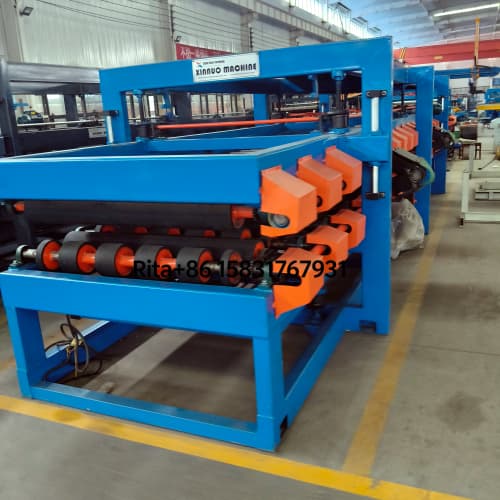

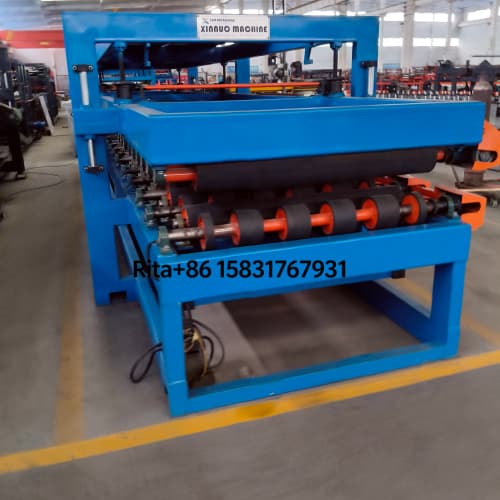

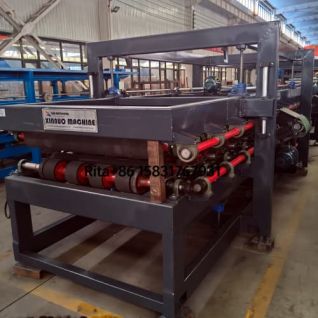

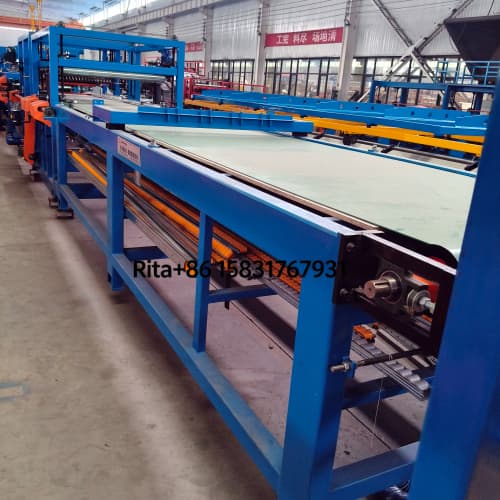

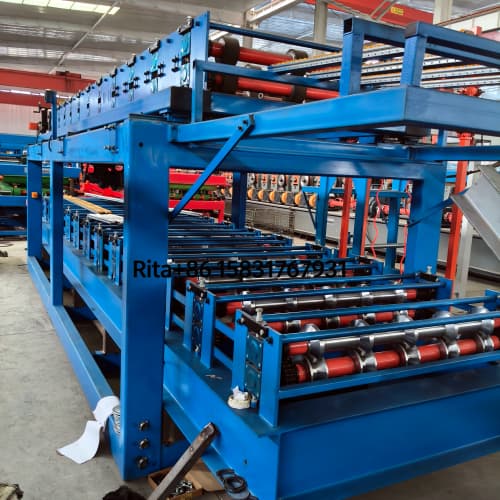

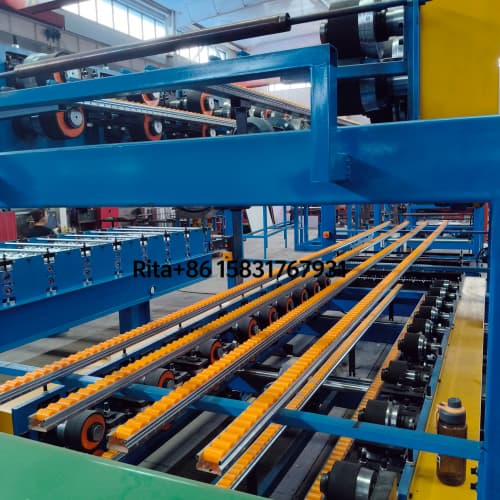

The Z Lock Sandwich Panel Machine Line for Roof & Wall Panel manufactured by Hebei Xinnuo Roll Forming Machine Co., Ltd. is a fully automatic production system designed for manufacturing high-quality Z-lock profile insulated sandwich panels used in both roofing and wall cladding applications. This machine line integrates decoiling, precision roll forming, automatic glue application, core material feeding, composite pressing, and computer-controlled cutting into one continuous and efficient production process.
The Z-lock panel profile features a unique interlocking joint design that creates tight and seamless connections between adjacent panels. This design effectively eliminates thermal bridges, prevents water infiltration, and enhances the overall structural strength of the building envelope. As a result, Z-lock sandwich panels have become one of the most popular choices in the global building materials market for both industrial and commercial construction projects.
Z-lock sandwich panels are widely recognized for their excellent interlocking performance, clean exterior appearance, and strong weather resistance. The hidden fastener design gives buildings a modern and professional look while improving wind resistance and sealing performance. These panels are in high demand across Europe, the Middle East, Southeast Asia, Africa, South America, and other international markets, making this machine line a strong choice for manufacturers targeting global customers.
The machine line is designed with ease of operation and production stability in mind. The PLC control system allows operators to set panel length, production speed, and cutting parameters through a clear touch-screen interface. For new investors, this means lower training costs, easier daily operation, and faster startup. Combined with Xinnuo’s technical support and after-sales service, customers can begin production with confidence even without extensive prior experience.
This production line produces Z-lock sandwich panels that can be used for both roof and wall panel systems. The strong interlocking structure provides good load-bearing performance, thermal insulation, and moisture protection, making the finished panels suitable for factories, warehouses, cold storage rooms, commercial buildings, logistics centers, and prefabricated construction projects.
The machine line supports multiple core materials including EPS, PU, PIR, and rock wool. This flexibility allows manufacturers to produce different types of insulated panels according to project requirements, climate conditions, fire resistance needs, and customer preferences, helping businesses expand their product range without purchasing additional production lines.
Hebei Xinnuo Roll Forming Machine Co., Ltd. has exported equipment to 145 countries and regions worldwide. The company strictly follows international quality standards and has passed authoritative certifications including CE, ISO, and TUV SÜD. Customers around the world have recognized Xinnuo for its stable machine performance, professional service, and reliable technical support.
The Z Lock Sandwich Panel Machine Line operates through a fully automated and continuous production sequence:

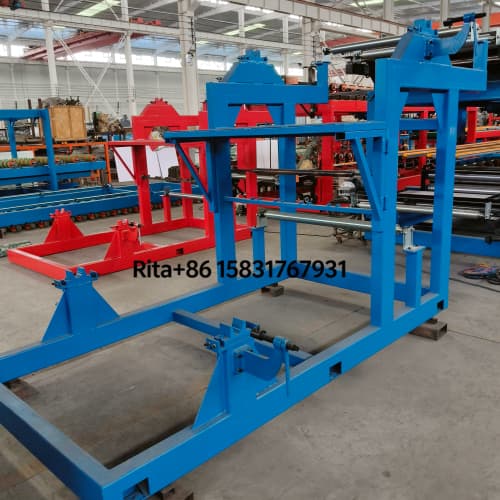

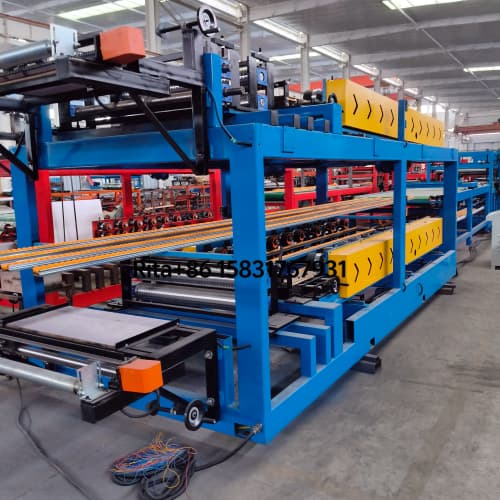

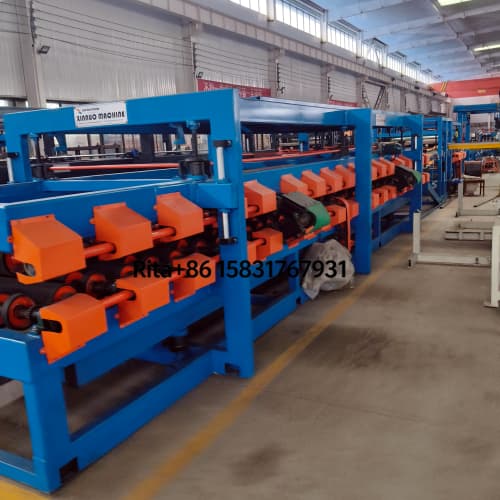

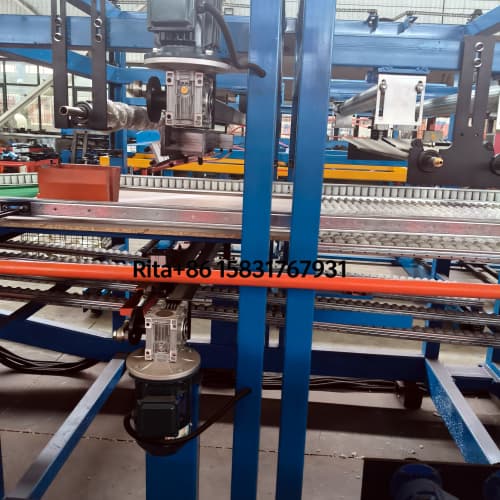

Decoiler → Material Loading → Roll Forming → Glue Spraying & Dripping → Core Material Feeding → Composite Main Press → Heating & Bonding → Edge Trimming → Automatic Cutting → Panel Output
Each production stage is precisely controlled and synchronized to ensure consistent panel thickness, uniform glue distribution, accurate Z-lock profile forming, and stable cutting performance throughout the entire production process.
| Item | Specification |
|---|---|
| Machine Type | Z Lock Sandwich Panel Machine Line for Roof & Wall Panel |
| Core Material | EPS / PU / PIR / Rock Wool |
| Steel Sheet Thickness | 0.3 – 0.8 mm |
| Core Thickness Range | 20 – 300 mm |
| Production Speed | 2 – 4.5 m/min (adjustable) |
| Total Power | Approx. 30 KW |
| Control System | PLC Automatic Control with Touch Screen |
| Voltage | 380V / 3 Phase / 50Hz (customizable) |
| Overall Dimensions | Approx. 35000 × 2500 × 2600 mm (L×W×H) |
| Total Weight | Approx. 25 Tons |
| Certification | CE / ISO / TUV SÜD |
Note: Technical parameters can be customized according to specific customer requirements. Please contact our sales team for detailed configuration options.
The Z-lock sandwich panels produced by this machine line are widely used in:
As a professional manufacturer in the field of cold roll forming equipment, Hebei Xinnuo Roll Forming Machine Co., Ltd. provides a wide range of machinery solutions for the construction, new energy, and warehousing industries. The company’s product portfolio includes roof roll forming machines, automatic C/Z purlin machines, sandwich panel production lines, light steel keel machines, door forming machines, floor decking machines, cable tray production lines, photovoltaic bracket production lines, shelf column lines, slitting lines, cut-to-length lines, colored stone coated roof panel production lines, metal embossing machines, and more.
At present, Xinnuo’s equipment has been exported to 145 countries and regions around the world, winning wide acclaim from customers for its stable performance and professional service. The company strictly follows international quality standards and has passed authoritative certifications including CE, ISO, and TUV SÜD.
