Fully Automatic Waterproof Z Interlock Composite Panel Production Line – Globally Popular Equipment For New Investors

Hebei Xinnuo Roll Forming Machine Co.,ltd is a professional manufacturer specializing in all types of cold roll forming equipment, launching our flagship Waterproof Z Lock Sandwich Panel Machine Line For Warehouse Prefab Building, a highly popular composite production machine sweeping the global building material market. This continuous automatic line is specially customized to produce interlocking waterproof Z-lock insulated panels, widely applied in prefabricated warehouses, steel structure workshops, logistics storage buildings and temporary construction enclosures. Featuring simple operation and low initial investment threshold, this equipment becomes the top choice for novice investors who plan to step into the insulated composite panel manufacturing business without rich industrial experience.

Xinnuo owns a complete product matrix covering roof roll forming machines, C/Z purlin machines, light steel keel lines, cable tray equipment, photovoltaic bracket forming machines, slitting and cut-to-length lines as well as stone coated metal roof panel machines. Our technical team combines mature cold bending molding technology and waterproof composite craft to develop this Z lock sandwich panel line, perfectly meeting manufacturing demands of construction, new energy and warehousing industries. All Xinnuo roll forming machines including this waterproof composite panel line have been exported to 145 countries and regions worldwide. Clients across Southeast Asia, Middle East, Africa, Europe and Latin America speak highly of our machines for stable running performance and full-cycle professional after-sales service. Every production process follows international quality standards, and the whole line has obtained CE, ISO and TUV SÜD authoritative certifications to support global export trade.

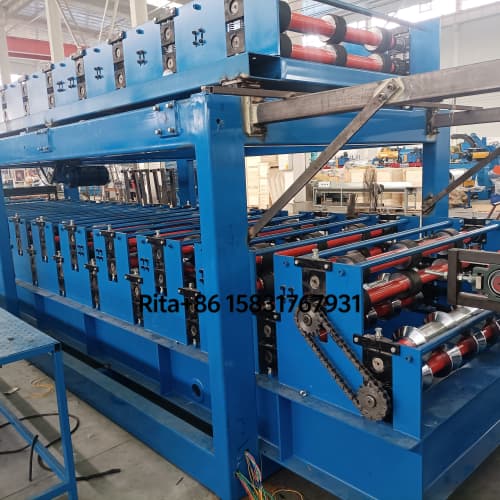

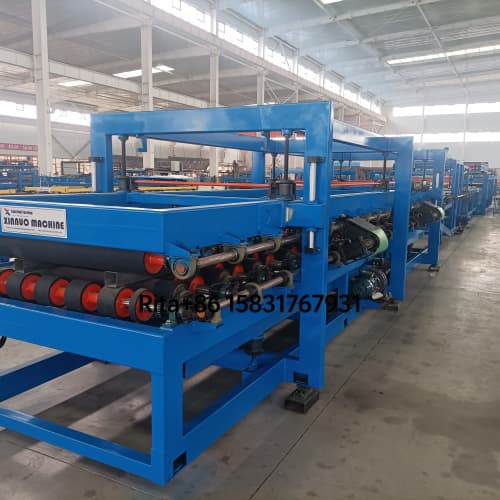

The core roll forming machine unit realizes exclusive Z interlock molding structure, the key design for excellent waterproof performance of finished panels. Thickened heat-treated alloy forming rollers effectively avoid surface scratch, metal deformation and loose lock joint during long-hour continuous production. Each forming stand is equipped with frequency conversion speed regulators, connected to central PLC touch screen for one-click adjustment of panel width, molding speed and lock tightness. The roll forming system runs with low noise and low abrasion, largely cutting daily maintenance workload, which greatly benefits new investors without full-time professional maintenance workers. Panels produced by this line feature tight Z-lock splicing without extra waterproof sealing strips, greatly reducing on-site installation time and preventing rainwater penetration for warehouse roof and wall systems.

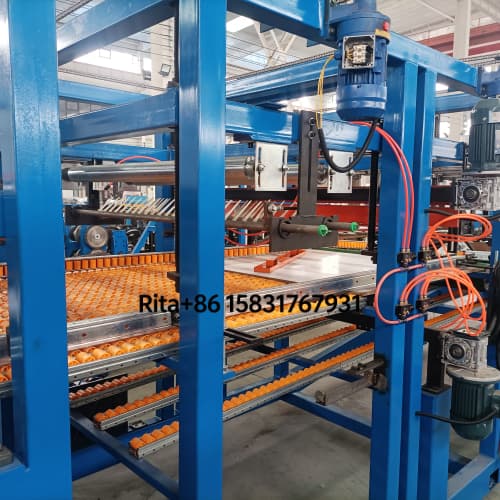

Equipped with independent integrated glue spraying and glue dropping system, this waterproof Z lock panel line delivers even, stable adhesive coating on metal inner skins and EPS/rock wool core materials. Constant temperature glue supply tank prevents glue solidification under low-temperature workshop environment, ensuring high bonding strength between color steel, galvanized steel, aluminum sheet and insulation cores. Operators can accurately adjust glue output volume via digital touch screen, cutting raw material waste and lowering per-square production cost, a critical cost-saving advantage for startup factories with tight budgets.

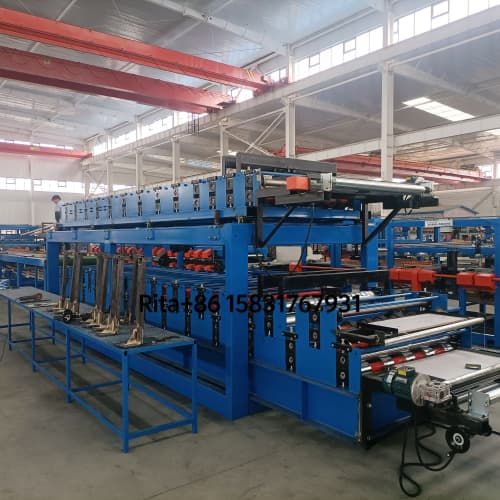

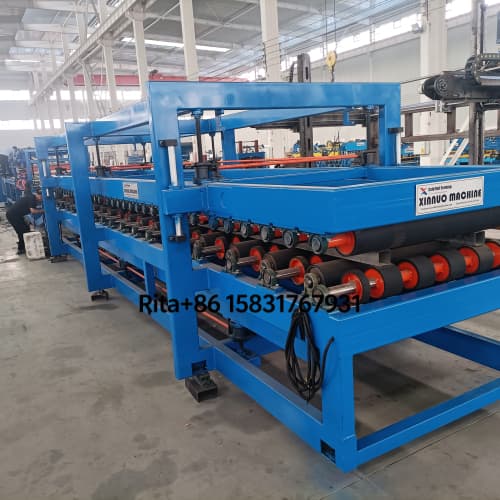

The whole production workflow operates fully automatically without frequent manual material transfer. Metal coils are stably placed on front feeding rack for uninterrupted long-shift production. After leveling and edge trimming, metal strips enter the roll forming station to complete waterproof Z lock molding. Materials then pass through the glue spraying and dropping section for uniform adhesive distribution, and are compounded with rock wool or EPS insulation layers under constant-pressure composite rollers. Finally, semi-finished panels are conveyed to hydraulic cutting equipment for fixed-length cutting based on customized client requirements.

The supporting hydraulic cutting equipment adopts wear-resistant alloy blades and high-precision digital length sensors, controlling cutting tolerance within ±0.5mm. It supports continuous cutting of thick rock wool composite panels without frequent blade replacement. After cutting, finished waterproof Z lock panels slide out automatically through output platform, requiring zero secondary manual trimming to save labor cost. The cutting unit synchronizes speed with front forming and gluing modules under unified PLC control, avoiding material waste and production shutdown caused by asynchronous operation.

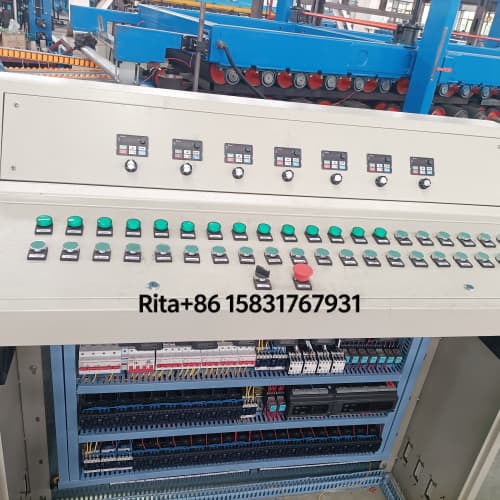

This Waterproof Z Lock Sandwich Panel Machine Line enjoys huge popularity across global building material markets, with obvious advantages for novice investors. The entire line adopts PLC intelligent touch screen centralized control; all production parameters can be set on one single operation panel, requiring only 1 to 2 ordinary workers to run the whole production line. Xinnuo provides complete turnkey services for new investors, including factory layout drawing design, overseas engineer installation guidance, staff operation training and lifelong remote technical support, solving all technical troubles for first-time panel manufacturers.

Strict quality control is implemented throughout production, matching international industrial standards with CE, ISO and TUV SÜD certifications same as all Xinnuo cold roll forming equipment. Famous brand electrical core components guarantee long-term stable operation, effectively reducing unexpected breakdown downtime and production loss for newly built factories. The line supports customizable panel thickness from 50mm to 200mm, covering mainstream specifications of prefab warehouse insulation wall panels, rainproof roof panels and logistics storage enclosure boards. Rock wool filled panels reach Class A fireproof standard, while EPS core panels provide lightweight and cost-effective thermal insulation for ordinary warehouse projects.

For novice investors with limited initial capital, Xinnuo supplies flexible configuration plans: standard basic line for small-batch trial production and upgraded high-speed line for mass production. Compared with high-cost imported composite panel equipment, Xinnuo factory direct sales balance stable quality and competitive price, helping new investors recover investment within a short production cycle. Whether you are a new entrepreneur entering prefab building panel industry or an existing manufacturer expanding waterproof panel production capacity, our Waterproof Z Lock Sandwich Panel Machine Line For Warehouse Prefab Building is your reliable automatic production solution with global market recognition, easy operation, low maintenance and full one-stop technical support from Hebei Xinnuo Roll Forming Machine Co.,ltd.

Main Technical Specifications of Waterproof Z Lock Sandwich Panel Machine Line
